ID
1360649
$ 39.86
1-2 weeks delivery time
-
+
The Barton N01151 is a Size 1 single upright block with integrated fairlead and a 30 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing 70 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it suitable for fixed-position line control with guided rope alignment.
- Description
- Ask a Question
-

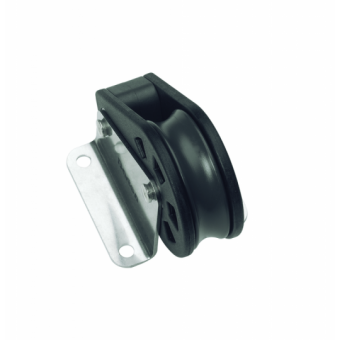

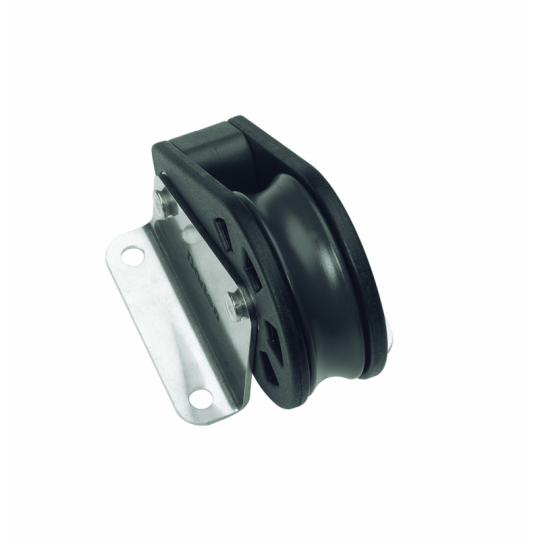

Barton N01151 - Single Upright Block with Fairlead Size 1 30mm – Plain Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N01151 Single Upright Block with Fairlead is part of the Size 1 (30 mm) range, featuring a plain bearing sheave and an internal steel frame for enhanced strength and durability. The integrated fairlead ensures controlled rope guidance and prevents line misalignment during operation.
The upright design allows secure mounting on decks, masts, or booms, making it ideal for fixed-position control systems. The plain bearing system is optimized for high load capacity and controlled adjustment, providing dependable performance in a wide range of sailing applications :contentReference[oaicite:0]{index=0}.
Key Features
- Single sheave upright block with integrated fairlead
- Internal steel frame for increased strength and durability
- Plain bearing system for high load applications
- Fairlead for controlled line guidance
- Designed for deck, mast, or boom installation
- Robust construction – 70 g
Technical Specifications
Part Number N01151 Block Type Single Upright with Fairlead Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 70 g Dimensions 65 × 47 × 44 mm
Applications
- Deck-mounted control line routing with guided alignment
- Mast and boom installations
- Fixed-position line management systems
- Dinghies, dayboats, and larger sailing vessels
The Barton Size 1 plain bearing upright blocks with fairlead are engineered for secure mounting, precise line guidance, and dependable performance, ensuring efficient operation in fixed rigging systems.
-
