The Barton N01150 is a Size 1 single upright block with a 30 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing 63 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it suitable for fixed-position line control on deck, mast, or boom.
- Description
- Ask a Question
-

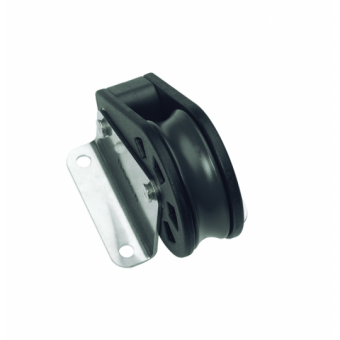

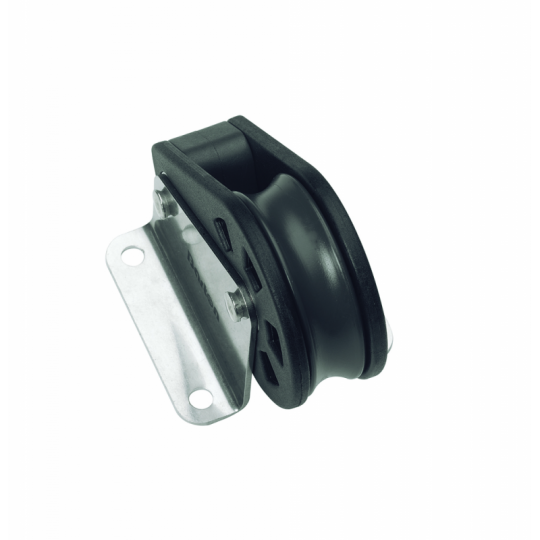

Barton N01150 - Single Upright Block Size 1 30mm – Plain Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N01150 Single Upright Block is part of the Size 1 (30 mm) range, featuring a plain bearing sheave and an internal steel frame for enhanced strength and durability. The upright design allows the block to be securely mounted to flat surfaces such as decks, masts, or booms.
The plain bearing system is optimized for high load capacity and controlled adjustment, making this block ideal for fixed-position control lines. It is widely used on dinghies, dayboats, and larger sailing vessels for efficient and reliable line routing.
Key Features
- Single sheave upright block for fixed mounting
- Internal steel frame for increased strength and durability
- Plain bearing system for high load applications
- Designed for deck, mast, or boom installation
- Robust construction – 63 g
Technical Specifications
Part Number N01150 Block Type Single Upright Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 63 g Dimensions 52 × 47 × 44 mm
Applications
- Deck-mounted control line routing
- Mast and boom installations
- Fixed-position line guidance
- Dinghies, dayboats, and larger sailing vessels
The Barton Size 1 plain bearing upright blocks are engineered for secure mounting and dependable performance, providing efficient line control in fixed rigging applications.
-
