The Barton N10110 is a Size 0 single fixed eye block with a 20 mm sheave and ball bearing system, designed for ropes up to 6 mm. Weighing only 13 g, it delivers smooth low-friction operation with a working load of 275 kg and break load of 550 kg, ideal for dinghies and light-duty running rigging.
- Description
- Ask a Question
-

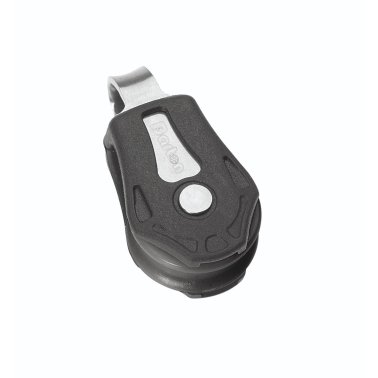

Barton N10110 – Single Fixed Eye Block Size 0 20mm, Ball Bearing, Ø20mm Sheave, Max Rope 6mm
The Barton N10110 Single Fixed Eye Block is part of the Size 0 (20 mm) range, featuring a ball bearing sheave designed for smooth, low-friction performance in dynamic sailing applications. Its lightweight construction combined with efficient load handling makes it ideal for high-speed line adjustments.
Engineered for dinghies, day boats, and small craft, this block is also suitable for lead systems, flag lines, and other light-duty rigging applications on larger yachts where precision and responsiveness are required.
Key Features
- Single sheave block with fixed eye attachment
- Ball bearing system for reduced friction and smooth operation
- Ultra-lightweight design – only 13 g
- Compact and durable construction
- Ideal for frequently adjusted control lines
Technical Specifications
Part Number N10110 Block Type Single Fixed Eye Size Size 0 (20 mm) Sheave Diameter 20 mm x 8 mm (25/32" x 5/16") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 6 mm (1/4") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Max Rolling Load 130 kg (286 lbs) Weight 13 g Dimensions 39 × 21 × 16 mm
Applications
- Dinghies and racing day boats
- Mainsheet and control line systems
- Flag halyards and light-duty rigging
- Low-load applications on larger yachts
The Barton Size 0 ball bearing block range is optimized for fast, repeated adjustments, offering reduced friction and enhanced handling performance in demanding sailing conditions.
-
