ID
1360847
$ 72.62
1-2 weeks delivery time
-
+
The Barton N13430 is a Size 3 fiddle block with swivel shackle and ball bearing sheaves (30/58 mm), designed for ropes up to 10 mm. Weighing 151 g, it delivers smooth low-friction performance with a safe working load of 400 kg, break load of 800 kg, and maximum rolling load of 270 kg. The swivel allows free alignment under load, making it ideal for dynamic multi-purchase systems on dinghies and small cruising yachts.
- Description
- Ask a Question
-

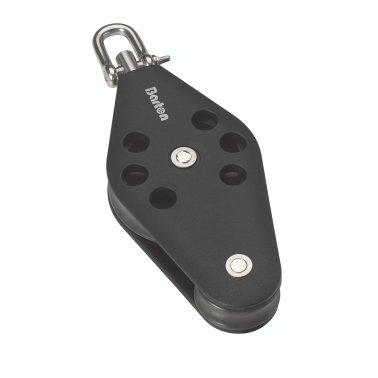

Barton N13430 - Fiddle Block Swivel Size 3 30/58mm – Ball Bearing, Ø30/58mm Sheaves, Max Rope 10mm
The Barton N13430 Fiddle Block with Swivel is part of the Size 3 (45 mm) block range, designed for high efficiency and smooth operation. It features a ball bearing fiddle sheave configuration (30/58 mm), ensuring low friction and precise control in dynamic sailing systems.
Manufactured using 30% glass fibre reinforced nylon side plates and an internal stainless steel frame, this block provides excellent durability while maintaining low weight. The swivel shackle allows free rotation under load, ensuring optimal alignment and reducing line twist in active rigging setups.
Key Features
- Fiddle block configuration with 30 mm and 58 mm sheaves
- Ball bearing system for smooth, low-friction performance
- Swivel shackle for flexible alignment and reduced line twist
- Lightweight and durable construction – 151 g
- Optimized for dynamic multi-purchase systems
Technical Specifications
Part Number N13430 Block Type Fiddle Swivel Size Size 3 (45 mm) Sheave Diameter 30 mm / 58 mm Sheave Size 30/58 × 13 mm (1 3/16" / 2 9/32" × 33/64") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 400 kg (881 lbs) Break Load 800 kg (1763 lbs) Max Rolling Load 270 kg (595 lbs) Weight 151 g Dimensions 150 × 60 × 28 mm Materials 30% glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Mainsheet and vang systems
- Dynamic multi-purchase systems
- Control and trimming lines
- Dinghies and small cruising yachts
The Barton Size 3 ball bearing fiddle swivel blocks are engineered for maximum efficiency and smooth control, delivering reliable performance in demanding sailing environments. :contentReference[oaicite:0]{index=0}
-
