The Barton 50045 is a 45 mm single fixed eye wooden block from the Victory collection, combining traditional ash wood construction with modern Delrin ball bearing technology. Weighing 86 g, it delivers smooth low-friction operation with a working load of 350 kg and break load of 700 kg, making it ideal for classic yachts and light-to-medium duty rigging systems.
- Description
- Ask a Question
-

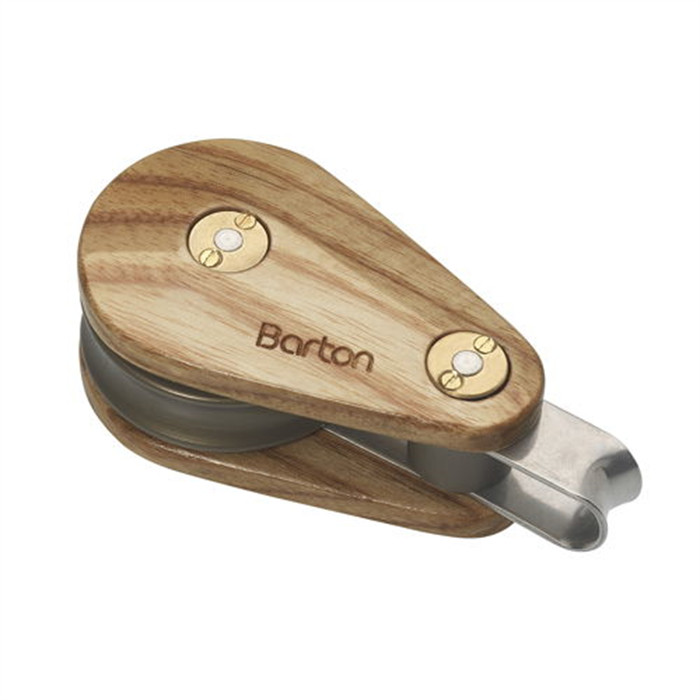

Barton 50045 – Single Fixed Eye Block 45mm Wooden, Delrin Ball Bearing, Max Rope 10mm
The Barton 50045 Single Fixed Eye Wooden Block is part of the refined Victory range, combining classic craftsmanship with modern performance engineering. Manufactured in the UK from traditional ash wood and finished with a high gloss marine varnish, it offers both visual appeal and long-term durability.
Internally, the block features Delrin ball bearings for smooth and efficient line handling. The gunmetal-coloured sheave and solid brass fittings provide strength and corrosion resistance, while the bolted construction allows easy servicing and refinishing. The Victory range is designed for sailors who value both technical performance and classic aesthetics. :contentReference[oaicite:0]{index=0}
Key Features
- Classic ash wood construction with high gloss marine varnish
- Delrin ball bearing system for low-friction performance
- Gunmetal sheave for durability and smooth operation
- Solid brass fittings for strength and corrosion resistance
- Bolted assembly for easy servicing and refinishing
- Balanced design for light and medium load applications
- Lightweight construction – 86 g
Technical Specifications
Part Number 50045 Block Type Single Fixed Eye Block Series Victory Wooden Blocks Sheave Diameter 45 mm (1 3/4") Sheave Size 45 mm x 14 mm (1 3/4" x 35/64") Bearing Type Delrin Ball Bearing Max Rope Diameter 10 mm (25/64") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs) Max Rolling Load 270 kg (595 lbs) Weight 86 g Dimensions 91 × 45 × 33 mm
Applications
- Classic and traditional yachts
- Light and medium-duty control systems
- Decorative and functional marine installations
- Restoration and heritage sailing projects
The Barton Victory wooden blocks combine timeless design with reliable modern performance, delivering smooth operation and durability for sailors who demand both elegance and functionality.
-
