The Barton T01180 is a 30 mm single fixed eye block from the TUPHblox range, manufactured from Tufnol phenolic resin laminate with brass bearings and 316 stainless steel fittings. Weighing 48 g, it provides durable low-friction performance with a working load of 350 kg and break load of 700 kg, suitable for ropes up to 10 mm and versatile marine or industrial applications.
- Description
- Ask a Question
-

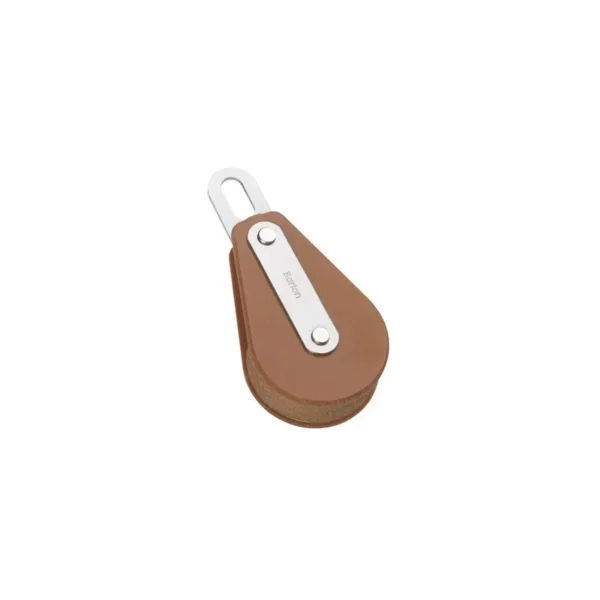

Barton T01180 – TUPHblox Single Fixed Eye Block 30mm, Brass Bearing, Max Rope 10mm
The Barton T01180 TUPHblox Single Fixed Eye Block is part of the robust and lightweight TUPHblox range, engineered for both marine and industrial use. Constructed from Tufnol phenolic resin laminate with cotton reinforcement, it offers exceptional strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The fixed eye allows secure attachment using rope or shackle, making it suitable for a wide range of rigging configurations.
Tufnol construction provides non-conductive properties, making this block ideal not only for sailing yachts but also for industrial applications, including explosive environments and hot air balloon systems. The material is produced through a multi-layer laminated and heat-compressed process, ensuring long-term performance and resistance to UV and weathering.
Key Features
- 30 mm single sheave block with fixed eye
- Tufnol phenolic laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Lightweight and compact design – 48 g
Technical Specifications
Part Number T01180 Block Type Single Fixed Eye Block Series TUPHblox Sheave Diameter 30 mm (1 3/16") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs) Weight 48 g
Applications
- Classic and modern sailing yachts
- Industrial and commercial rigging systems
- Non-conductive environments (e.g. explosive zones)
- Hot air balloon rigging
- Light-duty control and guiding systems
The Barton TUPHblox range combines traditional materials with modern engineering, delivering reliable performance, durability, and versatility across marine and industrial applications.
-
