The Barton 50030 is a 30 mm single fixed eye wooden block from the Victory collection, combining traditional ash wood construction with modern Delrin ball bearing technology. Weighing 45 g, it offers smooth low-friction operation with a working load of 350 kg and break load of 700 kg, ideal for classic yachts and light-duty rigging systems.
- Description
- Ask a Question
-

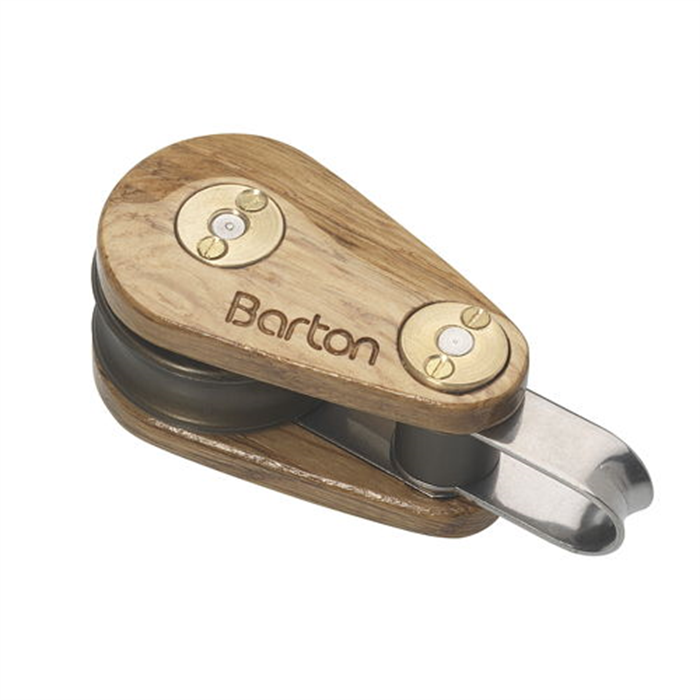

Barton 50030 – Single Fixed Eye Block 30mm Wooden, Delrin Ball Bearing, Max Rope 8mm
The Barton 50030 Single Fixed Eye Wooden Block is part of the elegant Victory range, combining classic craftsmanship with modern performance engineering. Manufactured in the UK from traditional ash wood and finished with a high gloss marine varnish, it delivers both visual appeal and long-lasting durability.
Internally, the block features Delrin ball bearings for smooth and efficient line handling. The gunmetal-coloured sheave and solid brass fittings enhance corrosion resistance and strength, while the bolted construction allows easy disassembly for servicing and refinishing. :contentReference[oaicite:0]{index=0}
Key Features
- Classic ash wood construction with high gloss marine varnish
- Delrin ball bearing system for low-friction operation
- Gunmetal sheave for durability and smooth running
- Solid brass fittings for strength and corrosion resistance
- Bolted assembly for easy servicing and refinishing
- Lightweight and compact design – 45 g
Technical Specifications
Part Number 50030 Block Type Single Fixed Eye Block Series Victory Wooden Blocks Sheave Diameter 30 mm (1 3/16") Sheave Size 30 mm x 12 mm (1 3/16" x 15/32") Bearing Type Delrin Ball Bearing Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs) Max Rolling Load 245 kg (540 lbs) Weight 45 g Dimensions 70 × 31 × 29 mm
Applications
- Classic and traditional yachts
- Light-duty control and trimming systems
- Decorative and functional marine installations
- Restoration and heritage sailing projects
The Barton Victory wooden blocks combine timeless aesthetics with reliable performance, offering smooth operation and long service life for sailors who value both function and classic design.
-
