The Barton T02181 is a 35 mm single fixed eye block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. Weighing 77 g, it provides durable low-friction performance with a working load of 370 kg and break load of 740 kg, suitable for ropes up to 12 mm and systems requiring fixed line termination.
- Description
- Ask a Question
-

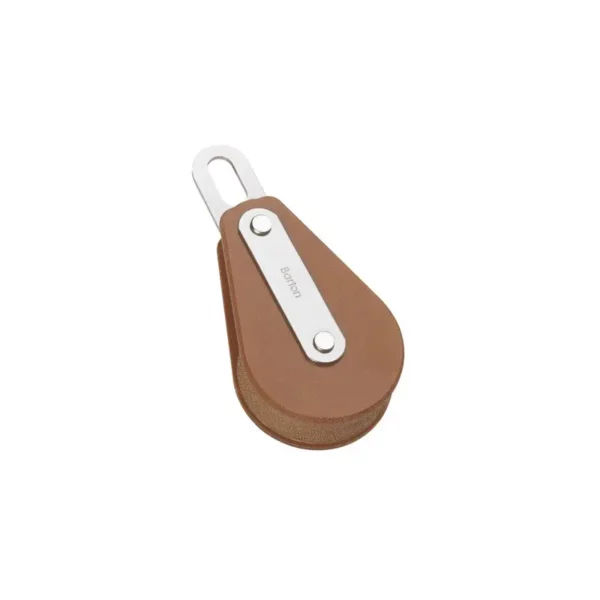

Barton T02181 – TUPHblox Single Fixed Eye Block with Becket 35mm, Brass Bearing, Max Rope 12mm
The Barton T02181 TUPHblox Single Block with Eye and Becket is part of the robust and lightweight TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it provides excellent strength, durability, and resistance to harsh environmental conditions.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure strength and corrosion resistance. The fixed eye with elongated slot allows flexible attachment using a shackle or rope, and the integrated becket enables secure rope termination in purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high load capacity, and excellent resistance to UV and weathering.
Key Features
- 35 mm single sheave block with fixed eye and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Becket for fixed line termination in purchase systems
- Lightweight construction – 77 g
Technical Specifications
Part Number T02181 Block Type Single Fixed Eye Block + Becket Series TUPHblox Sheave Diameter 35 mm (1 3/8") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 77 g
Applications
- Purchase systems with fixed rope termination
- Marine rigging on yachts and workboats
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- Light-to-medium duty control systems
The Barton TUPHblox blocks combine strength, durability, and versatility, delivering reliable performance across demanding marine and industrial applications where safety and longevity are essential.
-
