The Barton T02180 is a 35 mm single fixed eye block from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. Weighing 63 g, it provides durable low-friction performance with a working load of 370 kg and break load of 740 kg, suitable for ropes up to 12 mm and versatile marine or industrial applications.
- Description
- Ask a Question
-

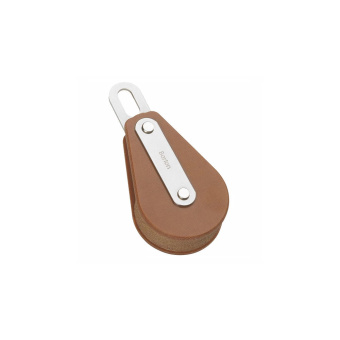

Barton T02180 – TUPHblox Single Fixed Eye Block 35mm, Brass Bearing, Max Rope 12mm
The Barton T02180 TUPHblox Single Fixed Eye Block is part of the durable and lightweight TUPHblox range, designed for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it offers excellent strength, durability, and resistance to harsh environmental conditions.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings provide structural strength and corrosion resistance. The fixed eye with elongated slot allows flexible attachment using a shackle or rope, making it adaptable to various rigging configurations.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high load capacity, and excellent resistance to UV and weathering.
Key Features
- 35 mm single sheave block with fixed eye
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Flexible attachment via elongated eye slot
- Lightweight construction – 63 g
Technical Specifications
Part Number T02180 Block Type Single Fixed Eye Block Series TUPHblox Sheave Diameter 35 mm (1 3/8") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 63 g
Applications
- Marine rigging on yachts and workboats
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- Light-to-medium duty control systems
- General-purpose line guidance
The Barton TUPHblox blocks combine strength, durability, and versatility, delivering reliable performance across demanding marine and industrial applications.
-
