ID
1360940
$ 36.43
1-2 weeks delivery time
-
+
The Barton T01181 is a 30 mm single fixed eye block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. Weighing 58 g, it provides durable low-friction performance with a working load of 350 kg and break load of 700 kg, suitable for ropes up to 10 mm and systems requiring fixed line termination.
- Description
- Ask a Question
-

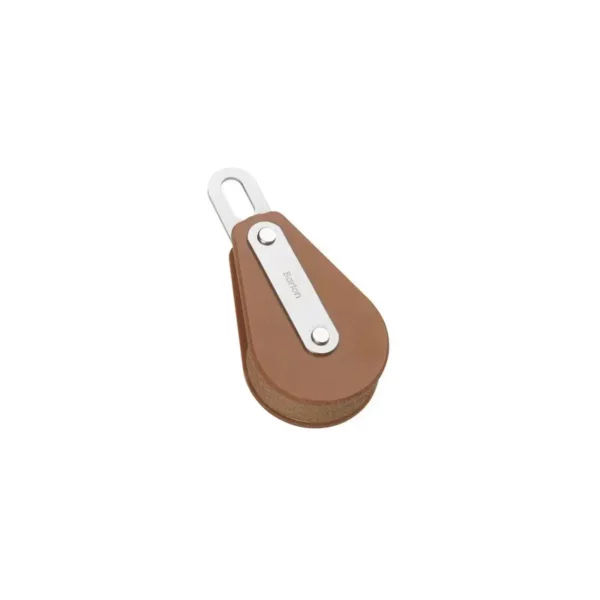

Barton T01181 – TUPHblox Single Fixed Eye Block with Becket 30mm, Brass Bearing, Max Rope 10mm
The Barton T01181 TUPHblox Single Block with Eye and Becket is part of the rugged and lightweight TUPHblox range, designed for marine, industrial, and specialist applications. Constructed from Tufnol phenolic resin laminate with cotton reinforcement, it offers excellent strength, durability, and resistance to harsh environmental conditions.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings provide strength and corrosion resistance. The fixed eye allows versatile attachment using rope or shackle through the elongated slot, and the integrated becket enables secure rope termination in purchase systems.
Tufnol construction provides non-conductive properties, making this block ideal for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high rolling loads, and resistance to UV exposure and weathering.
Key Features
- 30 mm single sheave block with fixed eye and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Becket for fixed line termination in purchase systems
- Lightweight design – 58 g
Technical Specifications
Part Number T01181 Block Type Single Fixed Eye Block + Becket Series TUPHblox Sheave Diameter 30 mm (1 3/16") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs) Weight 58 g
Applications
- Purchase systems with fixed rope termination
- Marine rigging on yachts and workboats
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- Light-duty control and guiding systems
The Barton TUPHblox blocks combine durability, versatility, and low-friction performance, delivering reliable operation in both marine and industrial applications where strength and safety are essential.
-
