ID
1405475
$ 23.73
1-2 weeks delivery time
-
+
The Tecnoseal 01121 is a zinc sacrificial anode plate designed for the crankcase cylinder of Yamaha 25–30 HP outboard motors manufactured between 1984 and 1997, corresponding to OEM part number 689-11325-00. Its compact, contoured body features a recessed central mounting hole and measures 28 mm in length, 15 mm in width and 9 mm in height, with a 7 mm through-hole diameter. Weighing 0.02 kg (20 g), this replaceable zinc anode helps protect metallic engine components exposed to water against galvanic corrosion. The same anode design is also listed under Tecnoseal catalogue reference 01760.
- Description
- Ask a Question
-

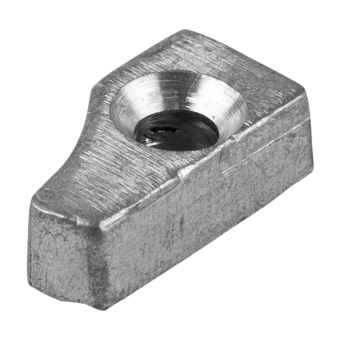

Tecnoseal 689-11325-00 Yamaha 25–30 HP Crankcase Cylinder Zinc Anode (1984–1997)
The Tecnoseal 01121 is a compact zinc sacrificial anode designed for the crankcase cylinder of Yamaha 25–30 HP outboard motors manufactured between 1984 and 1997. Corresponding to Yamaha OEM part number 689-11325-00, this replacement anode helps protect metallic engine components exposed to water against galvanic corrosion by providing a replaceable sacrificial zinc surface.

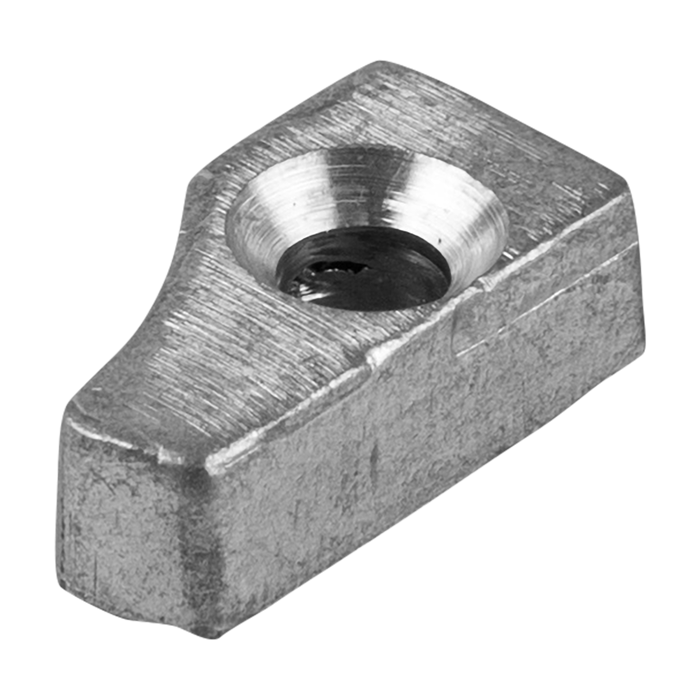

The anode features a small, contoured plate with a raised rectangular section, a shaped end and a recessed mounting hole. Its compact profile is intended for the corresponding anode mounting position on compatible Yamaha engine assemblies. The zinc material is gradually consumed during service, helping reduce corrosion of the surrounding protected metallic components.
The anode measures 28 mm (1.10 in) in length, 15 mm (0.59 in) in width and 9 mm (0.35 in) in height. The central mounting through-hole has a diameter of 7 mm (0.28 in). It weighs 0.02 kg (20 g) and is identified as Tecnoseal part number 01121. The same anode design is also listed in the Tecnoseal catalogue under reference 01760.
Technical Specifications
Manufacturer Tecnoseal Product Code 01121 Product Type Crankcase Cylinder Anode Plate Material Zinc Compatible Manufacturer Yamaha Compatible Outboards 25–30 HP Production Years 1984–1997 Yamaha OEM Reference 689-11325-00 Alternative Tecnoseal Reference 01760 Weight 0.02 kg (0.04 lbs) EAN 8033837065265
Dimensions and Mounting Specifications
Length (l) 28 mm (1.10 in) Width (a) 15 mm (0.59 in) Height (h) 9 mm (0.35 in) Mounting Hole Diameter (Ø) 7 mm (0.28 in)
Compatibility and Cross-References
- Compatible Manufacturer: Yamaha
- Outboard Power Range: 25–30 HP
- Production Period: 1984–1997
- Application: Crankcase cylinder anode
- Yamaha OEM Part Number: 689-11325-00
- Tecnoseal Product Code: 01121
- Alternative Tecnoseal Reference: 01760
Key Features
- Designed for compatible Yamaha 25–30 HP outboard motors manufactured between 1984 and 1997.
- Corresponds to Yamaha OEM part number 689-11325-00.
- Compact sacrificial zinc anode for crankcase cylinder applications.
- Contoured plate design with a recessed mounting hole.
- Helps protect water-exposed metallic engine components against galvanic corrosion.
- Overall dimensions: 28 × 15 × 9 mm.
- Mounting through-hole diameter: 7 mm.
- Weight: 20 g.
- Alternative Tecnoseal catalogue reference: 01760.
Compatibility Note: Before ordering, verify the Yamaha outboard model, production year, OEM part number and existing anode dimensions. Compare the shape and mounting-hole configuration with the original crankcase cylinder anode to ensure compatibility.
-
