Tecnoseal Isotherm Boiler Collar Anodes

Name: Tecnoseal Isotherm Boiler Collar Anodes
SKU: Tecnoseal 01450

ID 1406126

$ 77.31

1-2 weeks delivery time

Type:

Zinc
Magnesium

Size:

101x52x10

Tecnoseal Isotherm boiler collar anodes are ring-shaped sacrificial anodes designed for corrosion protection in compatible Isotherm marine water heaters. Available in zinc (01450) and magnesium (01450MG), both versions measure 101 mm in outside diameter, 52 mm in inner diameter and 10 mm in height, with a 42 mm mounting dimension and 5 mm fixing holes. The zinc version weighs 0.24 kg, while the magnesium version weighs 0.06 kg. Both models share original part reference SBE00006AA/39051 and are supplied individually.

Description
Ask a Question

Tecnoseal Isotherm Boiler Collar Anodes – Zinc & Magnesium

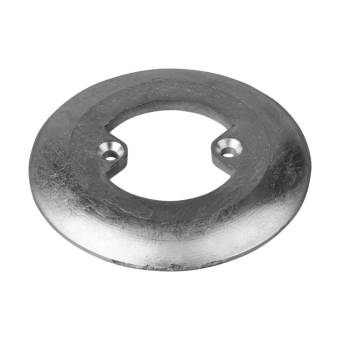

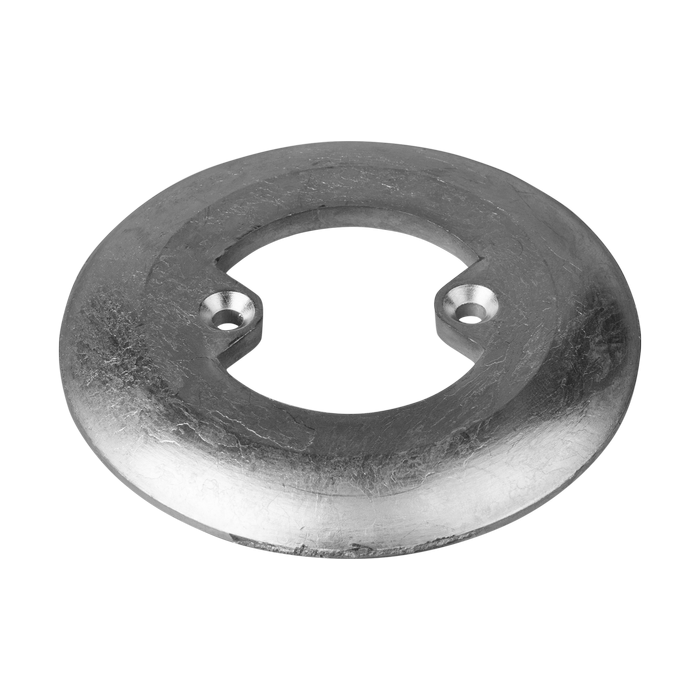

Tecnoseal Isotherm boiler collar anodes are ring-shaped sacrificial anodes designed to help protect compatible Isotherm marine water heaters from galvanic corrosion. These replacement components feature a circular collar construction with a central opening and mounting holes.

The range includes two models: Tecnoseal 01450, manufactured from zinc, and Tecnoseal 01450MG, manufactured from magnesium. Both versions share the same physical dimensions and mounting configuration, allowing selection according to the required sacrificial anode material.

Each collar measures 101 mm (3.98 in) in outside diameter, with a 52 mm (2.05 in) inner diameter and a 10 mm (0.39 in) height. The mounting arrangement includes a 42 mm dimension (i) and 5 mm fixing holes (Ø2).

The zinc version weighs 0.24 kg (0.53 lbs), while the magnesium version weighs 0.06 kg (0.13 lbs). Both are associated with original Isotherm part reference SBE00006AA/39051.

Key Features

Manufacturer: Tecnoseal
Product Type: Sacrificial collar anode
Application: Isotherm marine boilers and water heaters
Available Materials: Zinc and magnesium
Available Models: 01450 and 01450MG
Original Part Reference: SBE00006AA/39051
Outside Diameter (Ø): 101 mm
Inner Diameter (Ø1): 52 mm
Height (h): 10 mm
Mounting Dimension (i): 42 mm
Fixing Hole Diameter (Ø2): 5 mm
Individual Weights: 0.24 kg (zinc) and 0.06 kg (magnesium)
Supply: One collar anode

Available Models and Technical Specifications

Specification	01450	01450MG
Material	Zinc	Magnesium
Outside Diameter (Ø)	101 mm	101 mm
Inner Diameter (Ø1)	52 mm	52 mm
Height (h)	10 mm	10 mm
Mounting Dimension (i)	42 mm	42 mm
Fixing Hole Diameter (Ø2)	5 mm	5 mm
Weight	0.24 kg / 240 g	0.06 kg / 60 g
EAN	8033837066095	8052744984018

Tecnoseal 01450 – Zinc Isotherm Boiler Collar Anode

The Tecnoseal 01450 is a zinc sacrificial collar anode designed for compatible Isotherm marine water heaters. Its circular body measures 101 mm (3.98 in) in outside diameter and 10 mm (0.39 in) in height, with a 52 mm (2.05 in) central opening.

The collar features a 42 mm mounting dimension and 5 mm fixing holes. Made from zinc, it acts as a replaceable sacrificial element to help protect associated metal components against galvanic corrosion.

The anode weighs 0.24 kg (0.53 lbs) and is associated with original Isotherm part reference SBE00006AA/39051.

Product Code: 01450
Material: Zinc
Outside Diameter: 101 mm / 3.98 in
Inner Diameter: 52 mm / 2.05 in
Height: 10 mm / 0.39 in
Mounting Dimension (i): 42 mm / 1.65 in
Fixing Hole Diameter: 5 mm / 0.20 in
Weight: 0.24 kg / 0.53 lbs
EAN: 8033837066095

Tecnoseal 01450MG – Magnesium Isotherm Boiler Collar Anode

The Tecnoseal 01450MG is the magnesium version of the Isotherm boiler collar anode. It uses the same circular design and mounting dimensions as the zinc 01450 model, with a 101 mm outside diameter, 52 mm inner diameter and 10 mm height.

The mounting arrangement incorporates the same 42 mm dimension and 5 mm fixing holes. Its magnesium construction provides an alternative sacrificial anode material for installations requiring this composition.

The magnesium version weighs 0.06 kg (0.13 lbs), considerably less than the corresponding zinc anode, while retaining the same dimensions.

Product Code: 01450MG
Material: Magnesium
Outside Diameter: 101 mm / 3.98 in
Inner Diameter: 52 mm / 2.05 in
Height: 10 mm / 0.39 in
Mounting Dimension (i): 42 mm / 1.65 in
Fixing Hole Diameter: 5 mm / 0.20 in
Weight: 0.06 kg / 0.13 lbs
EAN: 8052744984018

Original Isotherm Part Reference

Both Tecnoseal collar anodes are listed under the Isotherm boiler collar anode range with original part reference SBE00006AA/39051.

The two versions share the same dimensions but differ in sacrificial anode material. Confirm the appropriate material for the specific water heater installation before ordering.

Model Selection

Choose between the zinc 01450 and magnesium 01450MG versions according to the material specified for the existing Isotherm water heater installation.

Both models have identical dimensions and mounting arrangements, including the 101 mm outside diameter, 52 mm inner opening, 42 mm mounting dimension and 5 mm fixing holes.

Although their dimensions are interchangeable, zinc and magnesium anodes have different electrochemical properties. Select the correct material based on the original equipment requirements and operating conditions.

Supply: One Tecnoseal sacrificial collar anode.
