Tecnoseal Isotherm Boiler Zinc Pencil Anode with Brass Plug – 1/2" BSPT

Name: Tecnoseal Isotherm Boiler Zinc Pencil Anode with Brass Plug – 1/2" BSPT
SKU: Tecnoseal 01451
Price: 52.469712250819 USD
Availability: InStock

ID 1406129

$ 52.47

1-2 weeks delivery time

- +

Add to cart

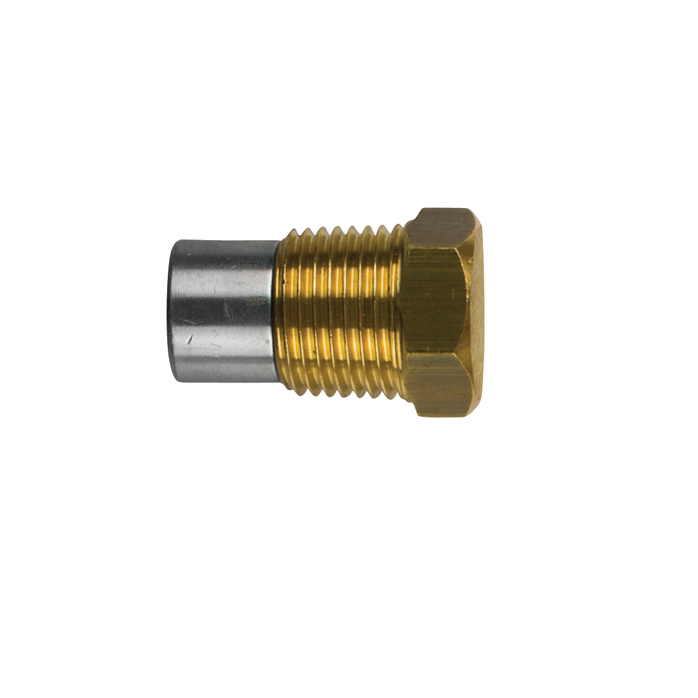

The Tecnoseal 01451 is a zinc sacrificial pencil anode supplied complete with a brass mounting plug for compatible Isotherm marine boilers and water heaters. The assembly measures 37 mm (1.46 in) in length, with a 17 mm (0.67 in) zinc rod diameter and a 22 mm (0.87 in) brass plug head dimension. It features a 1/2-inch GAS conical (BSPT) threaded connection for installation into a compatible water heater fitting. The complete zinc and brass assembly weighs 0.08 kg (80 g) and helps protect metallic components exposed to water against galvanic corrosion.

Description
Ask a Question

Tecnoseal 01451 Isotherm Boiler Zinc Pencil Anode with Brass Plug – 1/2" BSPT

The Tecnoseal 01451 Isotherm Boiler Pencil Anode is a zinc sacrificial anode designed for corrosion protection in compatible Isotherm marine boilers and water heaters. Supplied complete with a brass mounting plug, it helps protect metallic components exposed to water against galvanic corrosion.

The assembly features a cylindrical zinc rod with a diameter of 17 mm (0.67 in) and a length of 37 mm (1.46 in), together with a brass mounting plug featuring a 1/2" GAS conical (BSPT) threaded connection. The plug head dimension measures 22 mm (0.87 in).

The complete zinc and brass assembly weighs 0.08 kg (0.18 lbs). Its compact design allows installation in compatible threaded water heater fittings where this anode configuration is specified.

Key Features

Manufacturer: Tecnoseal
Product Code: 01451
Product Type: Sacrificial pencil anode
Application: Isotherm marine boilers and water heaters
Anode Material: Zinc
Plug Material: Brass
Configuration: Complete with brass plug
Length (l): 37 mm
Rod Diameter (Ø): 17 mm
External Thread (a): 1/2" GAS conical (BSPT)
Plug Head Dimension (c): 22 mm
Weight: 0.08 kg / 80 g
EAN: 8033837066101

Technical Specifications

Parameter	Metric / Specification	Imperial
Product Code	01451	–
Length (l)	37 mm	1.46 in
Rod Diameter (Ø)	17 mm	0.67 in
Plug Head Dimension (c)	22 mm	0.87 in
External Thread (a)	1/2" GAS Conical (BSPT)	1/2" BSPT
Weight	0.08 kg / 80 g	0.18 lbs
Anode Material	Zinc	–
Mounting Plug	Brass	–

Zinc Anode with Brass Mounting Plug

The Tecnoseal 01451 combines a zinc sacrificial element with a brass mounting plug. The zinc rod provides the sacrificial material for galvanic corrosion protection, while the brass plug serves as the mechanical connection to the water heater.

The plug features a 1/2" GAS conical (BSPT) external thread and a 22 mm head dimension. This tapered threaded connection must match the corresponding fitting on the boiler or water heater.

Application and Compatibility

This pencil anode is intended for compatible Isotherm marine boilers and water heaters using a 17 mm diameter zinc rod and a 1/2" BSPT brass mounting connection.

Before replacement, compare the original anode's rod diameter, length, plug dimensions and thread specification. BSPT tapered threads should not be confused with BSPP parallel or NPT threaded connections.

Replacement and Maintenance

The zinc rod gradually sacrifices its material while helping protect the associated metallic components against galvanic corrosion. Periodic inspection allows the anode to be replaced when sufficiently consumed.

When replacing the anode, verify the condition of the existing mounting connection and confirm that the replacement matches the original dimensions.

Supply: One Tecnoseal 01451 zinc sacrificial pencil anode complete with brass mounting plug.
