Tecnoseal Weber Motor Textron Heat Exchanger Pencil Aluminium Anode with Brass Plug

Name: Tecnoseal Weber Motor Textron Heat Exchanger Pencil Aluminium Anode with Brass Plug
SKU: Tecnoseal 02900

ID 1405859

$ 18.42

1-2 weeks delivery time

Item:

Anode Only
Brass Plug Only
Complete with Brass Plug

The Tecnoseal Weber Motor–Textron pencil anode range is designed for heat exchanger corrosion protection and includes three configurations: 02900 aluminium anode only, 02900T complete aluminium anode with brass plug, and 02900TP brass plug only. The aluminium rod measures 16 mm in diameter, 63 mm in length and has a 13 mm threaded extension with a 7/16-inch UNC connection. The brass plug features an M20x1.5 external thread and a 15 mm dimension (c). Catalogue weights are 0.04 kg for the anode, 0.08 kg for the complete assembly and 0.05 kg for the brass plug. Select the required configuration according to the part being replaced.

Description
Ask a Question

Tecnoseal Weber Motor Textron Heat Exchanger Pencil Anode with Brass Plug – Aluminium

The Tecnoseal Weber Motor–Textron heat exchanger pencil anode range includes an aluminium sacrificial rod, a complete aluminium anode with brass plug, and a replacement brass plug supplied separately. These components are designed for compatible Weber Motor–Textron heat exchanger installations.

The aluminium anode measures 16 mm (0.63 in) in diameter and 63 mm (2.48 in) in length, with a 13 mm (0.51 in) threaded extension and a 7/16" UNC connection. The complete assembly uses a brass plug with an M20x1.5 external thread. The three available configurations allow replacement of the anode alone, the plug alone, or both components together.

Available Models and Technical Specifications

Tecnoseal Code	Configuration	Material	Weight
02900	Anode only	Aluminium	0.04 kg (0.09 lbs)
02900T	Complete anode with brass plug	Aluminium + Brass	0.08 kg (0.18 lbs)
02900TP	Plug only	Brass	0.05 kg (0.11 lbs)

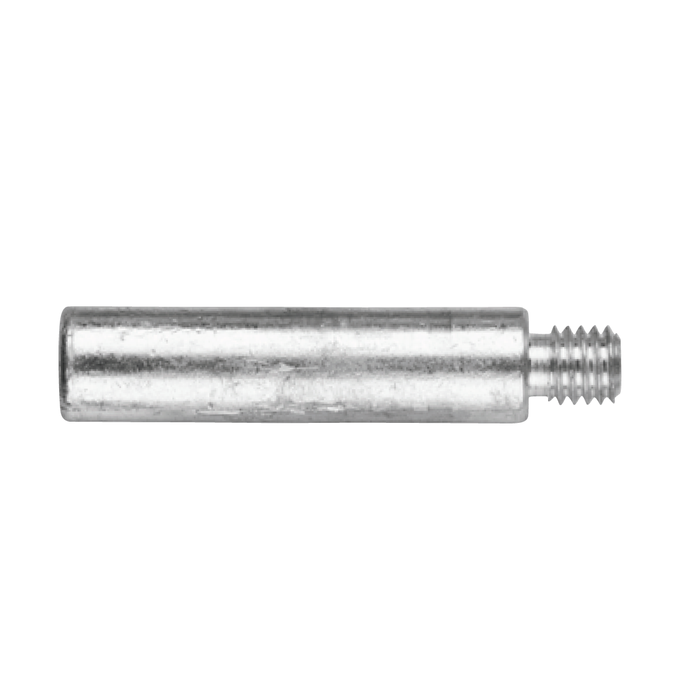

Tecnoseal 02900 – Aluminium Pencil Anode Only

The Tecnoseal 02900 is the replacement aluminium sacrificial rod supplied without the brass plug.

Product Code: 02900
Material: Aluminium
Diameter (Ø): 16 mm (0.63 in)
Rod Length (l): 63 mm (2.48 in)
Threaded Extension (l1): 13 mm (0.51 in)
Thread (b): 7/16" UNC
Weight: 0.04 kg (0.09 lbs)
EAN: 8052744980935

Tecnoseal 02900T – Complete Aluminium Anode with Brass Plug

The Tecnoseal 02900T combines the aluminium sacrificial rod with a brass plug, providing a complete replacement assembly for compatible Weber Motor–Textron heat exchangers.

Product Code: 02900T
Material: Aluminium + Brass
Anode Diameter (Ø): 16 mm (0.63 in)
Anode Length (l): 63 mm (2.48 in)
Threaded Extension (l1): 13 mm (0.51 in)
Plug External Thread (a): M20x1.5
Anode Connection Thread (b): 7/16" UNC
Plug Dimension (c): 15 mm (0.59 in)
Weight: 0.08 kg (0.18 lbs)
EAN: 8058774834897

Tecnoseal 02900TP – Brass Plug Only

The Tecnoseal 02900TP is the replacement brass plug supplied without the sacrificial aluminium rod. It features an M20x1.5 external thread and a 7/16" UNC connection for the anode.

Product Code: 02900TP
Material: Brass
External Thread (a): M20x1.5
Internal Connection Thread (b): 7/16" UNC
Plug Dimension (c): 15 mm (0.59 in)
Weight: 0.05 kg (0.11 lbs)
EAN: 8052744980942

Application

Weber Motor–Textron marine heat exchangers

Product References

Tecnoseal 02900: Aluminium pencil anode only
Tecnoseal 02900T: Complete aluminium anode with brass plug
Tecnoseal 02900TP: Brass plug only

Model Selection

Select 02900 when only the sacrificial aluminium rod requires replacement. Choose 02900T when a complete aluminium anode and brass plug assembly is required. Select 02900TP when only the brass plug needs replacing. Check both the M20x1.5 and 7/16" UNC connections against the existing installation before ordering.
