Tecnoseal Isotta Fraschini Brass Plugs for Marine Engine Pencil Anodes

ID 1405985

$ 47.63

1-2 weeks delivery time

Size:

M18x1.5
M24x1.5

Item:

M8 c27
M18x1.5 c30

Tecnoseal Isotta Fraschini brass plugs are replacement mounting fittings for sacrificial pencil anodes used in compatible marine engine cooling systems and heat exchangers. The 02081TP is designed for the Tecnoseal 02081 anode and features an M18x1.5 external thread, an M8 internal connection and a 27 mm head, weighing 0.05 kg (0.11 lbs). The larger 02082TP is designed for the Tecnoseal 02082 anode, with an M24x1.5 external thread, an M18x1.5 internal connection and a 30 mm head, weighing 0.09 kg (0.20 lbs). Both plugs are made from brass, use the 7TP configuration and are supplied individually without zinc anode rods.

Description
Ask a Question

Tecnoseal Isotta Fraschini Brass Plugs for Marine Engine Pencil Anodes – M18x1.5 & M24x1.5

Tecnoseal Isotta Fraschini brass plugs are replacement mounting fittings designed for sacrificial pencil anodes used in compatible marine engine heat exchangers and cooling-water systems. These components provide the threaded connection between the zinc anode and the engine cooling system fitting, allowing the mounting plug to be replaced separately from the sacrificial zinc element.

The range includes two brass plugs with different external and internal mounting threads. The Tecnoseal 02081TP features an M18x1.5 external thread, an M8 internal connection and a 27 mm head. The larger 02082TP has an M24x1.5 external thread, an M18x1.5 internal connection and a 30 mm head.

Both models feature the Tecnoseal 7TP brass plug configuration. The 02081TP weighs 0.05 kg (0.11 lbs), while the 02082TP weighs 0.09 kg (0.20 lbs). The plugs are supplied individually without zinc anodes and are intended for use with the corresponding Tecnoseal 02081 and 02082 pencil anodes.

Key Features
- Manufacturer: Tecnoseal
- Compatible Brand: Isotta Fraschini
- Product Type: Brass mounting plug for pencil anodes
- Material: Brass
- Configuration: Brass Plug Only
- Available Models: 02081TP, 02082TP
- External Threads: M18x1.5 and M24x1.5
- Internal Threads: M8 and M18x1.5
- Head Dimensions: 27 and 30 mm
- Brass Plug Type: 7TP
- Weight Range: 0.05–0.09 kg
Available Models and Technical Specifications

Tecnoseal Code External Thread (a) Internal Thread (b) Head (c) Weight Plug Type

02081TP M18x1.5 M8 27 mm 0.05 kg / 0.11 lbs 7TP

02082TP M24x1.5 M18x1.5 30 mm 0.09 kg / 0.20 lbs 7TP

Individual Model Specifications

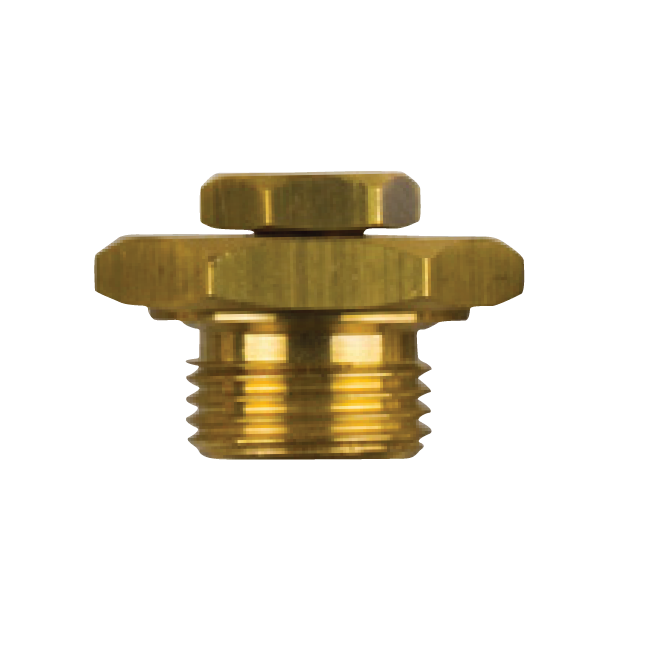

Tecnoseal 02081TP – Isotta Fraschini Brass Plug M18x1.5 for Pencil Anode 02081

The Tecnoseal 02081TP is a brass mounting plug designed for use with the Tecnoseal 02081 zinc pencil anode. It features an M18x1.5 external mounting thread and an M8 internal connection for the anode. The plug has a 27 mm (1.06 in) head and weighs 0.05 kg (0.11 lbs).

Its 7TP configuration provides a separate mounting component for compatible Isotta Fraschini marine engine cooling systems. The brass plug can be replaced independently of the zinc pencil anode when required.
- Product Code: 02081TP
- Material: Brass
- Compatible Tecnoseal Anode: 02081
- External Thread (a): M18x1.5
- Internal Thread (b): M8
- Head Dimension (c): 27 mm (1.06 in)
- Weight: 0.05 kg (0.11 lbs)
- Brass Plug Type: 7TP
- EAN: 8052744981611
- Supply: Brass plug only
Tecnoseal 02082TP – Isotta Fraschini Brass Plug M24x1.5 for Pencil Anode 02082

The Tecnoseal 02082TP is a larger brass mounting plug designed for use with the Tecnoseal 02082 zinc pencil anode. Its external mounting thread measures M24x1.5, while the internal connection is M18x1.5. The plug features a 30 mm (1.18 in) head and weighs 0.09 kg (0.20 lbs).

This model uses the Tecnoseal 7TP plug configuration and is intended for compatible Isotta Fraschini marine engine cooling system fittings. It is supplied as a separate brass component without the zinc anode.
- Product Code: 02082TP
- Material: Brass
- Compatible Tecnoseal Anode: 02082
- External Thread (a): M24x1.5
- Internal Thread (b): M18x1.5
- Head Dimension (c): 30 mm (1.18 in)
- Weight: 0.09 kg (0.20 lbs)
- Brass Plug Type: 7TP
- EAN: 8052744986463
- Supply: Brass plug only
Compatible Pencil Anodes

Brass Plug Code Matching Anode Anode Dimensions

02081TP 02081 Ø14 x 20 mm, M8

02082TP 02082 Ø20 x 35 mm, M18x1.5

Application and Compatibility
- Isotta Fraschini marine engine cooling systems
- Compatible marine engine heat exchangers
- Replacement brass mounting fittings for sacrificial pencil anodes
- Separate replacement of the brass plug without replacing the zinc anode
Model Selection

Select the appropriate Tecnoseal Isotta Fraschini brass plug by checking the existing external mounting thread, internal anode connection and head dimension.

The 02081TP has an M18x1.5 external thread, an M8 internal connection and a 27 mm head, making it suitable for the Tecnoseal 02081 pencil anode. The larger 02082TP features an M24x1.5 external thread, an M18x1.5 internal connection and a 30 mm head for use with the Tecnoseal 02082 anode.

The external mounting thread and internal anode connection serve different functions. Confirm both thread specifications and the existing fitting dimensions before ordering.

Supply: Both versions are supplied as individual brass plugs without zinc sacrificial anodes.
