The Tecnoseal TEC-E2C is a zinc pencil anode supplied complete with a brass mounting plug for compatible Kohler marine engine cooling systems and heat exchangers. Corresponding to original part number 352142, it features a cylindrical zinc rod measuring 16 mm (5/8 in) in diameter and 38 mm (1.50 in) in length. The brass plug has a 1/2-inch NPT mounting thread and a 22 mm (7/8 in) head dimension. The complete assembly weighs 0.11 kg (0.24 lbs) and uses the 2T pencil configuration, providing sacrificial corrosion protection for metallic components exposed to cooling water.
- Description
- Ask a Question
-

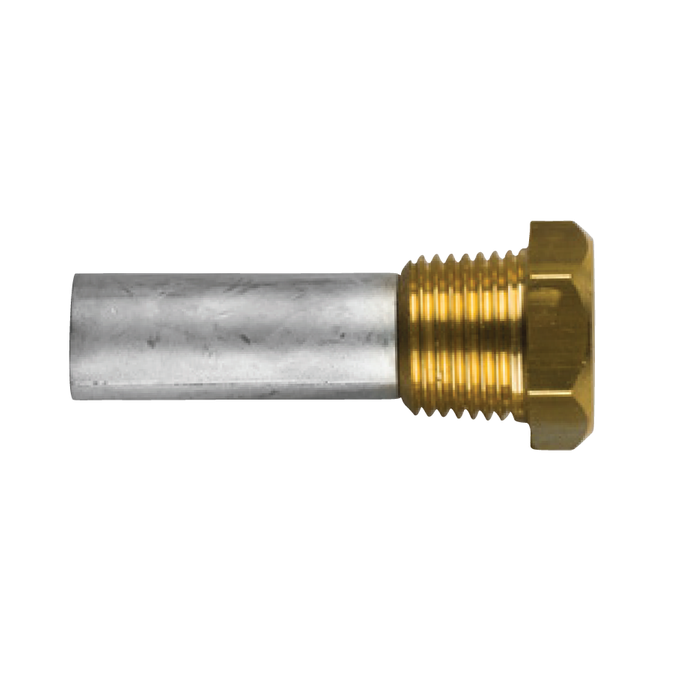

Tecnoseal TEC-E2C / 352142 Kohler Zinc Pencil Anode Ø16x38 mm with 1/2" NPT Brass Plug
The Tecnoseal TEC-E2C is a zinc sacrificial pencil anode supplied complete with a brass mounting plug for compatible Kohler marine engine cooling systems and heat exchangers. Corresponding to original part number 352142, this replacement assembly helps protect internal metallic components against galvanic corrosion in cooling-water circuits.
The anode features a cylindrical zinc rod measuring 16 mm (5/8 in) in diameter and 38 mm (1.50 in) in length. The brass mounting plug has a 1/2" NPT threaded connection and a 22 mm (7/8 in) head dimension, allowing installation into a compatible existing engine cooling system fitting.
The complete assembly weighs 0.11 kg (0.24 lbs) and uses the Tecnoseal 2T pencil configuration. It includes both the sacrificial zinc element and its brass mounting plug, making it suitable for replacing the complete anode assembly during routine marine engine cooling system maintenance.
Key Features
- Manufacturer: Tecnoseal
- Product Code: TEC-E2C
- Original Part Number: 352142
- Compatible Brand: Kohler
- Product Type: Sacrificial pencil anode with brass plug
- Anode Material: Zinc
- Plug Material: Brass
- Configuration: Complete with Brass Plug
- Pencil Type: 2T
Technical Specifications
Specification Value Product Code TEC-E2C Original Part Number 352142 Zinc Rod Diameter (Ø) 16 mm (5/8 in) Zinc Rod Length (l) 38 mm (1.50 in) External Plug Thread (a) 1/2" NPT Plug Head Dimension (c) 22 mm (7/8 in) Weight 0.11 kg (0.24 lbs) Pencil Type 2T EAN 8052744984391 Supply Complete with brass plug
Application and Compatibility
- Kohler marine engine cooling systems
- Compatible marine engine heat exchangers
- Replacement for original part number 352142
- Complete zinc pencil anode and brass plug replacement
Installation and Replacement
The Tecnoseal TEC-E2C is intended for installation in compatible cooling system fittings with a 1/2" NPT connection. Its 16 mm diameter and 38 mm long zinc rod should be checked against the existing anode assembly to ensure dimensional compatibility.
For replacement, verify the original part number 352142, the brass plug thread and the available installation space. The sacrificial zinc element should be inspected periodically and replaced when sufficiently consumed by corrosion.
Supply: One zinc pencil anode complete with brass mounting plug.
-
