Tecnoseal Hyundai Seasall Zinc Pencil Anode Ø17x57 mm with M20x1.5 Brass Plug Options

Tecnoseal Hyundai Seasall Zinc Pencil Anode Ø17x57 mm with M20x1.5 Brass Plug Options

Tecnoseal Hyundai Seasall pencil anodes and brass plugs are replacement components designed for marine engine heat exchangers and cooling-water systems. The range includes a zinc sacrificial anode, a separate brass mounting plug and a complete assembly combining both components.

The Tecnoseal 02170 zinc pencil anode features a cylindrical body measuring 17 mm in diameter and 57 mm in length. It has a 10 mm mounting extension with a 14 mm connection dimension and weighs 0.11 kg. The sacrificial zinc element helps protect metallic components exposed to cooling water against galvanic corrosion.

The matching Tecnoseal 02170TP brass plug features an M20x1.5 external thread, a 14 mm internal connection dimension and a 24 mm head. It weighs 0.06 kg and provides the mounting connection for the compatible pencil anode.

For complete replacement, the Tecnoseal 02170T combines the zinc pencil anode and brass plug into one assembly. The zinc rod measures 17 mm in diameter and 57 mm in length, while the brass plug features an M20x1.5 mounting thread and a 24 mm head. The complete assembly weighs 0.16 kg.

Key Features

• Manufacturer: Tecnoseal
• Compatible Brand: Hyundai Seasall
• Product Type: Pencil sacrificial anode and mounting plug
• Anode Material: Zinc
• Plug Material: Brass
• Application: Marine engine heat exchangers and cooling systems
• Available Models: 02170, 02170TP, 02170T
• Zinc Body Diameter: 17 mm
• Zinc Body Length: 57 mm
• Brass Plug External Thread: M20x1.5
• Brass Plug Head Dimension: 24 mm
• Available Configurations: Anode Only, Brass Plug Only, Complete with Brass Plug

Available Models and Technical Specifications

Individual Model Specifications

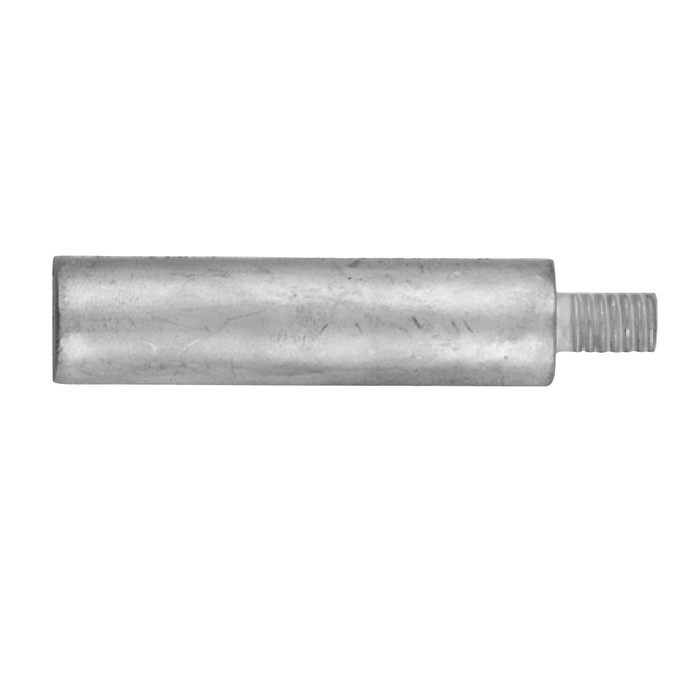

Tecnoseal 02170 – Hyundai Seasall Zinc Pencil Anode Ø17 x 57 mm

The Tecnoseal 02170 is a zinc sacrificial pencil anode for Hyundai Seasall marine engine cooling applications. Its cylindrical body measures 17 mm (0.67 in) in diameter and 57 mm (2.24 in) in length. The anode features a 10 mm (0.39 in) mounting extension with a 14 mm (0.55 in) connection dimension, allowing installation into a compatible existing mounting plug.

Weighing 0.11 kg (0.24 lbs), this model uses the T1 pencil configuration and is supplied individually without a brass plug.

• Product Code: 02170
• Material: Zinc
• Body Diameter (Ø): 17 mm (0.67 in)
• Body Length (l): 57 mm (2.24 in)
• Extension Length (l1): 10 mm (0.39 in)
• Connection Dimension (b): 14 mm (0.55 in)
• Weight: 0.11 kg (0.24 lbs)
• Pencil Type: T1
• EAN: 8058774838758
• Supply: Zinc anode only

Tecnoseal 02170TP – Hyundai Seasall Brass Plug M20x1.5

The Tecnoseal 02170TP is a brass mounting plug for Hyundai Seasall pencil anodes. It features an M20x1.5 external mounting thread and a 14 mm (0.55 in) internal connection dimension. The plug has a 24 mm (0.94 in) head and weighs 0.06 kg (0.13 lbs).

This model uses the 2TP brass plug configuration and is supplied separately without the sacrificial zinc rod, making it suitable when only the mounting fitting requires replacement.

• Product Code: 02170TP
• Material: Brass
• External Thread (a): M20x1.5
• Internal Connection Dimension (b): 14 mm (0.55 in)
• Head Dimension (c): 24 mm (0.94 in)
• Weight: 0.06 kg (0.13 lbs)
• Plug Type: 2TP
• EAN: 8058774838765
• Supply: Brass plug only

Tecnoseal 02170T – Hyundai Seasall Zinc Pencil Anode Ø17 x 57 mm Complete with M20x1.5 Brass Plug

The Tecnoseal 02170T combines a zinc pencil anode and a brass mounting plug into a complete replacement assembly for Hyundai Seasall marine engine cooling applications. The zinc rod measures 17 mm (0.67 in) in diameter and 57 mm (2.24 in) in length. The brass mounting plug features an M20x1.5 external thread and a 24 mm (0.94 in) head dimension.

The complete assembly weighs 0.16 kg (0.35 lbs) and uses the 2T configuration. It provides both the sacrificial zinc component and its brass mounting fitting for replacement as a complete unit.

• Product Code: 02170T
• Anode Material: Zinc
• Plug Material: Brass
• Zinc Rod Diameter (Ø): 17 mm (0.67 in)
• Zinc Rod Length (l): 57 mm (2.24 in)
• External Plug Thread (a): M20x1.5
• Plug Head Dimension (c): 24 mm (0.94 in)
• Weight: 0.16 kg (0.35 lbs)
• Pencil Type: 2T
• EAN: 8058774838772
• Supply: Complete with brass plug

Application and Compatibility

• Hyundai Seasall marine engine cooling systems
• Compatible marine engine heat exchangers
• Replacement of sacrificial zinc pencil anodes
• Replacement of brass mounting plugs
• Complete anode and plug replacement assemblies

Model Selection

Choose the required version according to the component being replaced. The Tecnoseal 02170 is intended for replacement of the zinc sacrificial rod while retaining a compatible existing brass plug. The 02170TP provides the brass mounting plug separately without the zinc anode.

The 02170T includes both components and is suitable when the complete assembly needs replacement. The brass mounting thread is M20x1.5, and the zinc rod measures 17 mm in diameter and 57 mm in length.

Check the existing anode dimensions, mounting connection and engine specifications before ordering.
