ID
1405798
$ 23.25
1-2 weeks delivery time
-
+

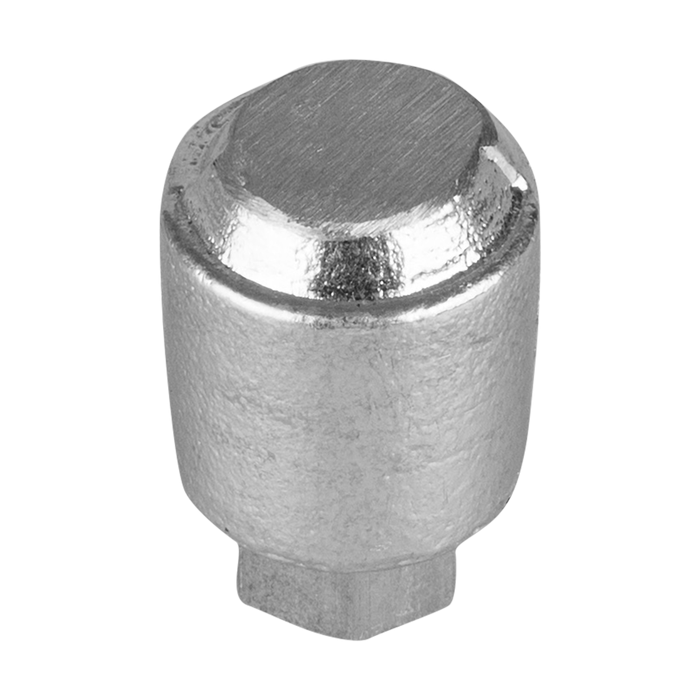

The Tecnoseal 02402 is a zinc sacrificial rod anode designed for Castoldi marine engines, corresponding to OEM part number 590.14055. It features a compact cylindrical body with an internal M10 threaded connection and a hexagonal mounting section. The anode measures 22 mm (0.87 in) in diameter and 26 mm (1.02 in) in body length, with an additional 8 mm (0.31 in) connection length and a 13 mm (0.51 in) hexagonal section. Weighing 0.05 kg (0.11 lbs), this zinc anode provides sacrificial corrosion protection for compatible Castoldi engine components.
- Description
- Ask a Question
-

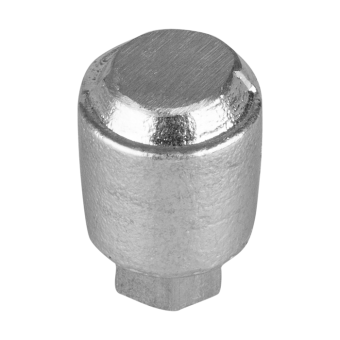

Tecnoseal 590.14055 Castoldi Zinc Engine Rod Anode Ø22 mm M10
The Tecnoseal 02402 is a zinc sacrificial rod anode designed for Castoldi marine engines. It corresponds to Castoldi OEM part number 590.14055 and helps protect compatible metallic engine components against galvanic corrosion.
The anode features a compact cylindrical body with an internal M10 threaded connection and a hexagonal mounting section. According to the Tecnoseal catalogue, it measures 22 mm (0.87 in) in outer diameter and 26 mm (1.02 in) in body length. The additional connection length (l1) is 8 mm (0.31 in), while dimension a of the hexagonal section is 13 mm (0.51 in).
Manufactured from zinc, the Tecnoseal 02402 weighs 0.05 kg (0.11 lbs). Its internally threaded construction allows installation on compatible Castoldi engine components requiring this anode configuration.
Technical Specifications
Manufacturer Tecnoseal Product Code 02402 Product Type Engine Rod Sacrificial Anode Compatible Brand Castoldi OEM Reference 590.14055 Material Zinc Weight 0.05 kg (0.11 lbs) Body Length (l) 26 mm (1.02 in) Connection Length (l1) 8 mm (0.31 in) Hexagonal Section (a) 13 mm (0.51 in) Outer Diameter (Ø) 22 mm (0.87 in) Internal Thread (m) M10 EAN 8033837066477
Dimensions and Mounting
- Body Length (l): 26 mm (1.02 in)
- Connection Length (l1): 8 mm (0.31 in)
- Hexagonal Section (a): 13 mm (0.51 in)
- Outer Diameter (Ø): 22 mm (0.87 in)
- Internal Thread (m): M10
- Construction: Cylindrical zinc body with internal threaded connection and hexagonal mounting section
OEM and Product Cross-References
- Castoldi OEM: 590.14055
- Tecnoseal Zinc: 02402
Key Features
- Zinc sacrificial rod anode for Castoldi marine engines.
- Compact cylindrical body with a 22 mm outer diameter.
- 26 mm body length and 8 mm connection length.
- Internal M10 threaded connection.
- 13 mm hexagonal mounting section.
- Corresponds to Castoldi OEM part number 590.14055.
- Helps protect compatible metallic engine components against galvanic corrosion.
Compatibility: Designed as a replacement for Castoldi OEM part number 590.14055. Verify the anode diameter, body length, M10 internal thread and mounting configuration against the existing component before ordering.
-
