Tecnoseal 89949 Yamaha 150–200 HP Outboard Bracket Handle Zinc Anode

Tecnoseal 89949 Yamaha 150–200 HP Outboard Bracket Handle Zinc Anode

The Tecnoseal 01125 is a zinc sacrificial anode designed for the outboard bracket handle arrangement of Yamaha 150–200 HP motors. Corresponding to original part number 89949, this replacement anode helps protect metallic outboard bracket components against galvanic corrosion by providing a sacrificial zinc surface.

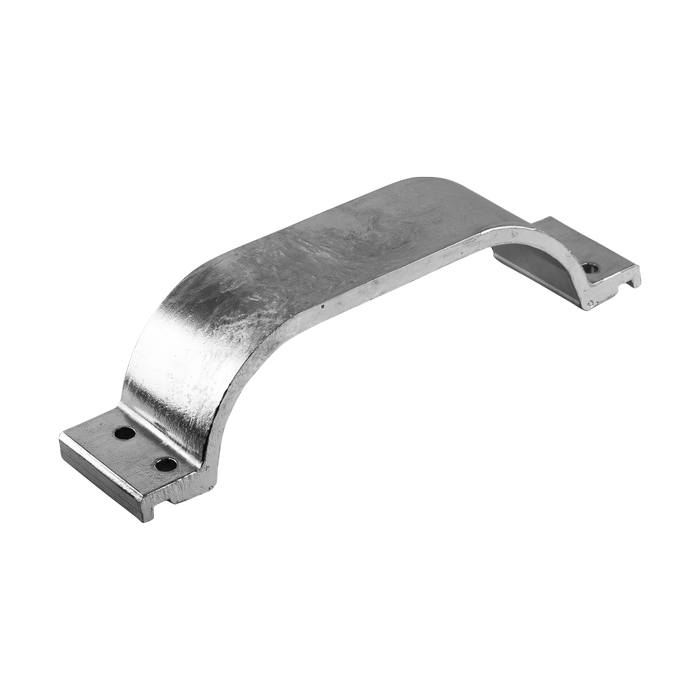

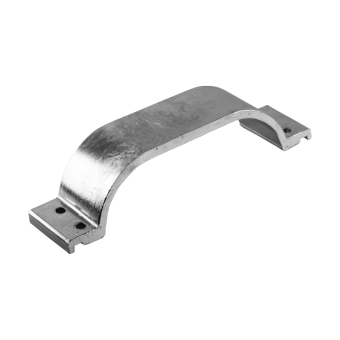

The anode features a curved, bridge-shaped body with a raised central section and flat mounting ends. Each end incorporates two fastening holes, giving the component a four-hole mounting configuration. The shaped profile is intended for installation on compatible outboard bracket assemblies, where the zinc material provides corrosion protection for surrounding metallic components.

The anode measures 280 mm (11.02 in) in overall length and 60 mm (2.36 in) in width. Its overall height (h1) is 60 mm (2.36 in), while the mounting-section thickness (h) is 10 mm (0.39 in). The additional mounting dimensions are 30 mm (1.18 in) for dimension i and 240 mm (9.45 in) for dimension i1. These measurements correspond to the fastening arrangement shown in the Tecnoseal catalogue.

Manufactured from zinc, the Tecnoseal 01125 weighs 1.20 kg (2.65 lbs). Its curved construction and four-hole mounting arrangement distinguish it from conventional flat engine bracket anodes. The same anode design is also listed under Tecnoseal catalogue reference 00821.

Technical Specifications

Dimensions and Mounting Specifications

Compatibility and Cross-References

• Compatible Manufacturer: Yamaha
• Outboard Power Range: 150–200 HP
• Application: Outboard bracket handle
• Original Part Number: 89949
• Tecnoseal Product Code: 01125
• Alternative Tecnoseal Reference: 00821

Key Features

• Designed for compatible Yamaha 150–200 HP outboard motors.
• Corresponds to original part number 89949.
• Curved, bridge-shaped zinc sacrificial anode.
• Flat mounting sections at both ends with four fastening holes.
• Helps protect metallic outboard bracket components against galvanic corrosion.
• Overall dimensions: 280 mm length, 60 mm width and 60 mm height.
• Mounting-section thickness: 10 mm.
• Mounting dimensions: 30 mm (i) and 240 mm (i1).
• Weight: 1.20 kg.
• Alternative Tecnoseal catalogue reference: 00821.

Compatibility Note: Before ordering, verify the Yamaha outboard model, original part number and existing anode dimensions. Compare the curved body profile and four-hole mounting configuration with the original bracket anode to ensure compatibility.
