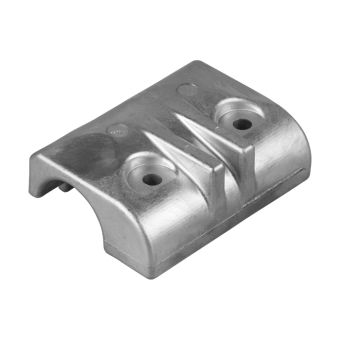

Tecnoseal 63D-45251-01 / 63D-45251-00 Yamaha 40–50 HP Outboard Bracket Anode

ID 1405508

$ 67.55

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

140 g
570 g

The Tecnoseal 01131 series consists of sacrificial block anodes designed for the engine mounting brackets of Yamaha 40–50 HP outboard motors, corresponding to OEM part numbers 63D-45251-01 and 63D-45251-00. Each anode features a contoured, channel-shaped body with two recessed mounting holes and reinforcing ribs, helping protect metallic outboard bracket components against galvanic corrosion. The anode measures 85 mm in length, 62 mm in width and 32 mm in height, with 46 mm mounting-hole spacing (i) and 7 mm fastening-hole diameter (Ø). Three material versions are available: zinc (01131, 570 g), aluminium (01131AL, 220 g) and magnesium (01131MG, 140 g). All versions share identical dimensions and mounting geometry. The same anode design is also listed under Tecnoseal catalogue reference 01651.

Description
Ask a Question

Tecnoseal 63D-45251-01 / 63D-45251-00 Yamaha 40–50 HP Outboard Bracket Anode

The Tecnoseal 01131 series consists of sacrificial block anodes designed for the mounting brackets of Yamaha 40–50 HP outboard motors. Corresponding to Yamaha OEM part numbers 63D-45251-01 and 63D-45251-00, these replacement anodes help protect metallic outboard bracket components against galvanic corrosion.

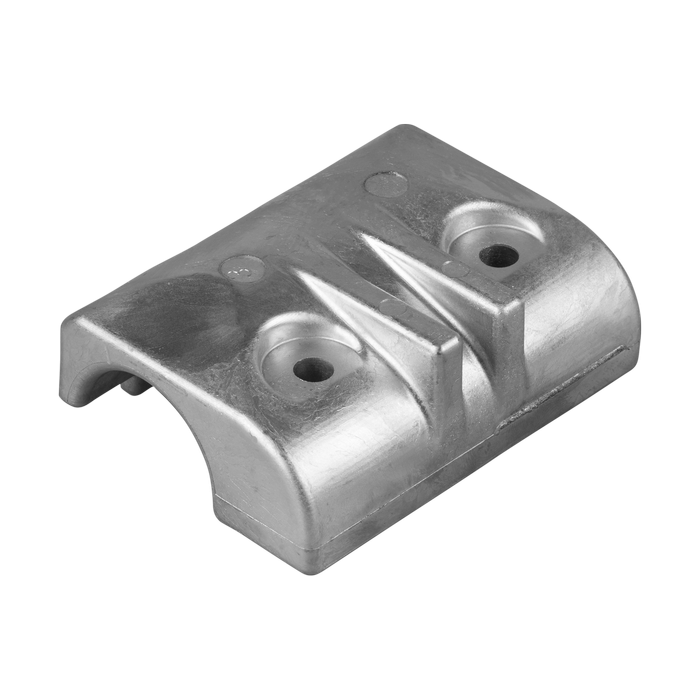

Each anode features a contoured block with a channel-shaped profile designed to follow the corresponding mounting area of compatible Yamaha outboard brackets. The body incorporates two recessed mounting holes, curved supporting surfaces and raised reinforcing ribs. This configuration allows the anode to fit around the bracket mounting area while providing a replaceable sacrificial metal surface.

The anode measures 85 mm (3.35 in) in overall length, 62 mm (2.44 in) in width and 32 mm (1.26 in) in height. The mounting-hole spacing (i) measures 46 mm (1.81 in), while the fastening-hole diameter (Ø) is 7 mm (0.28 in). The shaped profile and mounting dimensions should be compared with the original component before replacement.

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01131, weighs 0.57 kg (1.26 lbs). The aluminium version, Tecnoseal 01131AL, weighs 0.22 kg (0.49 lbs), while the magnesium version, Tecnoseal 01131MG, weighs 0.14 kg (0.31 lbs). These alternatives allow the appropriate sacrificial anode material to be selected according to the vessel's operating water conditions.

The same anode design is also listed under Tecnoseal catalogue reference 01651, providing an additional reference for identifying the corresponding replacement component.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outboard Engine Bracket Block Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	40–50 HP
Yamaha OEM References	63D-45251-01 / 63D-45251-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Contoured channel-shaped block with reinforcing ribs
Mounting Configuration	Two recessed fastening holes
Alternative Tecnoseal Reference	01651

Available Versions

Tecnoseal Code	Material	Weight	EAN
01131 (Osculati 43.264.00)	Zinc	0.57 kg (1.26 lbs)	8033837065364
01131AL	Aluminium	0.22 kg (0.49 lbs)	8058774839991
01131MG	Magnesium	0.14 kg (0.31 lbs)	8052744983660

Dimensions and Mounting Specifications

Overall Length (l)	85 mm (3.35 in)
Width (a)	62 mm (2.44 in)
Height (h)	32 mm (1.26 in)
Mounting-Hole Spacing (i)	46 mm (1.81 in)
Fastening-Hole Diameter (Ø)	7 mm (0.28 in)

Compatibility and Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 40–50 HP
Application: Outboard engine mounting bracket
Yamaha OEM Part Numbers: 63D-45251-01, 63D-45251-00
Zinc Version: Tecnoseal 01131
Aluminium Version: Tecnoseal 01131AL
Magnesium Version: Tecnoseal 01131MG
Alternative Tecnoseal Reference: 01651

Key Features

Designed for compatible Yamaha 40–50 HP outboard motors.
Corresponds to Yamaha OEM part numbers 63D-45251-01 and 63D-45251-00.
Contoured sacrificial block anode with a channel-shaped mounting profile.
Two recessed fastening holes and reinforcing ribs.
Helps protect metallic outboard engine bracket components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall dimensions: 85 × 62 × 32 mm.
Mounting-hole spacing: 46 mm.
Fastening-hole diameter: 7 mm.
Identical dimensions and mounting geometry for all three material versions.
Additional Tecnoseal catalogue reference: 01651.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing bracket anode dimensions. Compare the channel-shaped body, mounting-hole spacing and fastening-hole configuration with the original component. Select the appropriate sacrificial anode material according to the vessel's operating water conditions.
