Tecnoseal 6E0-45251-12 Yamaha 8–300 HP Engine Anode Plate M6 (Up to 1989)

ID 1405483

$ 12.96

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

20 g
100 g
40 g

The Tecnoseal 01123-1 series consists of sacrificial engine anode plates designed for Yamaha 8–300 HP outboard motors manufactured up to 1989, corresponding to OEM part number 6E0-45251-12. Each anode features an elongated body with rounded ends and two M6 threaded mounting holes, helping protect metallic outboard engine components against galvanic corrosion. The plate measures 63 mm in length, 25 mm in width and 14 mm in height, with 26 mm mounting-hole spacing. Three material versions are available: zinc (01123-1, 100 g), aluminium (01123-1AL, 40 g) and magnesium (01123-1MG, 20 g). All versions share the same dimensions and mounting configuration, allowing the appropriate sacrificial material to be selected for the vessel's operating water conditions.

Description
Ask a Question

Tecnoseal 6E0-45251-12 Yamaha 8–300 HP Engine Anode Plate M6 (Up to 1989)

The Tecnoseal 01123-1 series consists of sacrificial engine anode plates designed for Yamaha 8–300 HP outboard motors manufactured up to 1989. Corresponding to Yamaha OEM part number 6E0-45251-12, these replacement anodes help protect metallic outboard engine components against galvanic corrosion by providing a replaceable sacrificial metal surface.

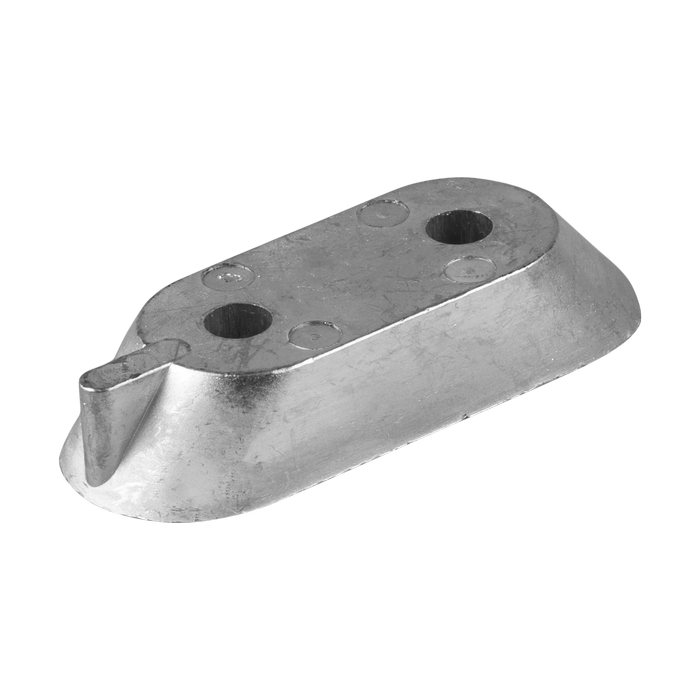

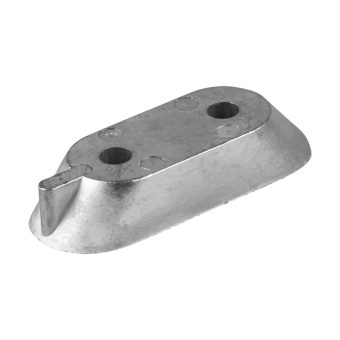

Each anode features a compact, elongated body with rounded ends, a recessed mounting section and two threaded fastening holes arranged along its length. The M6 threaded mounting configuration distinguishes this series from similar Yamaha anode plates with plain mounting holes. The sacrificial metal helps reduce corrosion of surrounding metallic components and allows the anode to be replaced during routine engine maintenance.

The plate measures 63 mm (2.48 in) in overall length, 25 mm (0.98 in) in width and 14 mm (0.55 in) in height. The mounting-hole spacing (i) is 26 mm (1.02 in), and the specified mounting thread (m) is M6.

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01123-1, weighs 100 g and corresponds to Osculati 43.260.43. The aluminium version, Tecnoseal 01123-1AL, weighs 40 g and corresponds to Osculati 43.260.44. The magnesium version, Tecnoseal 01123-1MG, weighs 20 g and corresponds to Osculati 43.260.45. These material options allow the appropriate sacrificial anode to be selected according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Anode Plate
Compatible Manufacturer	Yamaha
Compatible Outboards	8–300 HP
Production Period	Up to 1989
Yamaha OEM Reference	6E0-45251-12
Available Materials	Zinc, Aluminium, Magnesium
Construction	Elongated plate with rounded ends
Mounting Configuration	Two M6 threaded mounting holes

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01123-1	Zinc	0.10 kg (0.22 lbs)	43.260.43
01123-1AL	Aluminium	0.04 kg (0.09 lbs)	43.260.44
01123-1MG	Magnesium	0.02 kg (0.04 lbs)	43.260.45

Dimensions and Mounting Specifications

Overall Length (l)	63 mm (2.48 in)
Width (a)	25 mm (0.98 in)
Height (h)	14 mm (0.55 in)
Mounting-Hole Spacing (i)	26 mm (1.02 in)
Thread Size (m)	M6

Product Codes and EAN

Tecnoseal Code	EAN
01123-1	8059617815691
01123-1AL	8059617815707
01123-1MG	8059617818326

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Outboard Power Range: 8–300 HP
Production Period: Up to 1989
Yamaha OEM Part Number: 6E0-45251-12
Zinc Version: Tecnoseal 01123-1 / Osculati 43.260.43
Aluminium Version: Tecnoseal 01123-1AL / Osculati 43.260.44
Magnesium Version: Tecnoseal 01123-1MG / Osculati 43.260.45

Key Features

Designed for compatible Yamaha 8–300 HP outboard motors manufactured up to 1989.
Replacement for Yamaha OEM part number 6E0-45251-12.
Compact sacrificial anode plate with rounded ends.
Two M6 threaded fastening holes arranged along the body.
Helps protect metallic outboard engine components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall dimensions: 63 × 25 × 14 mm.
Mounting-hole spacing: 26 mm.
Mounting thread: M6.
Zinc cross-reference: Osculati 43.260.43.
Aluminium cross-reference: Osculati 43.260.44.
Magnesium cross-reference: Osculati 43.260.45.

Compatibility Note: Before ordering, verify the Yamaha outboard model, production year, OEM part number and existing anode dimensions. Compare the M6 threaded mounting configuration and 26 mm hole spacing with the original component, and select the appropriate sacrificial material for the vessel's operating water conditions.
