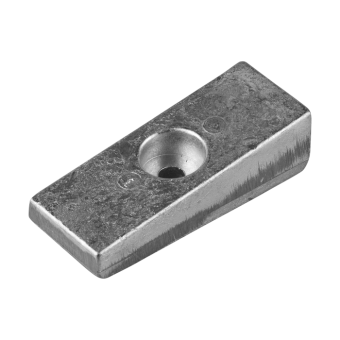

Tecnoseal Yamaha 75 HP XR6 Wedge Anode 77 × 30 mm

Name: Tecnoseal Yamaha 75 HP XR6 Wedge Anode 77 × 30 mm
SKU: Tecnoseal 01129

ID 1405503

$ 19.41

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

250 g
60 g
90 g

The Tecnoseal 01129 series consists of sacrificial wedge anodes designed for Yamaha 75 HP XR6 outboard motors. Each anode features an elongated, wedge-shaped body with a central countersunk mounting hole, helping protect water-exposed metallic engine components against galvanic corrosion. The anode measures 77 mm in length and 30 mm in width, with a maximum height of 22 mm and a minimum height of 12 mm. The mounting recess diameter is 17 mm, with a 7 mm central through-hole. Three material versions are available: zinc (01129, 250 g), aluminium (01129AL, 90 g) and magnesium (01129MG, 60 g). All share the same dimensions and mounting configuration. The same anode design is also listed under Tecnoseal catalogue references 00825 and 01405.

Description
Ask a Question

Tecnoseal Yamaha 75 HP XR6 Wedge Anode 77 × 30 mm

The Tecnoseal 01129 series consists of sacrificial wedge anodes designed for Yamaha 75 HP XR6 outboard motors. These replacement anodes provide corrosion protection for compatible water-exposed metallic engine components by serving as a replaceable sacrificial metal surface.

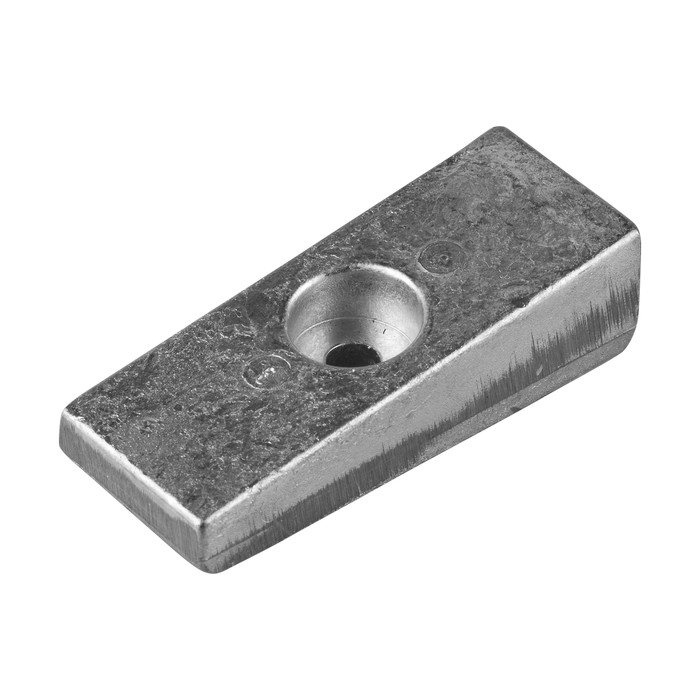

Each anode features an elongated, rectangular wedge-shaped body with a sloping profile and a central countersunk mounting hole. The tapered design has different heights at opposite ends, allowing it to fit the corresponding mounting position on compatible engine assemblies. The recessed mounting section accommodates the fastening arrangement shown in the Tecnoseal catalogue.

The anode measures 77 mm (3.03 in) in overall length and 30 mm (1.18 in) in width. Its wedge profile measures 22 mm (0.87 in) at the higher end and 12 mm (0.47 in) at the lower end. The central mounting recess has a diameter of 17 mm (0.67 in), while the through-hole diameter is 7 mm (0.28 in).

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01129, weighs 250 g; the aluminium version, Tecnoseal 01129AL, weighs 90 g; and the magnesium version, Tecnoseal 01129MG, weighs 60 g. The choice of sacrificial material depends on the vessel's operating water conditions.

The same wedge anode design is also listed under Tecnoseal catalogue references 00825 and 01405. These additional references can help identify corresponding anodes when comparing replacement parts across the Tecnoseal catalogue.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Wedge Anode
Compatible Manufacturer	Yamaha
Compatible Engine	75 HP XR6
Available Materials	Zinc, Aluminium, Magnesium
Construction	Rectangular wedge-shaped sacrificial anode
Mounting Configuration	Central countersunk mounting hole
Additional Tecnoseal References	00825, 01405

Available Versions

Tecnoseal Code	Material	Weight	EAN
01129	Zinc	0.25 kg (0.55 lbs)	8033837065340
01129AL	Aluminium	0.09 kg (0.20 lbs)	8059617815769
01129MG	Magnesium	0.06 kg (0.13 lbs)	8059617815776

Dimensions and Mounting Specifications

Length (l)	77 mm (3.03 in)
Width (a)	30 mm (1.18 in)
Maximum Height (h)	22 mm (0.87 in)
Minimum Height (h1)	12 mm (0.47 in)
Mounting Recess Diameter (Ø)	17 mm (0.67 in)
Central Through-Hole Diameter (Ø1)	7 mm (0.28 in)

Compatibility and Cross-References

Compatible Manufacturer: Yamaha
Engine: 75 HP XR6
Application: Wedge-shaped engine anode
Zinc Version: Tecnoseal 01129
Aluminium Version: Tecnoseal 01129AL
Magnesium Version: Tecnoseal 01129MG
Additional Tecnoseal Catalogue References: 00825, 01405

Key Features

Designed for Yamaha 75 HP XR6 outboard applications.
Elongated wedge-shaped sacrificial anode with a sloping profile.
Central countersunk mounting hole.
Helps protect water-exposed metallic components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall length: 77 mm.
Width: 30 mm.
Maximum height: 22 mm.
Minimum height: 12 mm.
Mounting recess diameter: 17 mm.
Central through-hole diameter: 7 mm.
Additional Tecnoseal references: 00825 and 01405.

Compatibility Note: Before ordering, verify the engine model and compare the existing anode's dimensions, wedge profile and mounting-hole configuration. Select the appropriate sacrificial material for the vessel's operating water conditions.
