Tecnoseal 825171 Yamaha 30–50 HP Outboard Bar Anode

Tecnoseal 825171 Yamaha 30–50 HP Outboard Bar Anode

The Tecnoseal 01126 series consists of sacrificial bar anodes designed for Yamaha 30–50 HP outboard motors. Corresponding to original part number 825171, these replacement anodes help protect metallic outboard components against galvanic corrosion by providing a replaceable sacrificial metal surface.

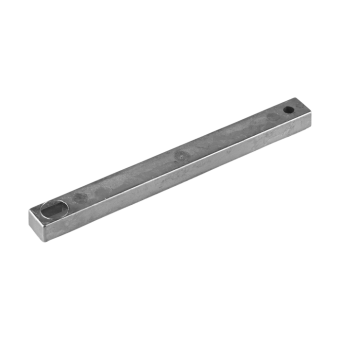

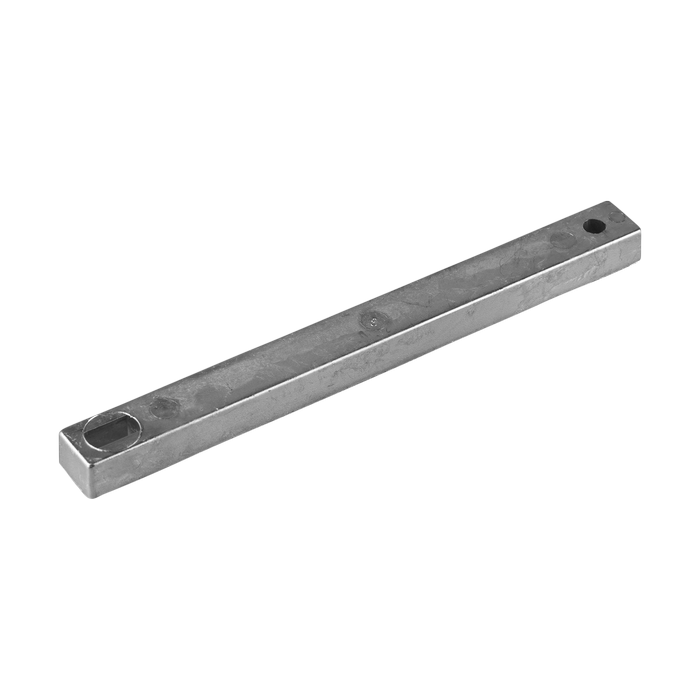

Each anode features a straight, elongated rectangular body with an oblong mounting slot at one end and a circular fastening hole at the opposite end. The mounting arrangement is designed for compatible Yamaha outboard installations, while the sacrificial anode material helps reduce corrosion of surrounding metallic components exposed to water.

The bar measures 194 mm (7.64 in) in overall length, 19 mm (0.75 in) in width and 12 mm (0.47 in) in height. The mounting-hole spacing (i) measures 166 mm (6.54 in), with a 7 mm (0.28 in) fastening-hole diameter and an additional 14 mm (0.55 in) mounting dimension (b). These measurements correspond to the technical drawing supplied in the Tecnoseal catalogue.

Two material versions are available. The zinc version, Tecnoseal 01126, weighs 0.29 kg (0.64 lbs), while the magnesium version, Tecnoseal 01126MG, weighs 0.07 kg (0.15 lbs). Both versions share identical dimensions and mounting geometry, allowing the appropriate sacrificial material to be selected according to the vessel's operating water conditions. The same anode design is also listed under Tecnoseal catalogue reference 00822.

Technical Specifications

Available Versions

Dimensions and Mounting Specifications

Compatibility and Cross-References

• Compatible Manufacturer: Yamaha
• Outboard Power Range: 30–50 HP
• Application: Outboard bar anode
• Original Part Number: 825171
• Zinc Version: Tecnoseal 01126
• Magnesium Version: Tecnoseal 01126MG
• Alternative Tecnoseal Reference: 00822

Key Features

• Designed for compatible Yamaha 30–50 HP outboard motors.
• Corresponds to original part number 825171.
• Straight rectangular sacrificial anode with an elongated mounting slot and a circular fastening hole.
• Helps protect metallic outboard components against galvanic corrosion.
• Available in zinc and magnesium versions.
• Overall dimensions: 194 × 19 × 12 mm.
• Mounting-hole spacing: 166 mm.
• Fastening-hole diameter: 7 mm.
• Additional mounting dimension (b): 14 mm.
• Alternative Tecnoseal catalogue reference: 00822.

Compatibility Note: Before ordering, verify the Yamaha outboard model, original part number and existing anode dimensions. Compare the bar length, mounting-hole spacing and slot configuration with the original component, and select the appropriate sacrificial material for the vessel's operating water conditions.
