Tecnoseal 838929 Volvo Penta Pencil Anode Ø15 x 30 mm for Engine Cooler with Optional Brass Plug

Name: Tecnoseal 838929 Volvo Penta Pencil Anode Ø15 x 30 mm for Engine Cooler with Optional Brass Plug
SKU: Tecnoseal 00714

ID 1405247

$ 34.03

1-2 weeks delivery time

Type:

Brass
Zinc
Magnesium
Aluminium

Item:

With Brass Plug 60 g
Anode 7/16 UNC 30 g
Anode 7/16 UNC 10 g
Anode M8 20 g
Anode M8 10 g
With Brass Plug 80 g
Plug M8 40 g
Plug 7/16 UNC 50 g

The Tecnoseal 00714 series includes sacrificial pencil anodes and brass plug components for compatible Volvo Penta engine coolers, corresponding to OEM reference 838929. The cylindrical anodes measure 15 mm in diameter and 30 mm in length. Standard 00714 versions feature a 10 mm threaded stud with a 7/16" UNC connection, while 00714-1 versions use an M8 threaded connection. Individual anodes are available in zinc, aluminium and magnesium, with weights ranging from 10 to 30 g. Complete zinc (00714T), aluminium (00714TAL) and magnesium (00714TMG) assemblies include a brass plug with a 1/2" BSPT external thread and weigh 60–80 g. Replacement brass plugs are available separately as 00714TPM with an M8 male stud and 00714TPF with a 7/16" UNC connection. All versions are intended for compatible Volvo Penta engine cooling system applications.

Description
Ask a Question

Tecnoseal 838929 Volvo Penta Pencil Anode Ø15 x 30 mm for Engine Cooler with Optional Brass Plug

The Tecnoseal 00714 series includes sacrificial pencil anodes and matching brass plug components for compatible Volvo Penta engine cooling systems. The catalogue identifies Volvo Penta OEM reference 838929 for this product family. The range includes zinc, aluminium and magnesium anodes, complete assemblies with brass plugs, and separate replacement brass plugs.

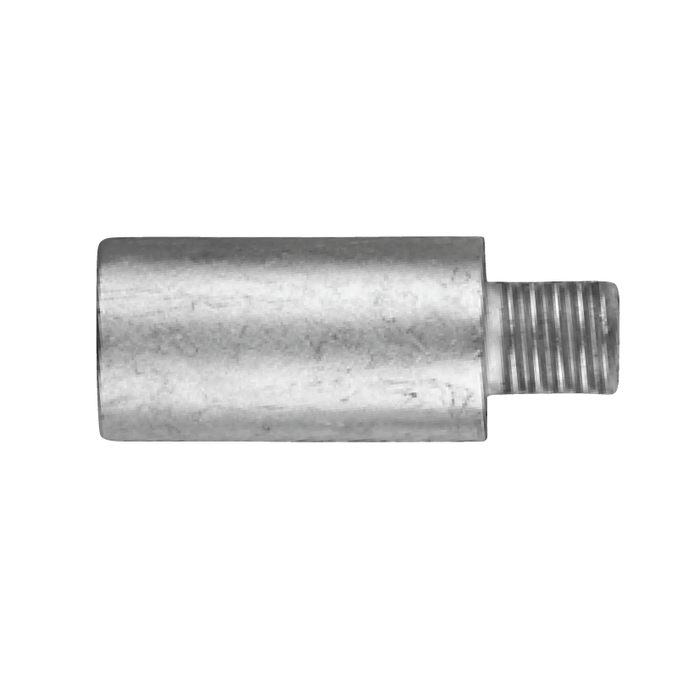

The individual anodes have a cylindrical body measuring 15 mm in diameter and 30 mm in length. Standard 00714 versions feature a 10 mm threaded stud with a 7/16" UNC connection, while the alternative 00714-1 versions have an M8 threaded mounting configuration. Complete assemblies are supplied with a brass plug featuring a 1/2" BSPT tapered external thread. These components provide sacrificial corrosion protection for compatible metallic parts of marine engine cooling systems.

Technical Specifications

Manufacturer	Tecnoseal
Product Family	00714
Product Type	Pencil Anode / Complete Anode Assembly / Brass Plug
Compatible Manufacturer	Volvo Penta
Application	Engine Cooler / Heat Exchanger
OEM Reference	838929
Anode Materials	Zinc, Aluminium, Magnesium
Plug Material	Brass
Anode Diameter (Ø)	15 mm (0.59 in)
Anode Body Length (l)	30 mm (1.18 in)
Standard Stud Length (l1)	10 mm (0.39 in)
Standard Anode Thread	7/16" UNC
Alternative Anode Connection	M8
Brass Plug External Thread	1/2" BSPT
Brass Plug Dimension (c)	13 mm (0.51 in)

Available Variants

Tecnoseal Code	Material	Configuration	Weight
00714	Zinc	Anode Only, 7/16" UNC	0.03 kg (0.07 lbs)
00714AL	Aluminium	Anode Only, 7/16" UNC	0.01 kg (0.02 lbs)
00714MG	Magnesium	Anode Only, 7/16" UNC	0.01 kg (0.02 lbs)
00714-1	Zinc	Anode Only, M8	0.02 kg (0.04 lbs)
00714-1AL	Aluminium	Anode Only, M8	0.01 kg (0.02 lbs)
00714-1MG	Magnesium	Anode Only, M8	0.01 kg (0.02 lbs)
00714T	Zinc + Brass	Complete with Brass Plug	0.08 kg (0.18 lbs)
00714TAL	Aluminium + Brass	Complete with Brass Plug	0.06 kg (0.13 lbs)
00714TMG	Magnesium + Brass	Complete with Brass Plug	0.06 kg (0.13 lbs)
00714TPM	Brass	Plug Only, M8 Male Stud	0.04 kg (0.09 lbs)
00714TPF	Brass	Plug Only, 7/16" UNC	0.05 kg (0.11 lbs)

Product Codes and EAN

Tecnoseal Code	EAN
00714	8033837063926
00714AL	8059617815059
00714MG	8058774839441
00714-1	8059617815066
00714-1AL	8059617815073
00714-1MG	8052530702260
00714T	8033837063933
00714TAL	8052744984636
00714TMG	8052744983479
00714TPM	8033837063940
00714TPF	8033837063957

Configuration Options

00714 / 00714AL / 00714MG: Zinc, aluminium or magnesium pencil anode only, Ø15 x 30 mm, with a 7/16" UNC threaded stud.
00714-1 / 00714-1AL / 00714-1MG: Zinc, aluminium or magnesium pencil anode only, Ø15 x 30 mm, with an M8 threaded mounting connection.
00714T: Complete zinc pencil anode assembly with brass plug and 1/2" BSPT external thread.
00714TAL: Complete aluminium pencil anode assembly with brass plug and 1/2" BSPT external thread.
00714TMG: Complete magnesium pencil anode assembly with brass plug and 1/2" BSPT external thread.
00714TPM: Brass plug only, featuring a 1/2" BSPT external thread and an M8 male connection. No anode included.
00714TPF: Brass plug only, featuring a 1/2" BSPT external thread and 7/16" UNC connection. No anode included.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Application: Engine Cooler / Heat Exchanger
OEM Reference: 838929
Standard Anodes: 00714, 00714AL, 00714MG
M8 Anodes: 00714-1, 00714-1AL, 00714-1MG
Complete Assemblies: 00714T, 00714TAL, 00714TMG
Replacement Brass Plugs: 00714TPM, 00714TPF

Key Features

Sacrificial pencil anode components for compatible Volvo Penta engine coolers.
Available in zinc, aluminium and magnesium.
Standard anode dimensions: Ø15 x 30 mm.
Two mounting connection types: 7/16" UNC and M8.
Individual anodes available without brass plugs.
Complete anode assemblies available with brass plugs.
Brass plugs feature 1/2" BSPT external connections.
Separate replacement brass plugs are available.
Help protect metallic cooling system components against galvanic corrosion.
Volvo Penta OEM reference: 838929.

Ordering Note: The 00714 and 00714-1 series use different mounting connections. Verify the required thread specification before ordering. The 00714TPM and 00714TPF products are brass plugs only and do not include sacrificial anodes.
