Tecnoseal 832989 Volvo Penta TAMD 200-250-270 Pencil Anode Ø15.5 x 40 mm with Optional Brass Plug

Name: Tecnoseal 832989 Volvo Penta TAMD 200-250-270 Pencil Anode Ø15.5 x 40 mm with Optional Brass Plug
SKU: Tecnoseal 00713

ID 1405241

$ 30.04

1-2 weeks delivery time

Type:

Brass
Zinc
Magnesium

Item:

Anode Only 60 g
Anode Only 20 g
With Brass Plug 100 g
With Brass Plug 60 g
Plug Only 40 g

The Tecnoseal 00713 series includes pencil anodes and brass plug components for engine coolers on compatible Volvo Penta TAMD 200, 250 and 270 applications, corresponding to OEM reference 832989. The zinc (00713) and magnesium (00713MG) anodes are supplied separately, with a cylindrical body measuring 15.5 mm in diameter and 40 mm in length, plus a 10 mm threaded stud with 7/16" UNC thread. Complete assemblies are available as 00713T (zinc anode with brass plug, 100 g) and 00713TMG (magnesium anode with brass plug, 60 g), using a 1/2" BSPT external plug thread. The brass plug is also available separately as 00713TP (40 g). Individual anodes weigh 60 g (zinc) and 20 g (magnesium).

Description
Ask a Question

Tecnoseal 832989 Volvo Penta TAMD 200-250-270 Pencil Anode Ø15.5 x 40 mm with Optional Brass Plug

The Tecnoseal 00713 series includes sacrificial pencil anodes and matching brass plug components for engine coolers on compatible Volvo Penta TAMD 200, 250 and 270 applications. The catalogue identifies Volvo Penta OEM reference 832989 for this product family. The range includes zinc and magnesium anodes, complete anode assemblies with brass plugs, and a replacement brass plug supplied separately.

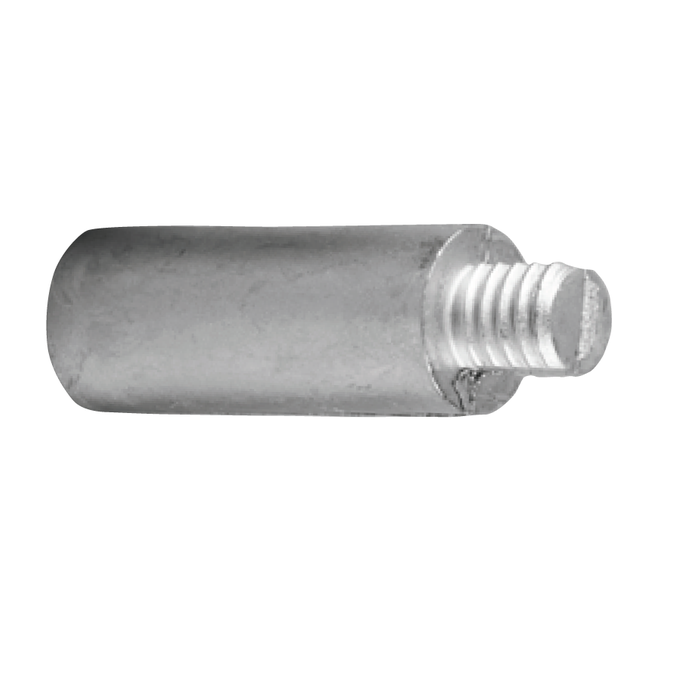

The individual pencil anodes have a cylindrical body measuring 15.5 mm in diameter (Ø) and 40 mm in length (l). The mounting stud extends 10 mm (l1) and features a 7/16" UNC thread (b). For complete assemblies, the matching brass plug has a 1/2" BSPT tapered external thread (a) and a 7/16" UNC internal connection for the anode. These components are intended for sacrificial corrosion protection within compatible engine cooling systems.

Technical Specifications

Manufacturer	Tecnoseal
Product Family	00713
Product Type	Pencil Anode / Anode with Brass Plug / Brass Plug
Compatible Manufacturer	Volvo Penta
Compatible Applications	TAMD 200, 250, 270
OEM Reference	832989
Anode Materials	Zinc, Magnesium
Plug Material	Brass
Anode Diameter (Ø)	15.50 mm (0.61 in)
Anode Body Length (l)	40 mm (1.57 in)
Anode Stud Length (l1)	10 mm (0.39 in)
Anode Thread (b)	7/16" UNC
Brass Plug External Thread (a)	1/2" BSPT (Tapered)
Brass Plug Internal Thread (b)	7/16" UNC
Brass Plug Dimension (c)	13 mm (0.51 in)

Available Variants

Tecnoseal Code	Material	Configuration	Weight
00713	Zinc	Anode Only	0.06 kg (0.13 lbs)
00713MG	Magnesium	Anode Only	0.02 kg (0.04 lbs)
00713T	Zinc + Brass	Complete with Brass Plug	0.10 kg (0.22 lbs)
00713TMG	Magnesium + Brass	Complete with Brass Plug	0.06 kg (0.13 lbs)
00713TP	Brass	Brass Plug Only	0.04 kg (0.09 lbs)

Product Codes and EAN

Tecnoseal Code	EAN
00713	8033837063896
00713MG	8052744983455
00713T	8033837063902
00713TMG	8052744983462
00713TP	8033837063919

Configuration Options

00713: Zinc sacrificial pencil anode only, Ø15.5 x 40 mm, with 7/16" UNC threaded stud.
00713MG: Magnesium sacrificial pencil anode only, with identical body dimensions and mounting thread.
00713T: Complete assembly consisting of a zinc pencil anode and brass plug with 1/2" BSPT external connection.
00713TMG: Complete assembly consisting of a magnesium pencil anode and brass plug with 1/2" BSPT external connection.
00713TP: Replacement brass plug only, featuring a 1/2" BSPT external thread and 7/16" UNC internal connection. No sacrificial anode is included.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Engine Cooler Applications: TAMD 200, 250, 270
OEM Reference: 832989
Tecnoseal Anode References: 00713, 00713MG
Complete Assembly References: 00713T, 00713TMG
Brass Plug Reference: 00713TP

Key Features

Pencil anode components for compatible Volvo Penta engine coolers.
Available in zinc and magnesium materials.
Individual anodes can be purchased without the brass plug.
Complete zinc and magnesium assemblies with brass plugs are available.
Replacement brass plug is available separately.
Anode body diameter: 15.5 mm.
Anode body length: 40 mm.
Anode mounting thread: 7/16" UNC.
Brass plug external thread: 1/2" BSPT.
Helps protect compatible cooling system components against galvanic corrosion.

Ordering Note: Select the required material and configuration carefully. The 00713 and 00713MG versions include the sacrificial anode only. The 00713T and 00713TMG versions include the anode with brass plug, while 00713TP is the brass plug only. Verify the OEM reference and thread specifications before ordering.
