Tecnoseal 3855412 3862193 Volvo Penta SX DPS Cavitation Plate Anode 146 mm

ID 1405284

$ 77.41

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

250 g
410 g
970 g

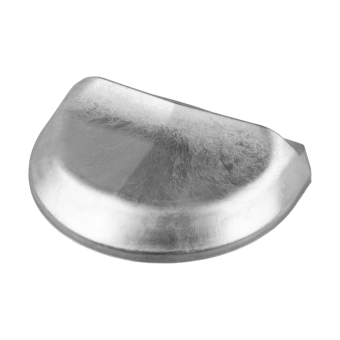

The Tecnoseal 00726 series consists of sacrificial cavitation plate anodes compatible with Volvo Penta SX and DPS sterndrives, corresponding to OEM part numbers 3855412 and 3862193. Each anode features a curved, semicircular plate-shaped body with mounting holes and measures 146 mm in length (l), 104 mm in width (a) and 38 mm in height (h). The additional dimension (i) is 113 mm, and the mounting thread (m) is 1/4" UNC. Available in zinc (00726, 0.97 kg), aluminium (00726AL, 0.41 kg) and magnesium (00726MG, 0.25 kg), these anodes help protect compatible Volvo Penta sterndrive components against galvanic corrosion. All three versions share identical dimensions and mounting specifications.

Description
Ask a Question

Tecnoseal 3855412 3862193 Volvo Penta SX DPS Cavitation Plate Anode 146 mm

The Tecnoseal 00726 series includes sacrificial cavitation plate anodes designed for compatibility with Volvo Penta SX and DPS sterndrives. These anodes correspond to Volvo Penta OEM part numbers 3855412 and 3862193 and help protect compatible submerged metallic sterndrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.554.11, 43.554.09 and 43.554.10, respectively.

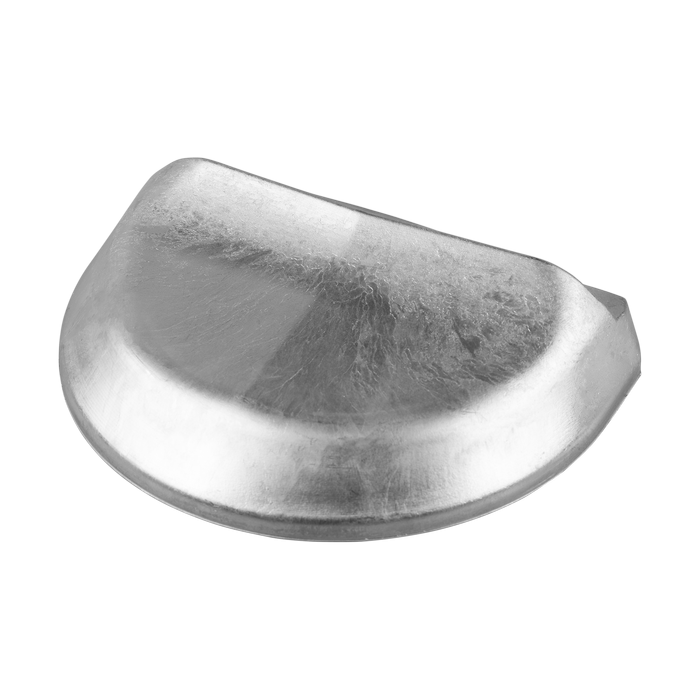

Each anode features a curved semicircular plate-shaped body with mounting holes and a recessed inner section. According to the Tecnoseal catalogue, the anode measures 146 mm in length, 104 mm in width and 38 mm in height. The additional dimension (i) is 113 mm, and the mounting thread specification (m) is 1/4" UNC. All three materials share identical dimensions and mounting geometry, with different weights according to the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Cavitation Plate Anode
Compatible Manufacturer	Volvo Penta
Compatible Sterndrives	SX, DPS
Volvo Penta OEM References	3855412, 3862193
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	146 mm (5.75 in)
Width (a)	104 mm (4.09 in)
Height (h)	38 mm (1.50 in)
Additional Dimension (i)	113 mm (4.45 in)
Mounting Thread (m)	1/4" UNC

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00726	Zinc	0.97 kg (2.14 lbs)	43.554.11
00726AL	Aluminium	0.41 kg (0.90 lbs)	43.554.09
00726MG	Magnesium	0.25 kg (0.55 lbs)	43.554.10

Product Codes and EAN

Tecnoseal Code	EAN
00726	8033837064091
00726AL	8059617815165
00726MG	8059617815172

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Sterndrives: SX, DPS
Volvo Penta OEM References: 3855412, 3862193
Zinc Version: Tecnoseal 00726 / Osculati 43.554.11
Aluminium Version: Tecnoseal 00726AL / Osculati 43.554.09
Magnesium Version: Tecnoseal 00726MG / Osculati 43.554.10

Key Features

Sacrificial cavitation plate anode for Volvo Penta SX and DPS sterndrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Curved semicircular body with mounting holes.
Length: 146 mm.
Width: 104 mm.
Height: 38 mm.
Additional dimension (i): 113 mm.
Mounting thread: 1/4" UNC.
Identical dimensions across all three material versions.
Volvo Penta OEM references: 3855412 and 3862193.
Osculati cross-references: 43.554.11 (zinc), 43.554.09 (aluminium) and 43.554.10 (magnesium).

Compatibility Note: Verify OEM part numbers 3855412 or 3862193 and the mounting dimensions against the existing Volvo Penta sterndrive anode before ordering.
