Tecnoseal 3854130 Volvo Penta SX DPS Transom Plate Anode

ID 1405237

$ 69.96

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

270 g
410 g
1060 g

The Tecnoseal 00718 series consists of sacrificial transom plate anodes compatible with Volvo Penta SX and DPS sterndrives, corresponding to OEM part number 3854130 and additional Tecnoseal reference 00922. Each anode features a rectangular body with recessed mounting holes and measures 91 mm in length (l), 79 mm in width (a), 47 mm in height (h) and 38 mm in additional height (h1). The mounting dimensions include 51 mm spacing (i), 9 mm hole diameter (Ø), 20 mm counterbore diameter (Ø1) and 10 mm additional diameter (Ø2). Available in zinc (00718, 1060 g), aluminium (00718AL, 410 g) and magnesium (00718MG, 270 g), these anodes provide sacrificial corrosion protection for compatible Volvo Penta transom and sterndrive components. All three variants share identical dimensions. Copy

Description
Ask a Question

Tecnoseal 3854130 Volvo Penta SX DPS Transom Plate Anode

The Tecnoseal 00718 series includes sacrificial transom plate anodes designed for Volvo Penta SX and DPS sterndrives. These anodes correspond to Volvo Penta OEM part number 3854130 and additional Tecnoseal catalogue reference 00922. They help protect compatible metallic transom and sterndrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.541.30, 43.541.31 and 43.541.32, respectively.

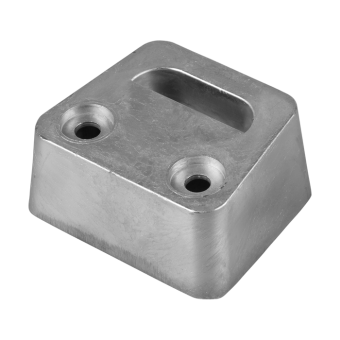

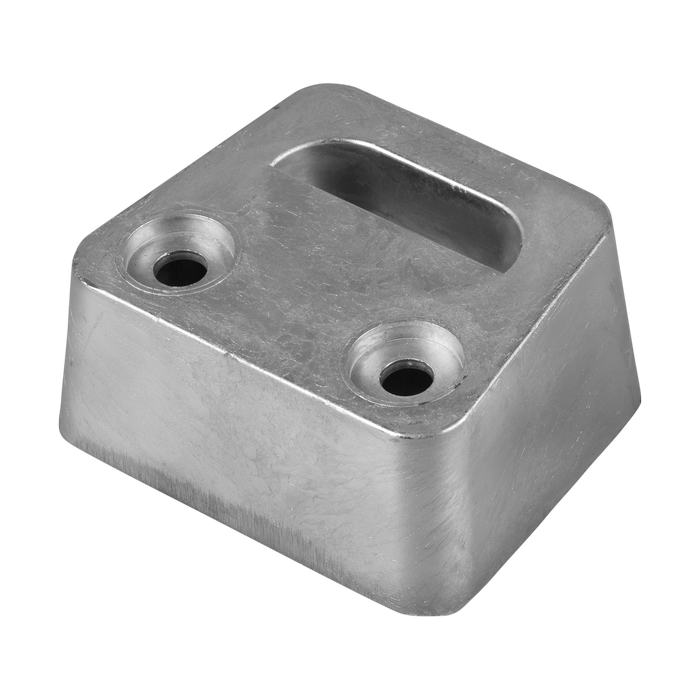

Each anode features a rectangular, block-shaped body with rounded corners, two recessed mounting holes and an elongated opening. According to the Tecnoseal catalogue, the anode measures 91 mm in length, 79 mm in width and 47 mm in overall height, with an additional height (h1) of 38 mm. The mounting hole spacing (i) is 51 mm, with a 9 mm hole diameter (Ø), a 20 mm counterbore diameter (Ø1) and a 10 mm additional diameter (Ø2). Zinc, aluminium and magnesium versions share identical dimensions and mounting configurations.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Plate Anode
Compatible Manufacturer	Volvo Penta
Compatible Sterndrives	SX, DPS
Volvo Penta OEM Reference	3854130
Additional Tecnoseal Reference	00922
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	91 mm (3.58 in)
Width (a)	79 mm (3.11 in)
Height (h)	47 mm (1.85 in)
Additional Height (h1)	38 mm (1.50 in)
Mounting Hole Spacing (i)	51 mm (2.01 in)
Hole Diameter (Ø)	9 mm (0.35 in)
Counterbore Diameter (Ø1)	20 mm (0.79 in)
Additional Diameter (Ø2)	10 mm (0.39 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00718	Zinc	1.06 kg (2.34 lbs)	43.541.30
00718AL	Aluminium	0.41 kg (0.90 lbs)	43.541.31
00718MG	Magnesium	0.27 kg (0.60 lbs)	43.541.32

Product Codes and EAN

Tecnoseal Code	EAN
00718	8033837064015
00718AL	8059617815110
00718MG	8059617815127

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Sterndrives: SX, DPS
Volvo Penta OEM Reference: 3854130
Additional Tecnoseal Reference: 00922
Zinc Version: Tecnoseal 00718 / Osculati 43.541.30
Aluminium Version: Tecnoseal 00718AL / Osculati 43.541.31
Magnesium Version: Tecnoseal 00718MG / Osculati 43.541.32

Key Features

Sacrificial transom plate anode compatible with Volvo Penta SX and DPS sterndrives.
Available in zinc, aluminium and magnesium.
Helps protect metallic transom and sterndrive components against galvanic corrosion.
Rectangular block-shaped body with rounded corners.
Two recessed mounting holes and an elongated opening.
Overall dimensions: 91 x 79 x 47 mm.
Additional height: 38 mm.
Mounting hole spacing: 51 mm.
Hole diameter: 9 mm.
Counterbore diameter: 20 mm.
Additional diameter: 10 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 3854130.
Additional Tecnoseal reference: 00922.
Osculati cross-references: 43.541.30 (zinc), 43.541.31 (aluminium) and 43.541.32 (magnesium).

Compatibility Note: Verify OEM part number 3854130 and the mounting dimensions against the existing transom plate anode before ordering.
