Tecnoseal Zinc Volvo Penta Propeller Nut Anodes, Shaft Ø25–45 mm

ID 1405265

$ 57.57

1-2 weeks delivery time

Shaft Diameter:

25
30
35
35-40
40-45
45

Size:

30x2
16x2
20x2.5
16x1.5
24x1.5
24x2
3/4" UNC
7/8" UNC
24x3
1" UNC
30x3.5

Item:

300 g
500 g
330 g
460 g
430 g
540 g
310 g
280 g
510 g
480 g

Tecnoseal zinc propeller nut anodes compatible with Volvo Penta fixed-propeller installations, available for shaft sizes from Ø25 to Ø45 mm. The range includes multiple metric, UNC and Whitworth thread configurations, including 16x1.5, 16x2, 20x1.5, 20x2.5, 24x1.5, 24x2, 24x3, 30x2 and 30x3.5, as well as 3/4", 7/8" and 1" thread options. Depending on the model, outside diameters range from Ø37 to Ø47 mm, heights from 71 to 80 mm and weights from 0.28 to 0.54 kg. Select the required version according to shaft diameter and thread specification.

Description
Ask a Question

Tecnoseal Zinc Propeller Nut Anodes Compatible with Volvo Penta – Fixed Propeller, Shaft Ø25–45 mm

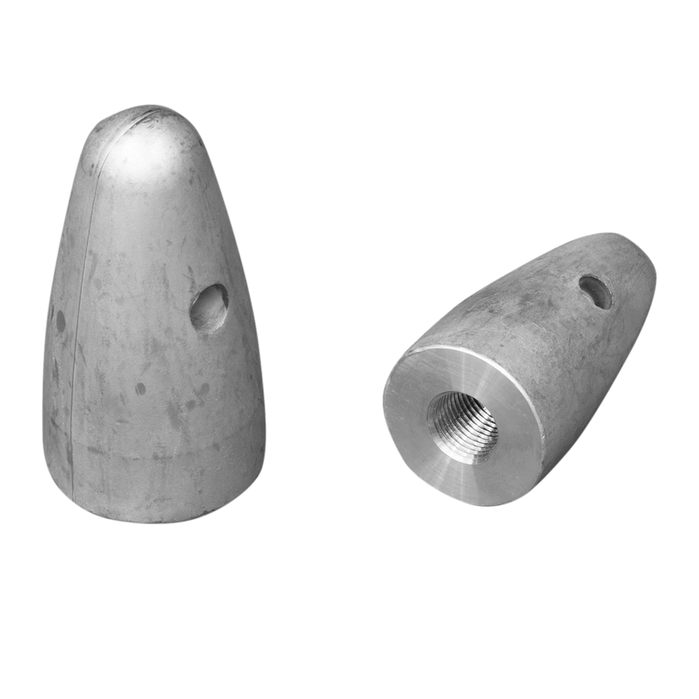

The Tecnoseal Propeller Nut Anodes are zinc (ZN) anodes compatible with Volvo Penta fixed-propeller installations. The range covers shaft sizes from Ø25 to Ø45 mm and includes a variety of metric, UNC and Whitworth thread configurations.

Model selection is based primarily on the propeller shaft diameter and thread specification. Depending on the version, the anodes measure Ø37–47 mm in outside diameter, 71–80 mm in height and weigh between 0.28 and 0.54 kg.

Key Features

Brand: Tecnoseal
Compatibility: Volvo Penta fixed-propeller installations
Product Type: Propeller nut anode
Material: Zinc (ZN)
Shaft Size Range: Ø25–45 mm
Thread Types: Metric, UNC and Whitworth
Outside Diameter Range: Ø37–47 mm
Height Range: 71–80 mm
Weight Range: 0.28–0.54 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Thread m	Weight	Height h	h1	Outside Ø	Original Part No.
WE723	Ø25 mm	16x1.5	0.33 kg / 330 g	71 mm	32 mm	Ø37 mm	873411
00719-1	Ø25 mm	16x2	0.31 kg / 310 g	71 mm	32 mm	Ø37 mm	—
00719	Ø30 mm	3/4" UNC	0.30 kg / 300 g	71 mm	32 mm	Ø37 mm	—
WE728	Ø30 mm	20x1.5	0.29 kg / 290 g	71 mm	32 mm	Ø37 mm	873412
00719-2	Ø30 mm	20x2.5	0.30 kg / 300 g	71 mm	32 mm	Ø37 mm	—
WE727	Ø30 mm	20x2.5	0.54 kg / 540 g	80 mm	35 mm	Ø46 mm	—
00719-3	Ø30 mm	3/4" W	0.30 kg / 300 g	71 mm	32 mm	Ø37 mm	833913
00720	Ø35 mm	7/8" UNC	0.28 kg / 280 g	71 mm	32 mm	Ø37 mm	833915
00720-3	Ø35 mm	7/8" W	0.28 kg / 280 g	71 mm	32 mm	Ø37 mm	—
WE730	Ø35–40 mm	24x1.5	0.50 kg / 500 g	80 mm	35 mm	Ø47 mm	—
WE724	Ø35–40 mm	24x2	0.43 kg / 430 g	80 mm	35 mm	Ø47 mm	873413
00720-1	Ø35–40 mm	24x3	0.51 kg / 510 g	80 mm	35 mm	Ø47 mm	—
00721	Ø40–45 mm	1" UNC	0.48 kg / 480 g	80 mm	35 mm	Ø47 mm	828140
00721-3	Ø40–45 mm	1" W	0.49 kg / 490 g	80 mm	32 mm	Ø47 mm	—
WE725	Ø45 mm	30x2	0.30 kg / 300 g	80 mm	35 mm	Ø47 mm	873415
00721-1	Ø45 mm	30x3.5	0.46 kg / 460 g	80 mm	35 mm	Ø47 mm	—

Model Selection

Shaft Size: Match the anode to the propeller shaft diameter.
Thread m: Verify the exact metric, UNC or Whitworth thread specification.
h: Overall anode height.
h1: Lower section height shown in the Tecnoseal drawing.
Ø: Outside anode diameter.

Select the required Tecnoseal model according to shaft diameter and thread specification, then verify the corresponding outside diameter and height against the existing installation.
