Tecnoseal 823661 Volvo Penta Pencil Anode Ø26 x 44 mm for Engine Cooler with Optional Brass Plug

Name: Tecnoseal 823661 Volvo Penta Pencil Anode Ø26 x 44 mm for Engine Cooler with Optional Brass Plug
SKU: Tecnoseal 00716

ID 1405257

$ 43.80

1-2 weeks delivery time

Type:

Brass
Zinc
Magnesium
Aluminium

Item:

Anode Only 60 g
Anode Only 160 g
Anode Only 40 g
Plug Only 120 g
With Brass Plug 270 g
With Brass Plug 180 g
With Brass Plug 450 g

The Tecnoseal 00716 series includes sacrificial pencil anodes and brass plug assemblies for compatible Volvo Penta engine coolers, corresponding to OEM part number 823661. The cylindrical anode measures 26 mm in diameter and 44 mm in body length, with an 8 mm threaded stud featuring a 3/8" UNC connection. Individual anodes are available in zinc (00716, 160 g), aluminium (00716AL, 60 g) and magnesium (00716MG, 40 g). Complete assemblies are available with a brass plug featuring a 1" BSPP external thread: zinc (00716T, 270 g), aluminium (00716TAL, 180 g) and magnesium (00716TMG, 450 g). The brass plug is also available separately as 00716TP (120 g), with a 3/8" UNC anode connection and a 19 mm plug dimension. These components are intended for corrosion protection in compatible Volvo Penta engine cooling systems.

Description
Ask a Question

Tecnoseal 823661 Volvo Penta Pencil Anode Ø26 x 44 mm for Engine Cooler with Optional Brass Plug

The Tecnoseal 00716 series includes sacrificial pencil anodes and matching brass plug components designed for compatible Volvo Penta engine coolers and heat exchangers. The catalogue identifies Volvo Penta OEM reference 823661 for this product family. The available versions include zinc, aluminium and magnesium anodes, complete anode assemblies with brass plugs, and a replacement brass plug supplied separately.

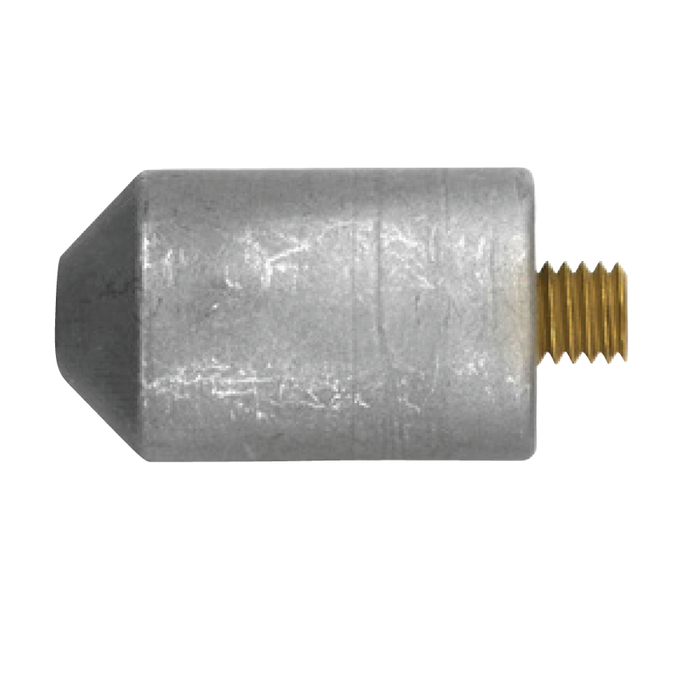

The individual pencil anodes feature a cylindrical body measuring 26 mm in diameter and 44 mm in length. The threaded mounting stud extends 8 mm beyond the anode body and uses a 3/8" UNC connection. Complete assemblies include a brass mounting plug with a 1" BSPP external thread. These sacrificial components help protect metallic cooling system parts against galvanic corrosion.

Technical Specifications

Manufacturer	Tecnoseal
Product Family	00716
Product Type	Pencil Anode / Complete Anode Assembly / Brass Plug
Compatible Manufacturer	Volvo Penta
Application	Engine Cooler / Heat Exchanger
Volvo Penta OEM Reference	823661
Available Anode Materials	Zinc, Aluminium, Magnesium
Plug Material	Brass
Anode Diameter (Ø)	26 mm (1.02 in)
Anode Body Length (l)	44 mm (1.73 in)
Threaded Stud Length (l1)	8 mm (0.31 in)
Anode Thread (b)	3/8" UNC
Brass Plug External Thread (a)	1" BSPP
Brass Plug Anode Connection (b)	3/8" UNC
Brass Plug Dimension (c)	19 mm (0.75 in)

Available Variants

Tecnoseal Code	Material	Configuration	Weight
00716	Zinc	Anode Only	0.16 kg (0.35 lbs)
00716AL	Aluminium	Anode Only	0.06 kg (0.13 lbs)
00716MG	Magnesium	Anode Only	0.04 kg (0.09 lbs)
00716TP	Brass	Brass Plug Only	0.12 kg (0.26 lbs)
00716T	Zinc + Brass	Complete with Brass Plug	0.27 kg (0.60 lbs)
00716TAL	Aluminium + Brass	Complete with Brass Plug	0.18 kg (0.40 lbs)
00716TMG	Magnesium + Brass	Complete with Brass Plug	0.45 kg (0.99 lbs)

Product Codes and EAN

Tecnoseal Code	EAN
00716	8033837063971
00716AL	8059617815080
00716MG	8058774835603
00716TP	8033837063995
00716T	8033837063988
00716TAL	8058774835610
00716TMG	8058774835627

Configuration Options

00716: Zinc pencil anode only, Ø26 x 44 mm, with 3/8" UNC threaded stud.
00716AL: Aluminium pencil anode only, Ø26 x 44 mm, with 3/8" UNC threaded stud.
00716MG: Magnesium pencil anode only, Ø26 x 44 mm, with 3/8" UNC threaded stud.
00716TP: Replacement brass plug only, with 1" BSPP external thread and 3/8" UNC anode connection. No sacrificial anode is included.
00716T: Complete zinc pencil anode assembly with brass plug and 1" BSPP external thread.
00716TAL: Complete aluminium pencil anode assembly with brass plug and 1" BSPP external thread.
00716TMG: Complete magnesium pencil anode assembly with brass plug and 1" BSPP external thread.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Application: Marine Engine Cooler / Heat Exchanger
Volvo Penta OEM Reference: 823661
Individual Anodes: 00716, 00716AL, 00716MG
Complete Assemblies: 00716T, 00716TAL, 00716TMG
Replacement Brass Plug: 00716TP

Key Features

Sacrificial pencil anode components for compatible Volvo Penta engine coolers.
Available in zinc, aluminium and magnesium.
Anode body diameter: 26 mm.
Anode body length: 44 mm.
Threaded stud length: 8 mm.
Anode mounting thread: 3/8" UNC.
Complete assemblies available with brass mounting plugs.
Brass plug external thread: 1" BSPP.
Replacement brass plug available separately.
Helps protect cooling system components against galvanic corrosion.
Volvo Penta OEM reference: 823661.

Ordering Note: Select the correct material and configuration before ordering. Versions 00716, 00716AL and 00716MG are supplied as anodes only. Versions 00716T, 00716TAL and 00716TMG include the brass plug. Version 00716TP is a brass plug only and does not include a sacrificial anode. Verify thread specifications against the existing component.
