The Tecnoseal 00842 Series is a sacrificial power trim anode designed for Mercury F150 EFI outboard motors, corresponding to original part number 8M0057772. Available in zinc (00842), aluminium (00842AL) and magnesium (00842MG), it helps protect compatible power trim components against galvanic corrosion. The rectangular anode features a profiled mounting surface and measures 170 mm (6.69") in length, 51 mm (2.01") in width and 18 mm (0.71") in height, with a mounting dimension (i) of 44 mm (1.73") and mounting hole diameter (Ø) of 6.50 mm (0.26"). The zinc version weighs 0.56 kg (560 g / 1.23 lbs), aluminium 0.23 kg (230 g / 0.51 lbs) and magnesium 0.15 kg (150 g / 0.33 lbs). All three versions share identical dimensions.
- Description
- Ask a Question
-

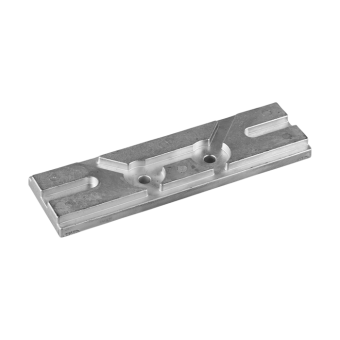

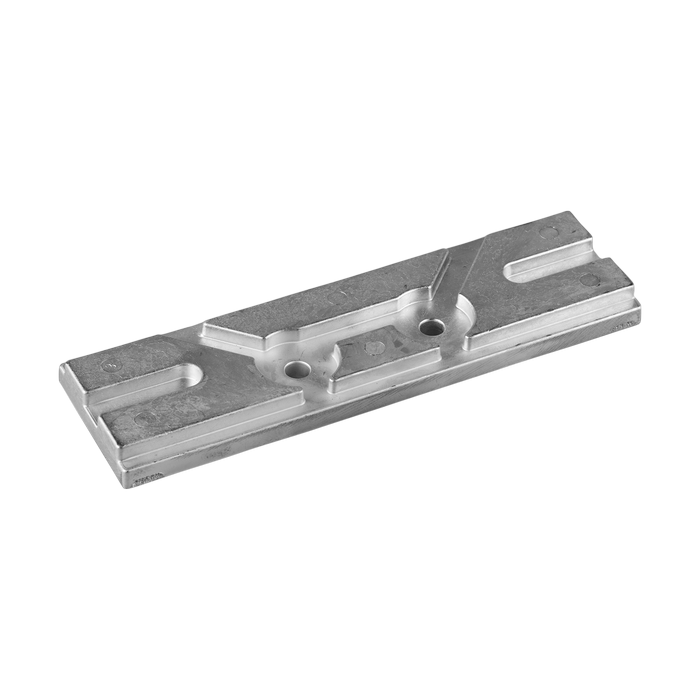

Tecnoseal 8M0057772 Mercury F150 EFI Power Trim Anode
The Tecnoseal 00842 Series consists of sacrificial power trim anodes designed for Mercury F150 EFI outboard motors. These anodes help protect compatible metallic components of the power trim system against galvanic corrosion. The corresponding original part number is 8M0057772.
The anode features an elongated rectangular body with a profiled mounting surface and fixing holes. It measures 170 mm (6.69") in length, 51 mm (2.01") in width and 18 mm (0.71") in height. The additional mounting dimension (i) is 44 mm (1.73"), and the mounting hole diameter (Ø) is 6.50 mm (0.26"). Zinc, aluminium and magnesium versions are available with identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Series 00842 Product Type Power Trim Anode Application Mercury F150 EFI Outboard OEM Part Number 8M0057772 Available Materials Zinc, Aluminium, Magnesium
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 00842 Zinc 43.434.30 0.56 kg (1.23 lbs) 00842AL Aluminium 43.434.31 0.23 kg (0.51 lbs) 00842MG Magnesium 43.434.32 0.15 kg (0.33 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 170 mm (6.69") Width (a) 51 mm (2.01") Height (h) 18 mm (0.71") Mounting Dimension (i) 44 mm (1.73") Mounting Hole Diameter (Ø) 6.50 mm (0.26")
Product Configurations
Tecnoseal 00842 – Zinc Mercury F150 EFI Power Trim Anode
- Material: Zinc
- Weight: 0.56 kg (1.23 lbs)
- Dimensions: 170 x 51 x 18 mm
- Mounting Dimension (i): 44 mm
- Mounting Hole Diameter: 6.50 mm
- OEM Reference: 8M0057772
- Osculati Reference: 43.434.30
Tecnoseal 00842AL – Aluminium Mercury F150 EFI Power Trim Anode
- Material: Aluminium
- Weight: 0.23 kg (0.51 lbs)
- Dimensions: 170 x 51 x 18 mm
- Mounting Dimension (i): 44 mm
- Mounting Hole Diameter: 6.50 mm
- OEM Reference: 8M0057772
- Osculati Reference: 43.434.31
Tecnoseal 00842MG – Magnesium Mercury F150 EFI Power Trim Anode
- Material: Magnesium
- Weight: 0.15 kg (0.33 lbs)
- Dimensions: 170 x 51 x 18 mm
- Mounting Dimension (i): 44 mm
- Mounting Hole Diameter: 6.50 mm
- OEM Reference: 8M0057772
- Osculati Reference: 43.434.32
Engine Compatibility
- Manufacturer: Mercury
- Engine Model: F150 EFI
- Application: Power Trim System
- OEM Part Number: 8M0057772
OEM and Catalogue Cross-References
- Original Part Number: 8M0057772
- Tecnoseal 00842 (Zinc): Osculati 43.434.30
- Tecnoseal 00842AL (Aluminium): Osculati 43.434.31
- Tecnoseal 00842MG (Magnesium): Osculati 43.434.32
Key Features
- Power trim anode for Mercury F150 EFI outboard motors.
- Corresponds to OEM part number 8M0057772.
- Available in zinc, aluminium and magnesium versions.
- Rectangular body with profiled mounting surface.
- Provides sacrificial galvanic corrosion protection.
- Overall dimensions: 170 x 51 x 18 mm.
- Mounting dimension (i): 44 mm.
- Mounting hole diameter: 6.50 mm.
- Identical dimensions across all three versions.
- Zinc: Tecnoseal 00842 / Osculati 43.434.30 / 560 g.
- Aluminium: Tecnoseal 00842AL / Osculati 43.434.31 / 230 g.
- Magnesium: Tecnoseal 00842MG / Osculati 43.434.32 / 150 g.
-
