Tecnoseal 6UA-45251-00 Yamaha Hydra Sterndrive Zinc Plate Anode

Name: Tecnoseal 6UA-45251-00 Yamaha Hydra Sterndrive Zinc Plate Anode
SKU: Tecnoseal 01138
Price: 34.514960218146 USD
Availability: InStock

ID 1405531

$ 34.51

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01138 is a zinc sacrificial plate anode designed for Yamaha Hydra sterndrive systems, corresponding to Yamaha OEM part number 6UA-45251-00. It features a rectangular plate with two raised cylindrical mounting bosses, recessed fastening holes and a reinforced underside, helping protect submerged metallic sterndrive components against galvanic corrosion. The anode measures 99 mm in length (l), 45 mm in width (a) and 32 mm in overall height (h). The mounting-hole centre spacing (i) is 27 mm, with 20 mm recess diameters (Ø) and 9 mm fastening-hole diameters (Ø1). Weighing 0.28 kg (0.62 lbs), this zinc anode is intended for replacement on compatible Yamaha Hydra drive assemblies.

Description
Ask a Question

Tecnoseal 01138 / Yamaha 6UA-45251-00 Hydra Sterndrive Zinc Plate Anode

The Tecnoseal 01138 is a zinc sacrificial plate anode designed for Yamaha Hydra sterndrive systems. Corresponding to Yamaha OEM part number 6UA-45251-00, this replacement anode helps protect submerged metallic sterndrive components against galvanic corrosion.

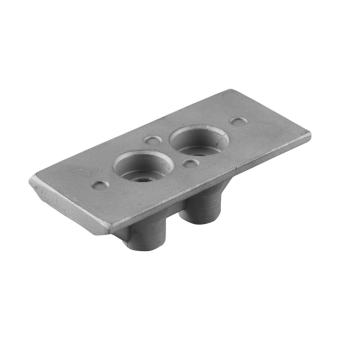

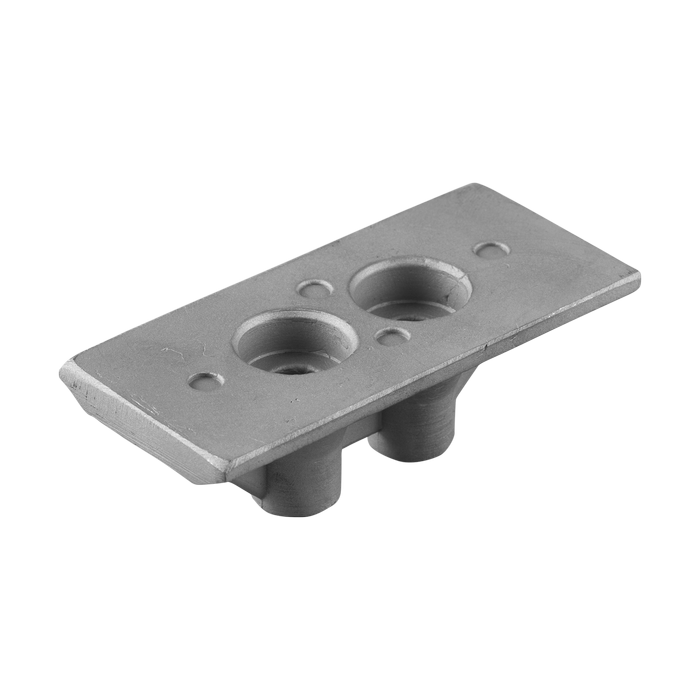

The anode features a rectangular plate-shaped body with two raised cylindrical mounting bosses on its underside. Two recessed fastening holes pass through the mounting sections, providing attachment points for the corresponding Yamaha Hydra drive assembly. The contoured underside includes supporting surfaces around the cylindrical sections, while the flat rectangular plate forms the main sacrificial body.

Manufactured from zinc, the anode serves as a replaceable sacrificial component. During service, the zinc gradually corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic sterndrive parts.

The Tecnoseal 01138 measures 99 mm (3.90 in) in overall length (l), 45 mm (1.77 in) in width (a) and 32 mm (1.26 in) in overall height (h). The centre-to-centre mounting-hole spacing (i) is 27 mm (1.06 in). Each mounting recess has a diameter (Ø) of 20 mm (0.79 in), while the fastening-hole diameter (Ø1) is 9 mm (0.35 in).

The zinc anode weighs 0.28 kg (0.62 lbs). Its two-point fastening arrangement and raised cylindrical mounting profile are intended for compatible Yamaha Hydra sterndrive installations. Before ordering, the original part number, mounting-hole spacing and body dimensions should be compared with the existing anode.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01138
Product Type	Sterndrive Plate Anode
Material	Zinc
Compatible Manufacturer	Yamaha
Compatible Drive	Yamaha Hydra Drive
Yamaha OEM Reference	6UA-45251-00
Construction	Rectangular plate with two cylindrical mounting bosses
Mounting Configuration	Two recessed fastening holes
Weight	0.28 kg (0.62 lbs)
EAN	8033837065432

Dimensions and Mounting Specifications

Overall Length (l)	99 mm (3.90 in)
Width (a)	45 mm (1.77 in)
Overall Height (h)	32 mm (1.26 in)
Mounting-Hole Centre Spacing (i)	27 mm (1.06 in)
Mounting Recess Diameter (Ø)	20 mm (0.79 in)
Fastening-Hole Diameter (Ø1)	9 mm (0.35 in)

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Drive System: Hydra Drive
Application: Sterndrive sacrificial plate anode
Yamaha OEM Part Number: 6UA-45251-00
Tecnoseal Reference: 01138
Material: Zinc

Key Features

Designed for Yamaha Hydra sterndrive applications.
Corresponds to Yamaha OEM part number 6UA-45251-00.
Rectangular zinc sacrificial plate anode.
Two cylindrical mounting bosses with recessed fastening holes.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Overall dimensions: 99 × 45 × 32 mm.
Mounting-hole centre spacing: 27 mm.
Mounting recess diameter: 20 mm.
Fastening-hole diameter: 9 mm.
Weight: 280 g.

Compatibility Note: Before ordering, verify the Yamaha Hydra drive model, OEM part number and existing anode dimensions. Compare the rectangular plate profile, two cylindrical mounting bosses and fastening-hole centre spacing with the original component. The supplied Tecnoseal catalogue lists this anode in zinc only.
