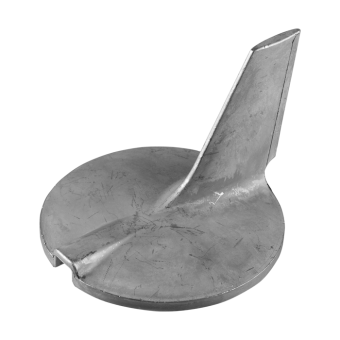

Tecnoseal 69L-45371-00 Yamaha 200–300 HP Outboard Trim Tab Anode Ø100 mm

ID 1405552

$ 50.24

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

170 g
260 g
640 g

The Tecnoseal 01145 series consists of sacrificial trim tab anodes designed for Yamaha 200–300 HP outboard motors, corresponding to Yamaha OEM part number 69L-45371-00. Each anode features a circular base with an integrated angled vertical fin, an extended horizontal section and a central threaded mounting arrangement, helping protect submerged metallic lower-unit components against galvanic corrosion. The anode measures 100 mm in base diameter (Ø), with profile dimensions of 30 mm (h) and 60 mm (h1), and an M10 × 1.25 mounting thread (m). Three material versions are available: zinc (Tecnoseal 01145, 640 g), aluminium (Tecnoseal 01145AL, 260 g) and magnesium (Tecnoseal 01145MG, 170 g). All three versions share identical dimensions and mounting geometry, allowing selection of the appropriate sacrificial material according to the vessel's operating water conditions.

Description
Ask a Question

Tecnoseal 69L-45371-00 Yamaha 200–300 HP Outboard Trim Tab Anode Ø100 mm

The Tecnoseal 01145 series consists of sacrificial trim tab anodes designed for Yamaha 200–300 HP outboard motors. Corresponding to Yamaha OEM part number 69L-45371-00, these replacement anodes help protect submerged metallic components of compatible Yamaha outboard lower units against galvanic corrosion.

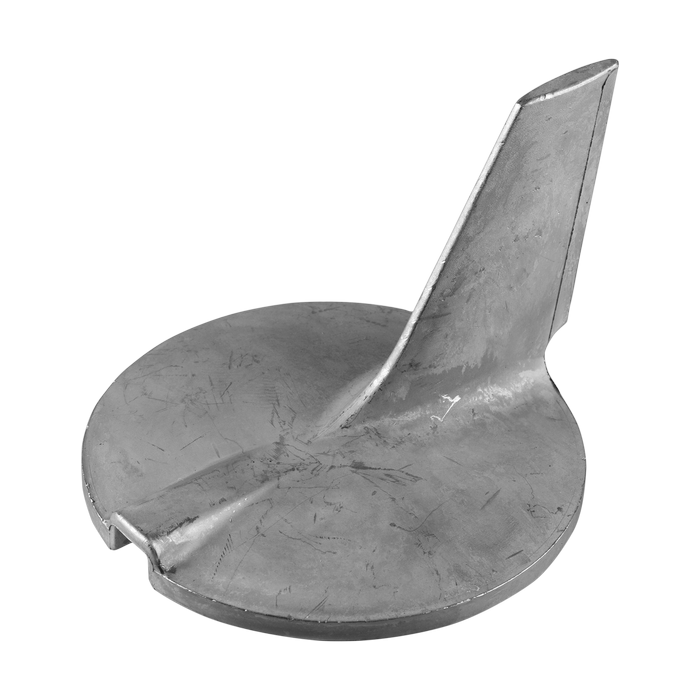

Each anode features a circular base with an integrated angled vertical fin and an extended horizontal section. The fin rises from the circular base to form the characteristic Yamaha trim tab profile, while the central threaded mounting arrangement provides attachment to the corresponding lower-unit position.

The sacrificial anode material gradually corrodes during service, helping reduce galvanic corrosion of surrounding protected metallic components. The integrated fin also maintains the physical trim tab configuration of the original part.

The circular base measures 100 mm (3.94 in) in diameter (Ø). According to the Tecnoseal catalogue, the profile dimensions are 30 mm (1.18 in) for h and 60 mm (2.36 in) for h1. The central mounting thread (m) is M10 × 1.25. These measurements and mounting geometry are identical across all three material versions.

Three material versions are available. The zinc version, Tecnoseal 01145, weighs 0.64 kg (1.41 lbs) and corresponds to Osculati reference 43.252.95. The aluminium version, Tecnoseal 01145AL, weighs 0.26 kg (0.57 lbs) and corresponds to Osculati reference 43.252.93. The magnesium version, Tecnoseal 01145MG, weighs 0.17 kg (0.37 lbs) and corresponds to Osculati reference 43.252.92. These alternatives allow selection of the appropriate sacrificial material according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outboard Trim Tab Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	200–300 HP
Yamaha OEM Reference	69L-45371-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Circular base with integrated angled vertical fin
Mounting Configuration	Central threaded mounting arrangement
Mounting Thread	M10 × 1.25

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01145	Zinc	0.64 kg (1.41 lbs)	43.252.95
01145AL	Aluminium	0.26 kg (0.57 lbs)	43.252.93
01145MG	Magnesium	0.17 kg (0.37 lbs)	43.252.92

Dimensions and Mounting Specifications

Profile Dimension (h)	30 mm (1.18 in)
Profile Dimension (h1)	60 mm (2.36 in)
Base Diameter (Ø)	100 mm (3.94 in)
Mounting Thread (m)	M10 × 1.25

Product Codes and EAN

Tecnoseal Code	EAN
01145	8033837065500
01145AL	8059617815844
01145MG	8052744983707

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 200–300 HP
Application: Outboard trim tab anode
Yamaha OEM Part Number: 69L-45371-00
Zinc Version: Tecnoseal 01145 / Osculati 43.252.95
Aluminium Version: Tecnoseal 01145AL / Osculati 43.252.93
Magnesium Version: Tecnoseal 01145MG / Osculati 43.252.92

Key Features

Designed for compatible Yamaha 200–300 HP outboard motors.
Corresponds to Yamaha OEM part number 69L-45371-00.
Circular sacrificial anode with an integrated angled vertical fin.
Extended horizontal section forming part of the trim tab profile.
Helps protect submerged metallic lower-unit components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Circular base diameter: 100 mm.
Catalogue profile dimensions: h = 30 mm and h1 = 60 mm.
Mounting thread: M10 × 1.25.
Zinc cross-reference: Osculati 43.252.95.
Aluminium cross-reference: Osculati 43.252.93.
Magnesium cross-reference: Osculati 43.252.92.
Identical dimensions and mounting geometry for all three material versions.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing trim tab dimensions. Compare the fin orientation, circular base profile and M10 × 1.25 mounting arrangement with the original component. Select the appropriate sacrificial anode material according to the vessel's operating water conditions.
