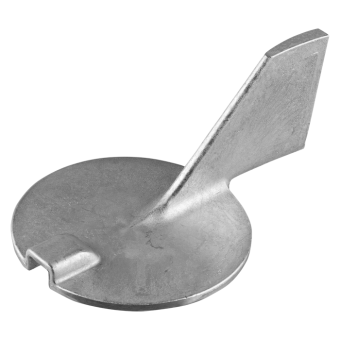

Tecnoseal 67F-45371-00 Yamaha 50–100 HP Outboard Trim Tab Anode Ø92 mm

ID 1405533

$ 33.95

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

150 g
100 g
410 g

The Tecnoseal 01140 series consists of sacrificial trim tab anodes designed for Yamaha 50–100 HP outboard motors, corresponding to Yamaha OEM part number 67F-45371-00. Each anode features a circular base with an integrated angled vertical fin and a central mounting section, helping protect submerged metallic lower-unit components against galvanic corrosion. It measures 132 mm in overall length (l), 50 mm in height (h) and 92 mm in base diameter (Ø), with an additional profile dimension (h1) of 25 mm and an M10 × 1.25 mounting thread. Three material versions are available: zinc (Tecnoseal 01140, 410 g), aluminium (Tecnoseal 01140AL, 150 g) and magnesium (Tecnoseal 01140MG, 100 g). All three versions share the same dimensions and mounting configuration, allowing selection according to the vessel's operating water conditions.

Description
Ask a Question

Tecnoseal 67F-45371-00 Yamaha 50–100 HP Outboard Trim Tab Anode Ø92 mm

The Tecnoseal 01140 series consists of sacrificial trim tab anodes designed for Yamaha 50–100 HP outboard motors. Corresponding to Yamaha OEM part number 67F-45371-00, these replacement anodes help protect submerged metallic components of compatible Yamaha outboard lower units against galvanic corrosion.

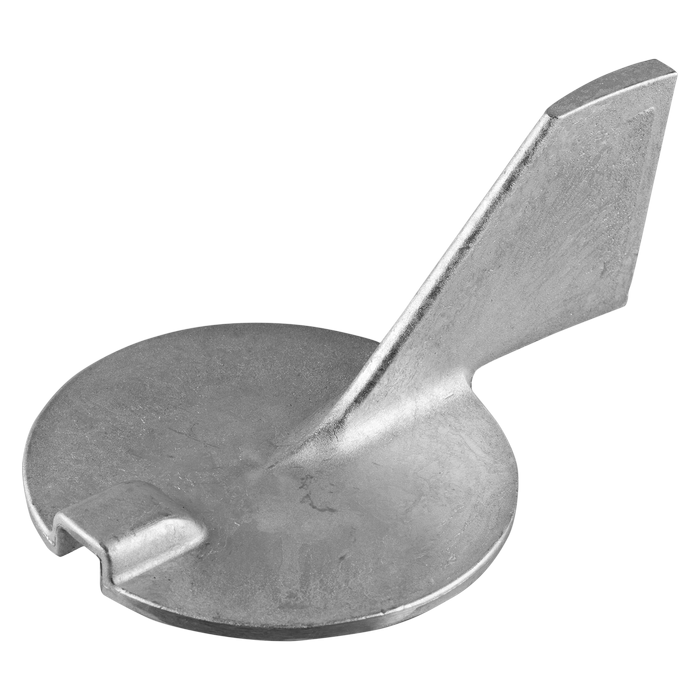

Each anode features a circular base with an integrated angled vertical trim tab fin and a central mounting section. The fin extends beyond the circular base, creating a distinctive profile intended for the corresponding trim tab position on compatible Yamaha outboard engines. The sacrificial metal gradually corrodes during service, helping reduce galvanic corrosion of surrounding protected metallic components.

The anode measures 132 mm (5.20 in) in overall length (l), including the projecting fin, and 50 mm (1.97 in) in height (h). The circular base has a diameter (Ø) of 92 mm (3.62 in), while the additional profile dimension (h1) is 25 mm (0.98 in). The mounting thread (m) is M10 × 1.25.

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01140, weighs 0.41 kg (0.90 lbs). The aluminium version, Tecnoseal 01140AL, weighs 0.15 kg (0.33 lbs), while the magnesium version, Tecnoseal 01140MG, weighs 0.10 kg (0.22 lbs). These versions allow the appropriate sacrificial material to be selected according to the vessel's operating water conditions.

The Tecnoseal 01140 series is intended for Yamaha 50–100 HP outboard applications. Before replacement, the Yamaha OEM reference, fin orientation, circular base diameter and mounting thread should be compared with the existing component.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outboard Trim Tab Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	50–100 HP
Yamaha OEM Reference	67F-45371-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Circular base with integrated angled vertical fin
Mounting Configuration	Central M10 × 1.25 mounting thread

Available Versions

Tecnoseal Code	Material	Weight	EAN
01140 (Osculati 43.269.00)	Zinc	0.41 kg (0.90 lbs)	8033837065456
01140AL	Aluminium	0.15 kg (0.33 lbs)	8052530702772
01140MG	Magnesium	0.10 kg (0.22 lbs)	8052744983684

Dimensions and Mounting Specifications

Overall Length (l)	132 mm (5.20 in)
Height (h)	50 mm (1.97 in)
Profile Dimension (h1)	25 mm (0.98 in)
Base Diameter (Ø)	92 mm (3.62 in)
Mounting Thread (m)	M10 × 1.25

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 50–100 HP
Application: Outboard trim tab anode
Yamaha OEM Part Number: 67F-45371-00
Zinc Version: Tecnoseal 01140
Aluminium Version: Tecnoseal 01140AL
Magnesium Version: Tecnoseal 01140MG

Key Features

Designed for compatible Yamaha 50–100 HP outboard motors.
Corresponds to Yamaha OEM part number 67F-45371-00.
Circular sacrificial anode with an integrated angled vertical fin.
Helps protect submerged metallic lower-unit components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall length, including the fin: 132 mm.
Overall height: 50 mm.
Circular base diameter: 92 mm.
Additional profile dimension (h1): 25 mm.
Mounting thread: M10 × 1.25.
Identical dimensions and mounting configuration for all three material versions.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing trim tab dimensions. Compare the fin orientation, circular base profile and M10 × 1.25 mounting thread with the original component. Select the appropriate sacrificial anode material according to the vessel's operating water conditions.
