Tecnoseal 6T5-45251-00 Yamaha Sterndrive Zinc Anode Plate (1989–1990)

Name: Tecnoseal 6T5-45251-00 Yamaha Sterndrive Zinc Anode Plate (1989–1990)
SKU: Tecnoseal 01139
Price: 103.28340368309 USD
Availability: InStock

ID 1405532

$ 103.28

1-2 weeks delivery time

- +

Add to cart

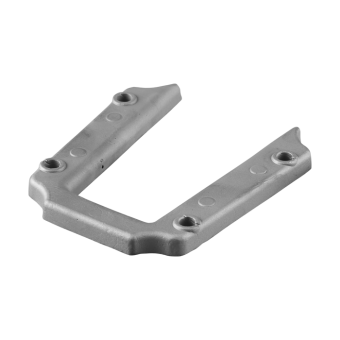

The Tecnoseal 01139 is a zinc sacrificial anode plate designed for Yamaha sterndrive systems manufactured between 1989 and 1990, corresponding to Yamaha OEM part number 6T5-45251-00. It features a U-shaped, open-centre plate with two elongated arms and multiple mounting holes, helping protect submerged metallic sterndrive components against galvanic corrosion. According to the Tecnoseal catalogue, its dimensions are 108 mm (l), 122 mm (a), 62 mm (b) and 10 mm thickness (h), with additional mounting dimensions of 76 mm (i), 93 mm (i1) and 7 mm hole diameter (Ø). Manufactured from zinc, the anode weighs 0.35 kg (0.77 lbs) and is intended as a replacement for the corresponding plate on compatible Yamaha sterndrive assemblies.

Description
Ask a Question

Tecnoseal 01139 Yamaha 6T5-45251-00 Sterndrive Zinc Anode Plate (1989–1990)

The Tecnoseal 01139 is a zinc sacrificial anode plate designed for Yamaha sterndrive systems from 1989 to 1990. Corresponding to Yamaha OEM part number 6T5-45251-00, this replacement anode helps protect submerged metallic components of compatible Yamaha sterndrives against galvanic corrosion.

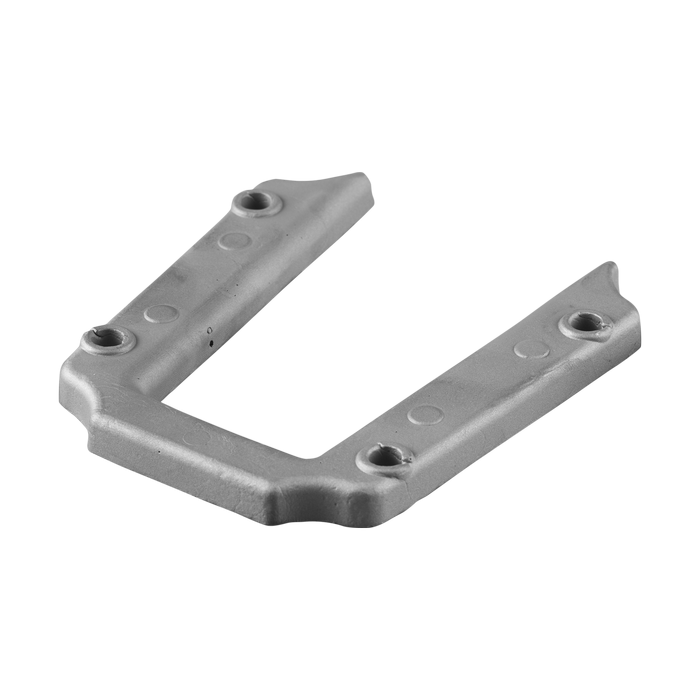

The anode features a distinctive U-shaped, open-centre construction with two elongated arms connected by a transverse section. Multiple mounting holes are positioned along the arms, allowing the plate to be secured to the corresponding sterndrive mounting area. The open central profile and fastening arrangement distinguish this component from conventional rectangular and circular marine anodes.

Manufactured from zinc, the Tecnoseal 01139 acts as a sacrificial corrosion protection component. During operation, the zinc is gradually consumed, helping reduce galvanic corrosion of surrounding protected metallic parts. The anode is intended for periodic inspection and replacement as part of sterndrive maintenance.

According to the Tecnoseal catalogue, the anode has an overall length dimension (l) of 108 mm (4.25 in) and an overall dimension (a) of 122 mm (4.80 in). The additional dimension (b) measures 62 mm (2.44 in), while the plate thickness (h) is 10 mm (0.39 in). The mounting dimensions (i) and (i1) are 76 mm (2.99 in) and 93 mm (3.66 in), respectively. The fastening-hole diameter (Ø) is 7 mm (0.28 in).

The anode weighs 0.35 kg (0.77 lbs). Before installation, the existing Yamaha sterndrive anode should be checked against the original part number, U-shaped body profile, overall dimensions and mounting-hole arrangement to confirm compatibility.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01139
Product Type	Sterndrive Anode Plate
Material	Zinc
Compatible Manufacturer	Yamaha
Compatible System	Yamaha Sterndrive (1989–1990)
Yamaha OEM Reference	6T5-45251-00
Construction	U-shaped plate with open centre
Mounting Configuration	Multiple fastening holes along two arms
Weight	0.35 kg (0.77 lbs)
EAN	8033837065449

Dimensions and Mounting Specifications

Dimension (l)	108 mm (4.25 in)
Dimension (a)	122 mm (4.80 in)
Dimension (b)	62 mm (2.44 in)
Plate Thickness (h)	10 mm (0.39 in)
Mounting Dimension (i)	76 mm (2.99 in)
Mounting Dimension (i1)	93 mm (3.66 in)
Fastening-Hole Diameter (Ø)	7 mm (0.28 in)

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Drive Type: Sterndrive
Model Years: 1989–1990
Application: Sterndrive sacrificial anode plate
Yamaha OEM Part Number: 6T5-45251-00
Tecnoseal Reference: 01139
Material: Zinc

Key Features

Designed for Yamaha sterndrive applications from 1989 to 1990.
Corresponds to Yamaha OEM part number 6T5-45251-00.
U-shaped zinc sacrificial anode plate with an open central section.
Two elongated mounting arms with multiple fastening holes.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Catalogue dimensions: l = 108 mm, a = 122 mm, b = 62 mm.
Plate thickness: 10 mm.
Additional mounting dimensions: 76 mm and 93 mm.
Fastening-hole diameter: 7 mm.
Weight: 350 g.

Compatibility Note: Before ordering, verify the Yamaha sterndrive model, production year, OEM part number and existing anode dimensions. Compare the U-shaped plate profile, mounting-hole positions and thickness with the original component. The supplied Tecnoseal catalogue lists this model in zinc only.
