Tecnoseal 6T4-45836-00 Yamaha Sterndrive Gimbal Housing Anode (1989–1990)

Name: Tecnoseal 6T4-45836-00 Yamaha Sterndrive Gimbal Housing Anode (1989–1990)
SKU: Tecnoseal 01122

ID 1405476

$ 96.52

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

1.49 kg
0.37 kg

The Tecnoseal 01122 series consists of sacrificial gimbal housing anodes designed for Yamaha sterndrive units manufactured between 1989 and 1990, replacing OEM part number 6T4-45836-00. Each anode features a shaped, pentagonal body with a ribbed reverse side, recessed mounting sections and fastening holes, helping protect metallic gimbal housing components against galvanic corrosion. It measures 151 mm in length, 132 mm in width and 38 mm in overall height, with an additional 19 mm profile dimension (h1) and 118 mm mounting dimension (i). Available in zinc (01122, 1.49 kg) and magnesium (01122MG, 0.37 kg), both versions share identical dimensions and mounting geometry for compatible Yamaha sterndrive installations.

Description
Ask a Question

Tecnoseal 6T4-45836-00 Yamaha Sterndrive Gimbal Housing Anode (1989–1990)

The Tecnoseal 01122 series consists of sacrificial gimbal housing anodes designed for Yamaha sterndrive units manufactured between 1989 and 1990. Corresponding to Yamaha OEM part number 6T4-45836-00, these replacement anodes help protect the metallic gimbal housing and surrounding sterndrive components against galvanic corrosion.

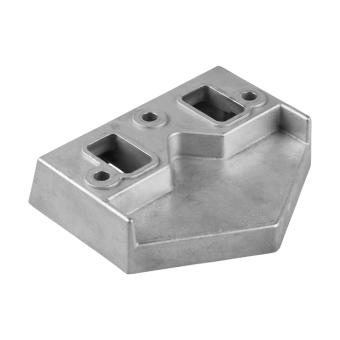

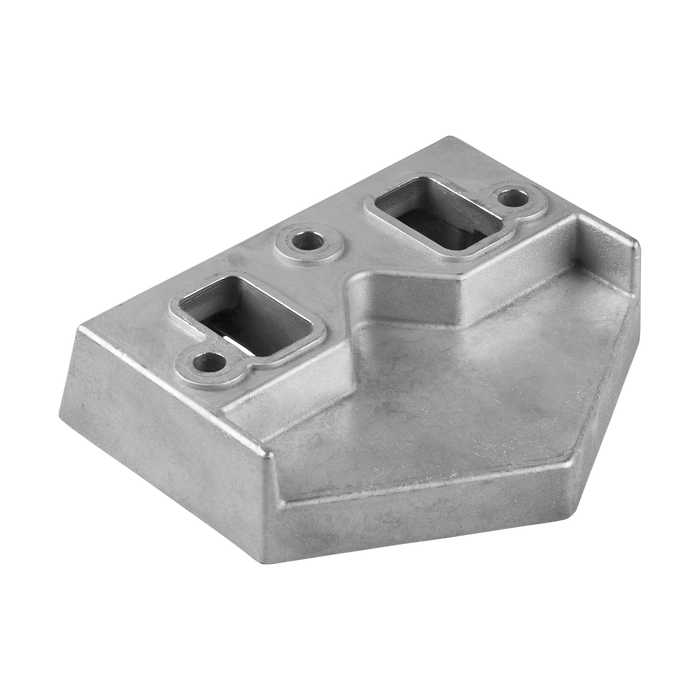

Each anode features a shaped, pentagonal plate with recessed mounting sections and fastening holes on its outer face. The reverse side incorporates a ribbed structure with multiple raised sections and recesses, corresponding to the mounting geometry of compatible Yamaha sterndrive assemblies. The sacrificial metal provides a replaceable corrosion protection component for the gimbal housing area.

The anode measures 151 mm (5.94 in) in length, 132 mm (5.20 in) in width and 38 mm (1.50 in) in overall height. Additional dimensions include a 19 mm (0.75 in) profile measurement (h1) and a 118 mm (4.65 in) mounting dimension (i). The shaped profile and mounting configuration should be compared with the original anode before replacement.

Two material versions are available: zinc and magnesium. The zinc version, Tecnoseal 01122, weighs 1.49 kg (3.28 lbs), while the magnesium version, Tecnoseal 01122MG, weighs 0.37 kg (0.82 lbs). Both versions share identical dimensions and mounting geometry, allowing the appropriate sacrificial material to be selected according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gimbal Housing Anode
Compatible Manufacturer	Yamaha
Compatible Drive	Yamaha Sterndrive
Production Years	1989–1990
Yamaha OEM Reference	6T4-45836-00
Available Materials	Zinc, Magnesium
Construction	Shaped pentagonal body with ribbed reverse side
Mounting Configuration	Recessed mounting sections with fastening holes

Available Versions

Tecnoseal Code	Material	Weight	EAN
01122	Zinc	1.49 kg (3.28 lbs)	8033837065272
01122MG	Magnesium	0.37 kg (0.82 lbs)	8052744983646

Dimensions and Mounting Specifications

Overall Length (l)	151 mm (5.94 in)
Width (a)	132 mm (5.20 in)
Overall Height (h)	38 mm (1.50 in)
Profile Dimension (h1)	19 mm (0.75 in)
Mounting Dimension (i)	118 mm (4.65 in)

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Application: Yamaha Sterndrive Gimbal Housing
Production Period: 1989–1990
Yamaha OEM Part Number: 6T4-45836-00
Zinc Version: Tecnoseal 01122
Magnesium Version: Tecnoseal 01122MG

Key Features

Designed for compatible Yamaha sterndrive units manufactured between 1989 and 1990.
Replacement for Yamaha OEM part number 6T4-45836-00.
Shaped pentagonal sacrificial anode for gimbal housing applications.
Ribbed reverse side with multiple recessed sections.
Integrated mounting holes for compatible sterndrive installations.
Helps protect metallic gimbal housing components against galvanic corrosion.
Available in zinc and magnesium versions.
Overall dimensions: 151 × 132 × 38 mm.
Additional profile dimension (h1): 19 mm.
Mounting dimension (i): 118 mm.
Identical dimensions and mounting geometry for both material versions.

Compatibility Note: Before ordering, verify the Yamaha sterndrive model, production year, OEM part number and existing anode dimensions. Compare the mounting configuration and housing profile with the original component, and select the appropriate sacrificial material for the vessel's operating water conditions.
