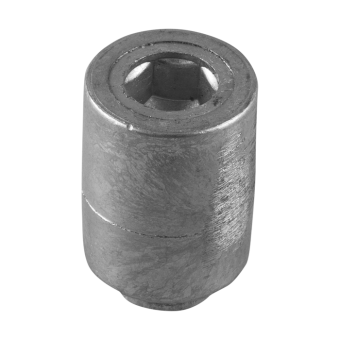

Tecnoseal 68V-11325-01 Yamaha 75–250 HP Outboard Crankcase Cylinder Anode

Tecnoseal 68V-11325-01 Yamaha 75–250 HP Outboard Crankcase Cylinder Anode

The Tecnoseal 01156-1 series consists of small sacrificial internal engine anodes designed for Yamaha 75–250 HP outboard motors. Corresponding to Yamaha OEM part number 68V-11325-01, these replacement anodes help protect metallic components within the crankcase and cylinder assembly against corrosion.

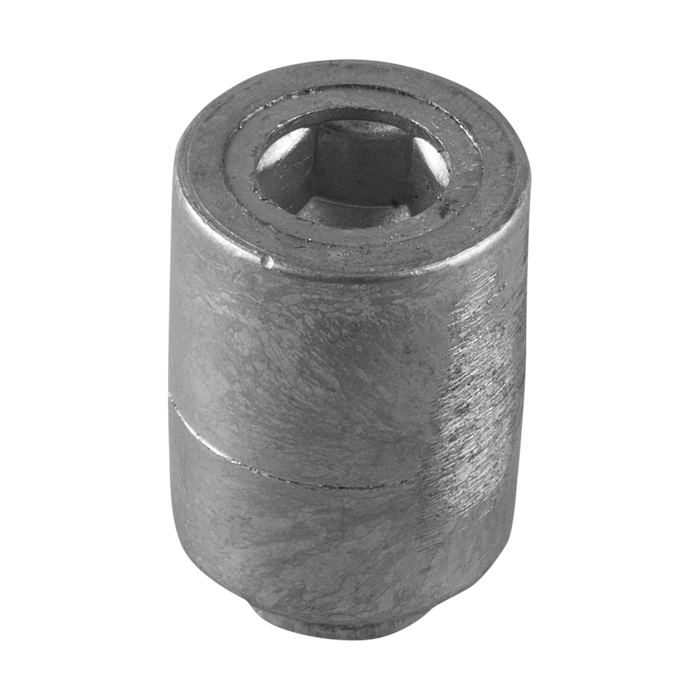

Each anode features a cylindrical body with a recessed hexagonal socket at one end and an axial M6 internal threaded mounting hole. The body includes the distinctive stepped mounting profile illustrated in the Tecnoseal catalogue. This configuration distinguishes the component from conventional pencil anodes and other Yamaha internal engine anodes.

The anode acts as a sacrificial corrosion protection component. During service, its zinc, aluminium or magnesium material corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine parts. The anode should be inspected and replaced according to the Yamaha engine manufacturer's maintenance requirements.

According to the Tecnoseal catalogue, the anode measures 32 mm (1.26 in) in overall length (l), with a secondary length (l1) of 28 mm (1.10 in). The mounting-section dimension (a) is 14 mm (0.55 in), and the outside diameter (Ø) is 21 mm (0.83 in). The internal mounting thread (m) is M6. All three material versions share these specifications.

Three material versions are available. The zinc version, Tecnoseal 01156-1, weighs 0.07 kg (0.15 lbs) and corresponds to Osculati 43.260.05. The aluminium version, Tecnoseal 01156-1AL, weighs 0.03 kg (0.07 lbs) and corresponds to Osculati 43.260.20. The magnesium version, Tecnoseal 01156-1MG, weighs 0.02 kg (0.04 lbs). The appropriate sacrificial material should be selected according to the engine manufacturer's requirements and operating water conditions.

Technical Specifications

Available Versions and Cross-References

Product Codes and EAN

Dimensions and Mounting Specifications

Compatibility and OEM Cross-References

• Compatible Manufacturer: Yamaha
• Outboard Power Range: 75–250 HP
• Installation Area: Internal crankcase / cylinder assembly
• Yamaha OEM Part Number: 68V-11325-01
• Zinc: Tecnoseal 01156-1 / Osculati 43.260.05
• Aluminium: Tecnoseal 01156-1AL / Osculati 43.260.20
• Magnesium: Tecnoseal 01156-1MG

Key Features

• Designed for compatible Yamaha 75–250 HP outboard motors.
• Corresponds to Yamaha OEM part number 68V-11325-01.
• Internal sacrificial anode for crankcase and cylinder applications.
• Cylindrical body with a recessed hexagonal socket.
• Axial internal M6 threaded mounting hole.
• Helps protect metallic engine components against galvanic corrosion.
• Available in zinc, aluminium and magnesium versions.
• Overall length: 32 mm.
• Secondary length: 28 mm.
• Mounting-section dimension: 14 mm.
• Outside diameter: 21 mm.
• Zinc cross-reference: Osculati 43.260.05.
• Aluminium cross-reference: Osculati 43.260.20.
• Identical dimensions and mounting geometry for all three versions.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 68V-11325-01 and existing anode dimensions. Compare the cylindrical body, recessed hexagonal socket and M6 threaded mounting arrangement with the original component. Select the appropriate sacrificial anode material according to the engine manufacturer's specifications.
