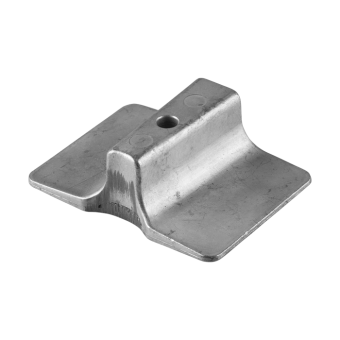

Tecnoseal 61N-45251-01 / 61N-45251-00 Yamaha 8–25 HP Outboard Trim Tab Anode

ID 1405523

$ 52.47

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

270 g
110 g
70 g

The Tecnoseal 01135 series consists of sacrificial trim tab anodes designed for Yamaha 8–25 HP outboard motors, corresponding to Yamaha OEM part numbers 61N-45251-01 and 61N-45251-00. Each anode features a rectangular plate with a raised central mounting section, a recessed fastening hole and a shaped underside, helping protect submerged metallic outboard components against galvanic corrosion. The anode measures 80 mm in length, 59 mm in width and 26 mm in overall height, with a 16.5 mm mounting recess diameter and a 6.5 mm central through-hole. Three material versions are available: zinc (Tecnoseal 01135, 270 g), aluminium (Tecnoseal 01135AL, 110 g) and magnesium (Tecnoseal 01135MG, 70 g). All versions share identical dimensions and mounting geometry for compatible Yamaha outboard applications.

Description
Ask a Question

Tecnoseal 61N-45251-01 / 61N-45251-00 Yamaha 8–25 HP Outboard Trim Tab Anode

The Tecnoseal 01135 series consists of sacrificial trim tab anodes designed for Yamaha 8–25 HP outboard motors. Corresponding to Yamaha OEM part numbers 61N-45251-01 and 61N-45251-00, these replacement anodes help protect submerged metallic components of compatible Yamaha outboard lower units against galvanic corrosion.

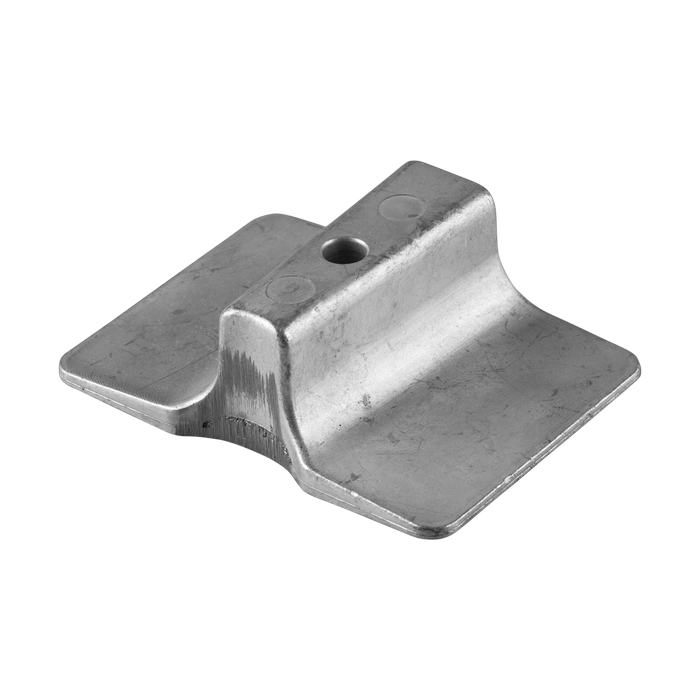

Each anode features a rectangular plate-shaped body with a raised central mounting section and a shaped underside. Unlike conventional circular trim tab anodes with a vertical fin, this model has a recessed central fastening hole and a contoured profile designed for the corresponding mounting position on compatible Yamaha outboard assemblies. The sacrificial metal is gradually consumed during service, helping reduce corrosion of surrounding protected metallic components.

The anode measures 80 mm (3.15 in) in overall length and 59 mm (2.32 in) in width, with a maximum height of 26 mm (1.02 in). The mounting recess diameter is 16.5 mm (0.65 in), while the central through-hole diameter is 6.5 mm (0.26 in). These dimensions and the mounting configuration are identical across all three material versions.

Three material versions are available. The zinc version, Tecnoseal 01135, weighs 0.27 kg (0.60 lbs) and corresponds to Osculati 43.267.00. The aluminium version, Tecnoseal 01135AL, weighs 0.11 kg (0.24 lbs) and corresponds to Osculati 43.267.01. The magnesium version, Tecnoseal 01135MG, weighs 0.07 kg (0.15 lbs) and corresponds to Osculati 43.267.02. These versions share identical dimensions and mounting geometry, allowing the appropriate sacrificial anode material to be selected according to the vessel's operating water conditions.

The Tecnoseal 01135 series is intended for Yamaha 8–25 HP outboard applications. When selecting a replacement, the OEM part number, rectangular body profile, mounting recess and fastening-hole dimensions should be checked against the original anode.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outboard Trim Tab Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	8–25 HP
Yamaha OEM References	61N-45251-01 / 61N-45251-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Rectangular plate with raised central section and shaped underside
Mounting Configuration	Recessed central fastening hole

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01135	Zinc	0.27 kg (0.60 lbs)	43.267.00
01135AL	Aluminium	0.11 kg (0.24 lbs)	43.267.01
01135MG	Magnesium	0.07 kg (0.15 lbs)	43.267.02

Dimensions and Mounting Specifications

Overall Length (l)	80 mm (3.15 in)
Width (a)	59 mm (2.32 in)
Overall Height (h)	26 mm (1.02 in)
Mounting Recess Diameter (Ø)	16.50 mm (0.65 in)
Central Through-Hole Diameter (Ø1)	6.50 mm (0.26 in)

Product Codes and EAN

Tecnoseal Code	EAN
01135	8033837065401
01135AL	8059617815813
01135MG	8059617818371

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 8–25 HP
Application: Outboard trim tab anode
Yamaha OEM Part Numbers: 61N-45251-01, 61N-45251-00
Zinc Version: Tecnoseal 01135 / Osculati 43.267.00
Aluminium Version: Tecnoseal 01135AL / Osculati 43.267.01
Magnesium Version: Tecnoseal 01135MG / Osculati 43.267.02

Key Features

Designed for compatible Yamaha 8–25 HP outboard motors.
Corresponds to Yamaha OEM part numbers 61N-45251-01 and 61N-45251-00.
Rectangular sacrificial anode with a raised central mounting section.
Shaped underside and recessed central fastening hole.
Helps protect submerged metallic lower-unit components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall dimensions: 80 × 59 × 26 mm.
Mounting recess diameter: 16.5 mm.
Central through-hole diameter: 6.5 mm.
Zinc cross-reference: Osculati 43.267.00.
Aluminium cross-reference: Osculati 43.267.01.
Magnesium cross-reference: Osculati 43.267.02.
Identical dimensions and mounting configuration for all three material versions.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing anode dimensions. Compare the rectangular plate profile, raised mounting section and fastening-hole arrangement with the original component. Select the appropriate sacrificial anode material according to the vessel's operating water conditions.
