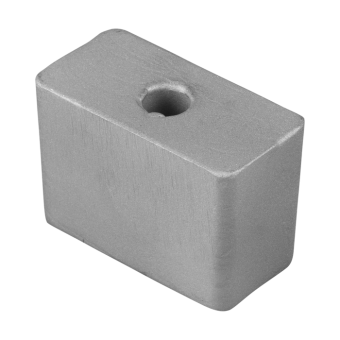

Tecnoseal 395780 Johnson-Evinrude Transom Bracket Anode (1987–2001)

ID 1404236

$ 24.33

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

190 g
50 g
72 g

The Tecnoseal Johnson-Evinrude Transom Bracket Anode is a rectangular sacrificial anode designed for Johnson and Evinrude outboard motors manufactured between 1987 and 2001, corresponding to original OEM part number 395780. Available in zinc (00911), aluminium (00911AL) and magnesium (00911MG), all three versions measure 45 × 23 × 31 mm and feature a stepped mounting bore with diameters of 14 mm and 8.5 mm. The zinc version weighs 0.19 kg (0.42 lbs), the aluminium version 0.072 kg (0.15 lbs) and the magnesium version 0.05 kg (0.11 lbs). The anode provides sacrificial corrosion protection for compatible outboard transom bracket components.

Description
Ask a Question

Tecnoseal 395780 Johnson-Evinrude Transom Bracket Anode (1987–2001)

The Tecnoseal Johnson-Evinrude Transom Bracket Anode is a sacrificial anode designed for corrosion protection of the transom bracket assemblies on compatible Johnson and Evinrude outboard motors manufactured between 1987 and 2001. It corresponds to original OEM part number 395780 and is available in zinc, aluminium and magnesium versions.

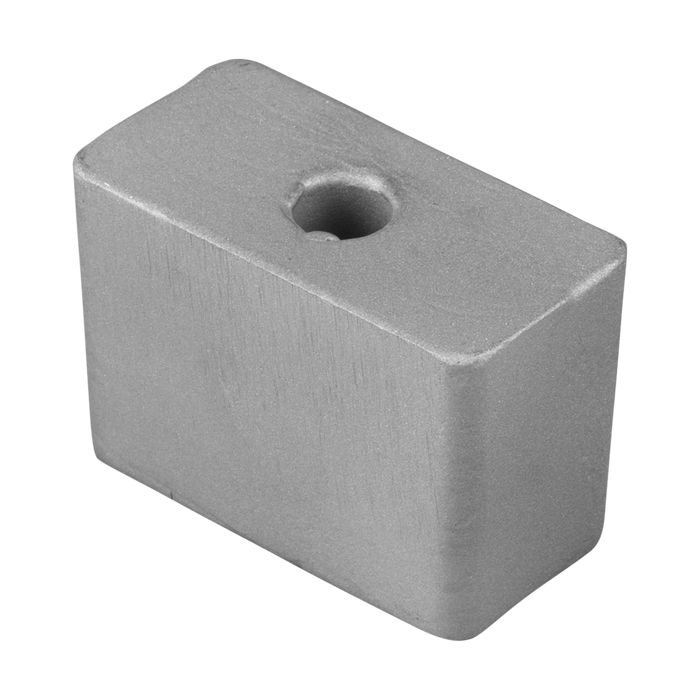

The anode features a rectangular block-shaped body with a central stepped mounting bore. All three versions share the same dimensions of 45 mm in length, 23 mm in width and 31 mm in height. The mounting bore has two diameters: 14 mm for the larger recess and 8.5 mm for the smaller through-hole. The material determines the weight of each version, while the external dimensions and mounting configuration remain identical.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Bracket Anode
OEM Reference	Johnson-Evinrude 395780
Compatibility	Johnson-Evinrude Outboard Motors
Model Years	1987–2001
Available Materials	Zinc, Aluminium, Magnesium
Mounting Bore	Stepped, Ø14 / Ø8.5 mm

Available Versions

Tecnoseal Part Number	Material	Weight
00911 / Osculati-43.314.00	Zinc	0.19 kg (0.42 lbs)
00911AL	Aluminium	0.072 kg (0.15 lbs)
00911MG	Magnesium	0.05 kg (0.11 lbs)

Dimensions

Dimension	Measurement
Length (l)	45 mm (1.77")
Width (a)	23 mm (0.91")
Height (h)	31 mm (1.22")
Counterbore Diameter (Ø)	14 mm (0.55")
Through-Hole Diameter (Ø1)	8.5 mm (0.33")

Key Features

Rectangular sacrificial anode for Johnson-Evinrude outboard transom brackets.
Designed for compatible Johnson-Evinrude outboard motors from 1987 to 2001.
Corresponds to original OEM part number 395780.
Available in zinc, aluminium and magnesium versions.
Identical external dimensions across all three materials: 45 × 23 × 31 mm.
Stepped mounting bore with 14 mm counterbore and 8.5 mm through-hole.
Provides sacrificial corrosion protection for compatible transom bracket components.
