Tecnoseal 173029 / 123009 / 327606 Johnson-Evinrude Outboard Engine Plate Anode (2-150 HP)

ID 1404240

$ 15.39

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
30 g
20 g

The Tecnoseal Johnson-Evinrude Engine Plate Anode is a sacrificial anode designed for Johnson and Evinrude 2–150 HP outboard motors, corresponding to OEM part numbers 173029, 123009 and 327606. Also listed under Tecnoseal reference 01401, it is available in zinc (00912), aluminium (00912AL) and magnesium (00912MG). All versions have an oval plate design measuring 60 × 23 × 12 mm, with 25 mm mounting hole spacing and M5 threaded holes. The zinc version weighs 0.08 kg (0.18 lbs), the aluminium version 0.03 kg (0.07 lbs) and the magnesium version 0.02 kg (0.04 lbs).

Description
Ask a Question

Tecnoseal 173029 / 123009 / 327606 Johnson-Evinrude Outboard Engine Plate Anode (2–150 HP)

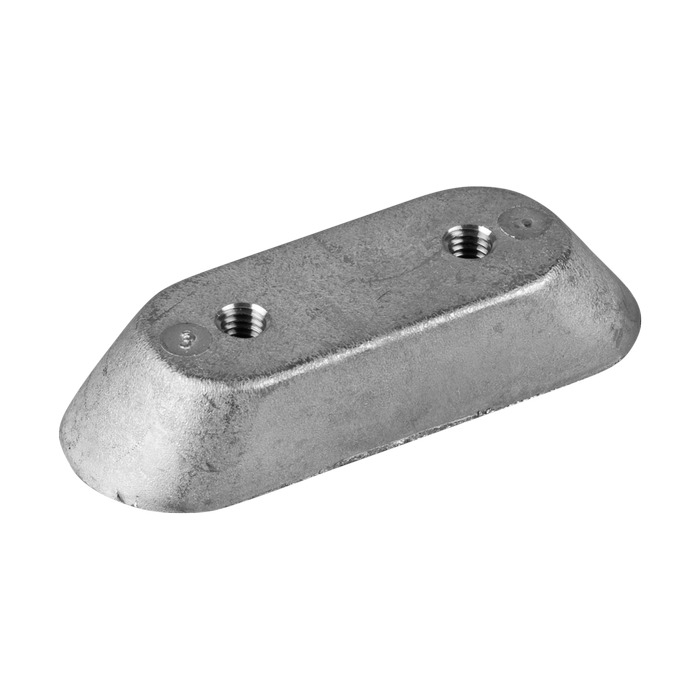

The Tecnoseal Johnson-Evinrude Engine Plate Anode is a sacrificial anode designed for Johnson and Evinrude outboard motors rated from 2 to 150 HP. It corresponds to original OEM part numbers 173029, 123009 and 327606. The Tecnoseal catalogue also identifies this product as "same as 01401". Three material versions are available: zinc, aluminium and magnesium.

The anode features an elongated oval plate with two mounting holes. All three versions measure 60 mm in overall length, 23 mm in width and 12 mm in height. The mounting holes have a centre-to-centre spacing of 25 mm and an M5 thread specification. The aluminium version corresponds to Osculati reference 43.314.98, while the magnesium version corresponds to Osculati reference 43.314.97.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outboard Engine Plate Anode
OEM References	Johnson-Evinrude 173029 / 123009 / 327606
Additional Tecnoseal Reference	01401
Engine Compatibility	Johnson-Evinrude 2–150 HP
Available Materials	Zinc, Aluminium, Magnesium
Mounting Thread	M5
