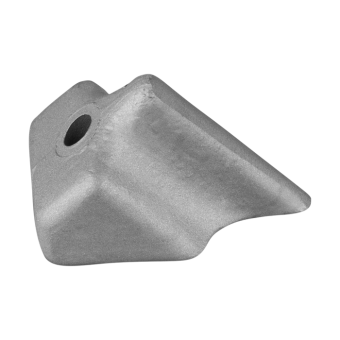

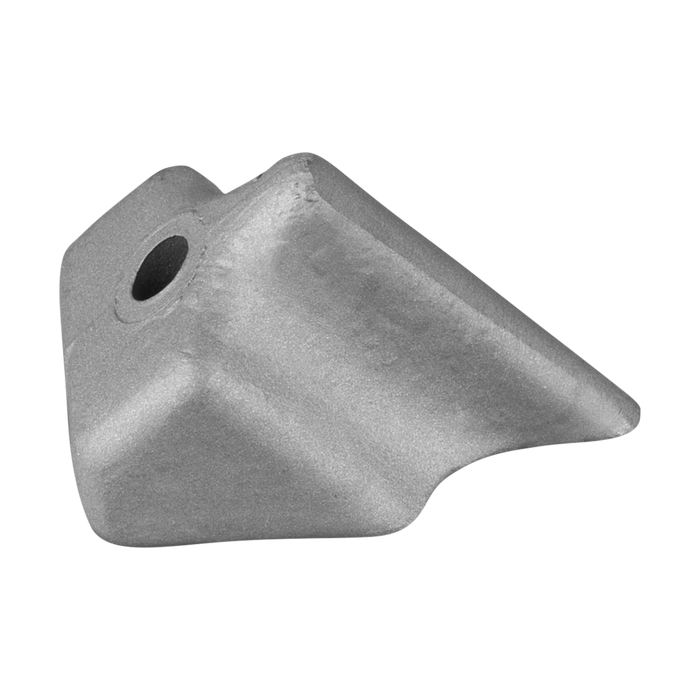

The Tecnoseal 00913 is a zinc sacrificial transom bracket anode designed for Johnson and Evinrude 4–8 HP outboard motors manufactured between 1984 and 2005, corresponding to original OEM part numbers 432397 and 334451. It features a shaped, angled body with a mounting hole and overall dimensions of 30 mm (l), 12 mm (a), 37 mm (b) and 26 mm (h), according to the Tecnoseal drawing. The mounting hole diameter is 6.5 mm. Weighing 0.08 kg (0.18 lbs), the anode provides sacrificial corrosion protection for compatible outboard transom bracket components.
- Description
- Ask a Question
-
Tecnoseal 432397 / 334451 Zinc Johnson-Evinrude Transom Bracket Anode for 4–8 HP Outboards (1984–2005)
The Tecnoseal 00913 is a zinc sacrificial transom bracket anode designed for Johnson and Evinrude outboard motors rated from 4 to 8 HP, covering model years 1984–2005. It corresponds to original OEM part numbers 432397 and 334451 and provides sacrificial corrosion protection for compatible outboard motor transom bracket components.
The anode features a compact, angled body with a shaped mounting surface and a through-hole for attachment. According to the Tecnoseal catalogue, its dimensions are 30 mm (l), 12 mm (a), 37 mm (b) and 26 mm (h). The mounting hole diameter is 6.5 mm, and the anode weighs 0.08 kg (0.18 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00913 (Osculati 43.316.00) OEM References Johnson-Evinrude 432397 / 334451 Product Type Transom Bracket Anode Material Zinc Engine Compatibility Johnson-Evinrude 4–8 HP Outboards Model Years 1984–2005 Weight 0.08 kg (0.18 lbs)
Dimensions
Catalogue Dimension Measurement Length (l) 30 mm (1.18") Dimension (a) 12 mm (0.47") Dimension (b) 37 mm (1.46") Height (h) 26 mm (1.02") Mounting Hole Diameter (Ø) 6.5 mm (0.26")
Key Features
- Zinc sacrificial anode for Johnson-Evinrude outboard transom brackets.
- Designed for 4–8 HP outboard motors manufactured between 1984 and 2005.
- Corresponds to OEM part numbers 432397 and 334451.
- Compact angled body with a shaped mounting surface.
- Catalogue dimensions: l = 30 mm, a = 12 mm, b = 37 mm and h = 26 mm.
- Mounting hole diameter: 6.5 mm.
- Weight: 0.08 kg (80 g).
-
