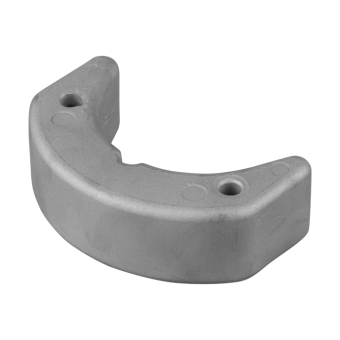

Tecnoseal 392462 Johnson-Evinrude Halfmoon Anode for 50-75 HP Outboards (1983-2005)

ID 1404229

$ 51.10

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

280 g
710 g

The Tecnoseal Johnson-Evinrude Halfmoon Anode is a sacrificial anode designed for Johnson and Evinrude 50–75 HP outboard motors manufactured between 1983 and 2005, corresponding to original OEM part number 392462. Available in zinc (00909) and aluminium (00909AL), both versions feature a horseshoe-shaped body measuring 102 × 63 × 32 mm, with 74 mm mounting hole spacing and 7 mm mounting hole diameter. The zinc version weighs 0.71 kg (1.57 lbs), while the aluminium version weighs 0.28 kg (0.62 lbs). Both versions provide sacrificial corrosion protection for compatible outboard motor components.

Description
Ask a Question

Tecnoseal 392462 Johnson-Evinrude Halfmoon Anode for 50–75 HP Outboards (1983–2005)

The Tecnoseal Johnson-Evinrude Halfmoon Anode is a sacrificial anode designed for Johnson and Evinrude outboard motors rated from 50 to 75 HP, covering model years 1983–2005. It corresponds to original OEM part number 392462 and is available in zinc (00909) and aluminium (00909AL) versions for corrosion protection of compatible outboard motor components.

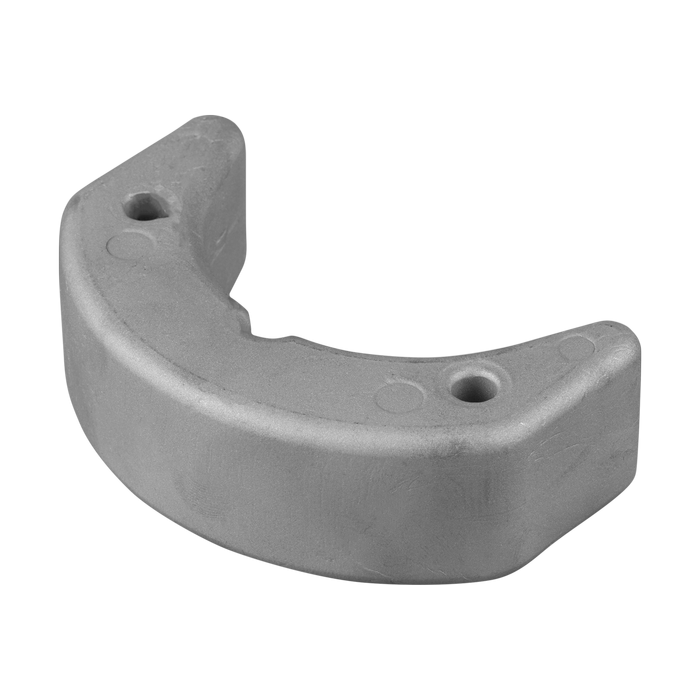

The anode has a curved, horseshoe-shaped body with an open central section and two mounting holes. Both material versions share the same overall dimensions of 102 mm in length, 63 mm in width and 32 mm in height. The mounting holes have a centre-to-centre spacing of 74 mm and a diameter of 7 mm. The zinc version weighs 0.71 kg, while the aluminium version weighs 0.28 kg.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Halfmoon Anode
OEM Reference	Johnson-Evinrude 392462
Engine Compatibility	Johnson-Evinrude 50–75 HP Outboards
Model Years	1983–2005
Available Materials	Zinc, Aluminium
Mounting Hole Diameter	7 mm

Available Versions

Tecnoseal Part Number	Material	Weight
00909	Zinc	0.71 kg (1.57 lbs)
00909AL	Aluminium	0.28 kg (0.62 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	102 mm (4.02")
Width (a)	63 mm (2.48")
Height (h)	32 mm (1.26")
Mounting Hole Spacing (i)	74 mm (2.91")
Mounting Hole Diameter (Ø)	7 mm (0.28")

Key Features

Halfmoon-shaped sacrificial anode for Johnson-Evinrude outboard motors.
Designed for 50–75 HP Johnson-Evinrude applications from 1983 to 2005.
Corresponds to original OEM part number 392462.
Available in zinc and aluminium versions.
Curved body with an open central section and two mounting holes.
Identical dimensions for both material versions: 102 × 63 × 32 mm.
Mounting hole spacing: 74 mm; hole diameter: 7 mm.
Zinc version weight: 0.71 kg; aluminium version weight: 0.28 kg.
