Tecnoseal 434029 Zinc Johnson-Evinrude Lower Unit Anode Plates for 20-35 HP Outboards

Name: Tecnoseal 434029 Zinc Johnson-Evinrude Lower Unit Anode Plates for 20-35 HP Outboards
SKU: Tecnoseal 00914
Rating: 5 (1 reviews)

ID 1404245

$ 38.69

1-2 weeks delivery time

Type:

Standard
Pair with Hardware

Item:

200 g
180 g

The Tecnoseal 00914 and 00914/1 are zinc sacrificial anode plates designed for the lower units of Johnson-Evinrude 20–35 HP outboard motors, corresponding to OEM part number 434029. Both versions feature paired, shaped plates measuring 49 × 41 mm, with a height dimension of 12 mm, an additional height (h1) of 6 mm and mounting diameters of 14 mm and 6 mm. The standard Tecnoseal 00914 weighs 0.18 kg (0.40 lbs), while the 00914/1 version is supplied as a pair with mounting hardware and weighs 0.20 kg (0.44 lbs). Both versions provide sacrificial corrosion protection for compatible outboard lower-unit components.

Description
Ask a Question

Tecnoseal 434029 Zinc Johnson-Evinrude Lower Unit Anode Plates for 20–35 HP Outboards

The Tecnoseal Johnson-Evinrude Lower Unit Anode Plates are zinc sacrificial anodes designed for Johnson and Evinrude outboard motors rated from 20 to 35 HP. They correspond to original OEM part number 434029 and provide sacrificial corrosion protection for compatible outboard lower-unit components.

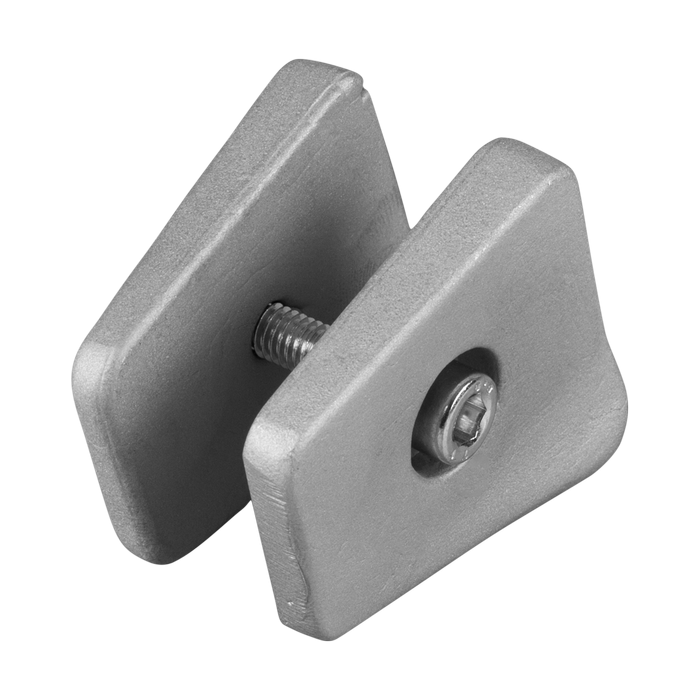

The anode assembly consists of two shaped plates positioned opposite each other. Each plate has an overall length of 49 mm and a width of 41 mm. The catalogue specifies a height (h) of 12 mm, an additional height (h1) of 6 mm and mounting diameters of 14 mm and 6 mm. The two available versions differ in their supplied configuration and weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Lower Unit Anode Plates
OEM Reference	Johnson-Evinrude 434029
Engine Compatibility	Johnson-Evinrude 20–35 HP Outboards
Material	Zinc
Construction	Two-plate anode assembly

Available Versions

Tecnoseal Part Number	Configuration	Weight
00914	Standard version	0.18 kg (0.40 lbs)
00914/1 (Osculati 43.316.10)	Pair with mounting hardware	0.20 kg (0.44 lbs)

Dimensions

Dimension	Measurement
Length (l)	49 mm (1.93")
Width (a)	41 mm (1.61")
Height (h)	12 mm (0.47")
Additional Height (h1)	6 mm (0.24")
Diameter (Ø)	14 mm (0.55")
Diameter (Ø1)	6 mm (0.24")

Key Features

Zinc sacrificial anode plates for Johnson-Evinrude 20–35 HP outboard lower units.
Corresponds to original OEM part number 434029.
Two opposing plates with shaped mounting surfaces.
Plate dimensions: 49 × 41 mm.
Height dimensions: 12 mm (h) and 6 mm (h1).
Specified diameters: 14 mm and 6 mm.
Available as standard version 00914 or version 00914/1 supplied as a pair with mounting hardware.
