Tecnoseal 5007089 / 433580 Johnson-Evinrude Power Trim Anode for 60-300 HP Outboards

ID 1404253

$ 49.74

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

280 g
720 g
180 g

The Tecnoseal Johnson-Evinrude Power Trim Anode is a sacrificial anode designed for the power trim systems of Johnson and Evinrude 60–300 HP outboard motors, corresponding to OEM part numbers 5007089 and 433580. Available in zinc (00918), aluminium (00918AL) and magnesium (00918MG), all three versions feature an elongated rectangular body measuring 172 mm in overall length, 21 mm in width and 34 mm in height, with an additional length dimension (l1) of 165 mm and 5/16" UNC mounting threads. The zinc version weighs 0.72 kg (1.59 lbs), the aluminium version 0.28 kg (0.62 lbs) and the magnesium version 0.18 kg (0.40 lbs).

Description
Ask a Question

Tecnoseal 5007089 / 433580 Johnson-Evinrude Power Trim Anode for 60–300 HP Outboards

The Tecnoseal Johnson-Evinrude Power Trim Anode is a sacrificial anode designed for the power trim systems of Johnson and Evinrude outboard motors rated from 60 to 300 HP. It corresponds to original OEM part numbers 5007089 and 433580 and is available in zinc, aluminium and magnesium versions for corrosion protection of compatible power trim components.

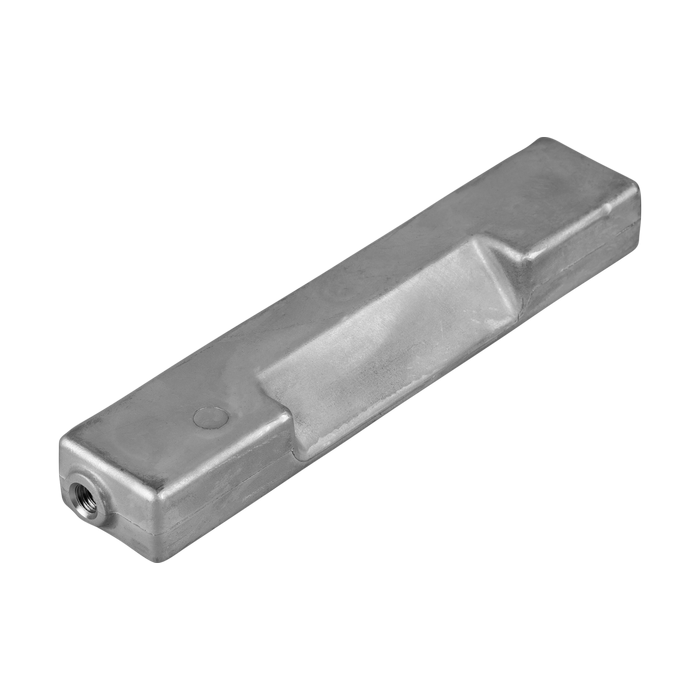

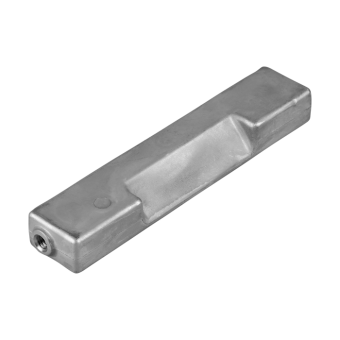

The anode has an elongated rectangular body with a recessed central section and threaded mounting points at the ends. All three material versions share the same dimensions: 172 mm in overall length, 165 mm in secondary length (l1), 21 mm in width and 34 mm in height. The mounting thread specification is 5/16" UNC. The versions correspond to Osculati references 43.316.33 (zinc), 43.316.34 (aluminium) and 43.316.35 (magnesium).

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Power Trim Anode
OEM References	Johnson-Evinrude 5007089 / 433580
Engine Compatibility	Johnson-Evinrude 60–300 HP Outboards
Available Materials	Zinc, Aluminium, Magnesium
Mounting Thread	5/16" UNC

Available Versions and Osculati References

Tecnoseal Part Number	Osculati Reference	Material	Weight
00918	43.316.33	Zinc	0.72 kg (1.59 lbs)
00918AL	43.316.34	Aluminium	0.28 kg (0.62 lbs)
00918MG	43.316.35	Magnesium	0.18 kg (0.40 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	172 mm (6.77")
Secondary Length (l1)	165 mm (6.50")
Width (a)	21 mm (0.83")
Height (h)	34 mm (1.34")
Mounting Thread (m)	5/16" UNC

Key Features

Sacrificial anode for Johnson-Evinrude outboard power trim systems.
Designed for Johnson and Evinrude 60–300 HP outboard motors.
Corresponds to original OEM part numbers 5007089 and 433580.
Available in zinc, aluminium and magnesium versions.
Osculati cross-references: 43.316.33 (zinc), 43.316.34 (aluminium) and 43.316.35 (magnesium).
Elongated rectangular body with a recessed central section.
Identical mounting dimensions across all three material versions.
Overall dimensions: 172 × 21 × 34 mm.
Secondary length: 165 mm.
Mounting thread: 5/16" UNC.
