The Tecnoseal 00734 series consists of sacrificial split collar anodes for Volvo Penta 130S and 150S saildrives, corresponding to OEM part number 3888305. Each anode features a two-piece circular collar designed for installation around the saildrive assembly, measuring 140 mm in overall length (l), 40 mm in height (h), with an additional dimension (i) of 75 mm. The catalogue specifies diameters of 110 mm (Ø), 45 mm (Ø1) and 97 mm (Ø2). Available in zinc (00734, 1.43 kg), aluminium (00734AL, 0.58 kg) and magnesium (00734MG, 0.37 kg), these anodes provide sacrificial corrosion protection for compatible saildrive components. All three versions share identical dimensions and mounting geometry.
- Description
- Ask a Question
-

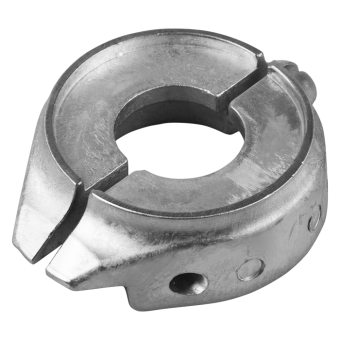

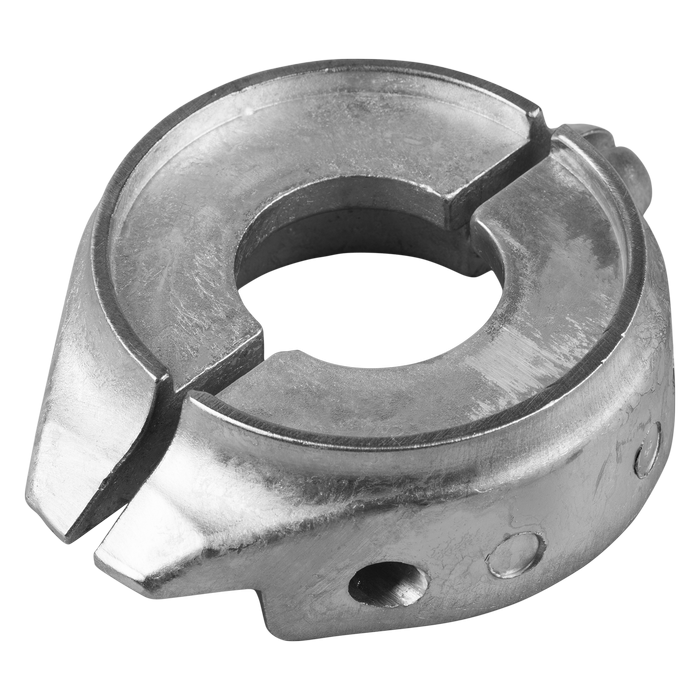

Tecnoseal 3888305 Volvo Penta 130S 150S Saildrive Split Collar Anode 140 mm
The Tecnoseal 00734 series includes sacrificial split collar anodes designed for compatibility with Volvo Penta 130S and 150S saildrives. These anodes correspond to Volvo Penta OEM part number 3888305 and help protect submerged metallic saildrive components against galvanic corrosion. Three material versions are available: zinc, aluminium and magnesium.
Each anode features a circular, two-piece split collar construction with mounting provisions. According to the Tecnoseal catalogue, the anode measures 140 mm in overall length (l) and 40 mm in height (h). The additional dimension (i) is 75 mm, while the specified diameters are 110 mm (Ø), 45 mm (Ø1) and 97 mm (Ø2). All three material versions share identical dimensions and mounting geometry, with different weights depending on the selected material.
Technical Specifications
Manufacturer Tecnoseal Product Type Saildrive Split Collar Anode Compatible Manufacturer Volvo Penta Compatible Saildrives 130S, 150S Volvo Penta OEM Reference 3888305 Available Materials Zinc, Aluminium, Magnesium Length (l) 140 mm (5.51 in) Height (h) 40 mm (1.57 in) Additional Dimension (i) 75 mm (2.95 in) Diameter (Ø) 110 mm (4.33 in) Diameter (Ø1) 45 mm (1.77 in) Diameter (Ø2) 97 mm (3.82 in)
Available Variants
Tecnoseal Code Material Weight EAN 00734 Zinc 1.43 kg (3.15 lbs) 8033837064176 00734AL Aluminium 0.58 kg (1.28 lbs) 8059617815264 00734MG Magnesium 0.37 kg (0.82 lbs) 8059617815271
Compatibility and References
- Compatible Manufacturer: Volvo Penta
- Compatible Saildrives: 130S, 150S
- Volvo Penta OEM Reference: 3888305
- Zinc Version: Tecnoseal 00734
- Aluminium Version: Tecnoseal 00734AL
- Magnesium Version: Tecnoseal 00734MG
Key Features
- Sacrificial split collar anode for compatible Volvo Penta 130S and 150S saildrives.
- Available in zinc, aluminium and magnesium.
- Helps protect submerged metallic saildrive components against galvanic corrosion.
- Two-piece circular split collar design.
- Overall length: 140 mm.
- Height: 40 mm.
- Additional dimension (i): 75 mm.
- Diameter (Ø): 110 mm.
- Diameter (Ø1): 45 mm.
- Diameter (Ø2): 97 mm.
- Identical dimensions across all three material versions.
- Volvo Penta OEM reference: 3888305.
Compatibility Note: Verify OEM part number 3888305 and the mounting dimensions against the existing Volvo Penta saildrive anode before ordering.
-
