Tecnoseal 22651246 23615631 Volvo Penta 130S 150S Saildrive Split Collar Anode 141 mm

Name: Tecnoseal 22651246 23615631 Volvo Penta 130S 150S Saildrive Split Collar Anode 141 mm
SKU: Tecnoseal 00734-1 / VDM ANO00734-1 / FNI 2626535 / Osculati-43.532.00

SKU: Tecnoseal 00734-1 / VDM ANO00734-1 / FNI 2626535 / Osculati-43.532.00

ID 1406320

$ 122.74

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

360 g
560 g
1.43 kg

The Tecnoseal 00734-1 series consists of sacrificial split collar anodes designed for Volvo Penta 130S and 150S saildrives, corresponding to OEM part numbers 22651246 and 23615631. Each anode features a two-piece circular collar construction with mounting holes and measures 141 mm in overall length (l), 40 mm in height (h) and 75.6 mm in dimension (i). The catalogue specifies diameters of 110 mm (Ø), 46 mm (Ø1) and 90 mm (Ø2). Available in zinc (00734-1, 1.43 kg), aluminium (00734-1AL, 0.56 kg) and magnesium (00734-1MG, 0.36 kg), these anodes provide sacrificial corrosion protection for compatible saildrive components. All three versions share identical dimensions and mounting geometry.

Description
Ask a Question

Tecnoseal 22651246 23615631 Volvo Penta 130S 150S Saildrive Split Collar Anode 141 mm

The Tecnoseal 00734-1 series includes sacrificial split collar anodes designed for Volvo Penta 130S and 150S saildrives. These anodes correspond to Volvo Penta OEM part numbers 22651246 and 23615631 and help protect submerged metallic saildrive components against galvanic corrosion.

Three material versions are available: zinc (00734-1), aluminium (00734-1AL) and magnesium (00734-1MG). The corresponding Osculati cross-references are 43.532.00, 43.532.10 and 43.532.11, respectively.

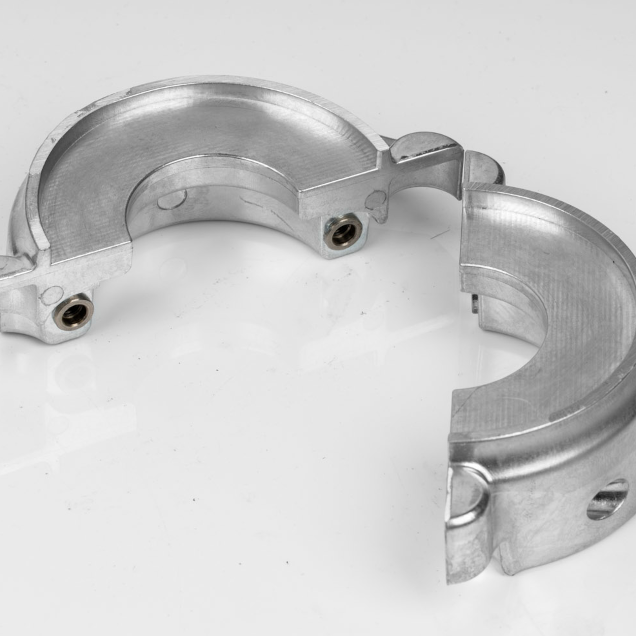

Each anode features a two-piece circular split collar construction with mounting holes. All three variants share identical dimensions and mounting geometry, allowing the material to be selected according to the requirements of the corrosion protection system.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Saildrive Split Collar Anode
Compatible Manufacturer	Volvo Penta
Compatible Saildrives	130S, 150S
Volvo Penta OEM References	22651246, 23615631
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	141 mm (5.55 in)
Height (h)	40 mm (1.57 in)
Dimension (i)	75.6 mm (2.98 in)
Diameter (Ø)	110 mm (4.33 in)
Diameter (Ø1)	46 mm (1.81 in)
Diameter (Ø2)	90 mm (3.54 in)

Available Variants and Osculati Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference	EAN
00734-1	Zinc	1.43 kg (3.15 lbs)	43.532.00	8059617813390
00734-1AL	Aluminium	0.56 kg (1.23 lbs)	43.532.10	8058774832343
00734-1MG	Magnesium	0.36 kg (0.79 lbs)	43.532.11	8058774839670

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Saildrives: 130S, 150S
Volvo Penta OEM: 22651246, 23615631
Zinc: Tecnoseal 00734-1 – Osculati 43.532.00
Aluminium: Tecnoseal 00734-1AL – Osculati 43.532.10
Magnesium: Tecnoseal 00734-1MG – Osculati 43.532.11

Split Collar Construction and Dimensions

The Tecnoseal 00734-1 series features a two-piece circular collar design with mounting holes for installation on compatible Volvo Penta saildrive assemblies.

The manufacturer specifies the following dimensions for all three material variants:

Overall length (l): 141 mm (5.55 in)
Height (h): 40 mm (1.57 in)
Dimension (i): 75.6 mm (2.98 in)
Diameter (Ø): 110 mm (4.33 in)
Diameter (Ø1): 46 mm (1.81 in)
Diameter (Ø2): 90 mm (3.54 in)

These dimensions and the mounting geometry are identical across the zinc, aluminium and magnesium versions.

Sacrificial Corrosion Protection

The anodes are intended to help protect compatible submerged metallic saildrive components against galvanic corrosion. Sacrificial anode material corrodes preferentially when the anode is correctly installed and electrically connected to the components requiring protection.

The series is available in three materials to accommodate different corrosion protection requirements:

Zinc: Commonly used in saltwater corrosion protection systems.
Aluminium: Used in suitable marine corrosion protection applications, including saltwater and certain brackish-water conditions.
Magnesium: Generally selected for freshwater corrosion protection applications.

The appropriate material should be selected according to the operating water conditions and the equipment manufacturer's recommendations.

Inspection and Replacement

Inspect the split collar anode during routine saildrive maintenance. Replace it when the sacrificial material becomes significantly depleted, physically damaged or no longer securely mounted.

Before ordering, verify the Volvo Penta OEM reference, compatible saildrive model and mounting dimensions against the existing component.

Scope of Supply

1 × Tecnoseal Volvo Penta 130S / 150S Saildrive Split Collar Anode in the selected material.
