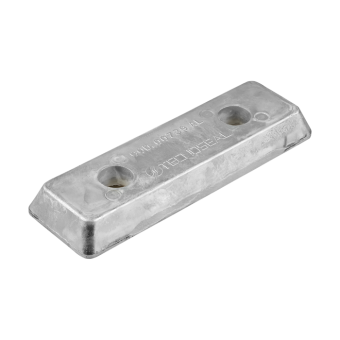

Tecnoseal 23172846 40005875 3889901 Volvo Penta IPS1 IPS2 IPS3 IPS15 Transom Plate Anode

Name: Tecnoseal 23172846 40005875 3889901 Volvo Penta IPS1 IPS2 IPS3 IPS15 Transom Plate Anode
SKU: Tecnoseal 00739

ID 1405336

$ 186.68

1-2 weeks delivery time

Type:

Zinc
Aluminium

Size:

267x85x30
417x133x49

Item:

IPS1 3.50 kg
IPS1 1.55 kg
IPS2/IPS3/IPS15 15.00 kg
IPS2/IPS3/IPS15 6.62 kg

The Tecnoseal 00739 series consists of sacrificial transom plate anodes for Volvo Penta IPS drive systems, with OEM references 23172846, 40005875 and 3889901. Four variants are available in two sizes: 00739 (zinc, 3.50 kg) and 00739AL (aluminium, 1.55 kg) for IPS1 drives, measuring 267 × 85 × 30 mm with mounting hole spacing (i) of 138 mm; and 00739-1 (zinc, 15.00 kg) and 00739-1AL (aluminium, 6.62 kg) for IPS2, IPS3 and IPS15 drives, measuring 417 × 133 × 49 mm with mounting hole spacing (i) of 238 mm. Each anode features an elongated rectangular body with two recessed mounting holes and provides sacrificial corrosion protection for compatible Volvo Penta IPS drive components. The dimensions and mounting configuration differ between the two sizes.

Description
Ask a Question

Tecnoseal Volvo Penta IPS1 IPS2 IPS3 IPS15 Transom Plate Anode 23172846 40005875 3889901

The Tecnoseal 00739 series includes sacrificial transom plate anodes designed for Volvo Penta IPS drive systems. The catalogue lists OEM references 23172846, 40005875 and 3889901. These anodes provide galvanic corrosion protection for compatible submerged metallic drive components. Four variants are available, covering two different mounting sizes in zinc and aluminium.

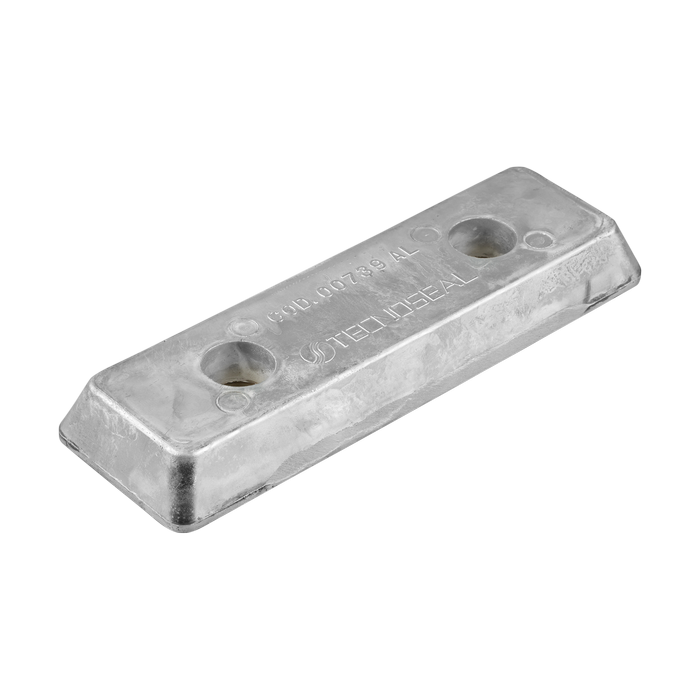

The smaller 00739 and 00739AL versions are designed for Volvo Penta IPS1 drives and measure 267 mm in length, 85 mm in width and 30 mm in height, with mounting hole spacing of 138 mm. The larger 00739-1 and 00739-1AL versions are intended for Volvo Penta IPS2, IPS3 and IPS15 drives and measure 417 mm in length, 133 mm in width and 49 mm in height, with mounting hole spacing of 238 mm. All versions feature an elongated plate-shaped body with two recessed mounting holes. Dimensions and mounting geometry differ between the two sizes.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Plate Anode
Compatible Manufacturer	Volvo Penta
Compatible Drives	IPS1, IPS2, IPS3, IPS15
OEM References	23172846, 40005875, 3889901
Available Materials	Zinc, Aluminium
Available Sizes (L × W × H)	267 × 85 × 30 mm; 417 × 133 × 49 mm

Dimensions by Drive Model

Specification	IPS1	IPS2 / IPS3 / IPS15
Length (l)	267 mm (10.51 in)	417 mm (16.42 in)
Width (a)	85 mm (3.35 in)	133 mm (5.24 in)
Height (h)	30 mm (1.18 in)	49 mm (1.93 in)
Mounting Hole Spacing (i)	138 mm (5.43 in)	238 mm (9.37 in)

Available Variants

Tecnoseal Code	Material	Compatible Drive	Weight	EAN
00739	Zinc	IPS1	3.50 kg (7.72 lbs)	8059617818166
00739AL (Osculati 43.511.01)	Aluminium	IPS1	1.55 kg (3.42 lbs)	8033837069034
00739-1	Zinc	IPS2, IPS3, IPS15	15.00 kg (33.07 lbs)	8058774839014
00739-1AL	Aluminium	IPS2, IPS3, IPS15	6.62 kg (14.59 lbs)	8052744983554

Compatibility and References

Compatible Manufacturer: Volvo Penta
IPS1 Drives: Tecnoseal 00739 (zinc), 00739AL (aluminium)
IPS2, IPS3 and IPS15 Drives: Tecnoseal 00739-1 (zinc), 00739-1AL (aluminium)
Catalogue OEM References: 23172846, 40005875, 3889901

Key Features

Sacrificial transom plate anodes for compatible Volvo Penta IPS drives.
Available in zinc and aluminium versions.
Helps protect submerged metallic drive components against galvanic corrosion.
Elongated plate-shaped body with two recessed mounting holes.
Two sizes for different Volvo Penta IPS drive applications.
IPS1 dimensions: 267 × 85 × 30 mm.
IPS2, IPS3 and IPS15 dimensions: 417 × 133 × 49 mm.
Mounting hole spacing: 138 mm or 238 mm, depending on version.
Weights range from 1.55 kg to 15.00 kg.

Compatibility Note: Select the correct anode according to the Volvo Penta IPS drive model and material. Verify the OEM reference and mounting dimensions against the existing anode before ordering. The two sizes are not dimensionally interchangeable.
