Tecnoseal 3589875 Volvo Penta DPR Cavitation Plate Anode 133 mm

ID 1405304

$ 80.10

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

210 g
320 g
820 g

The Tecnoseal 00733-1 series consists of sacrificial cavitation plate anodes designed for Volvo Penta DPR sterndrives, corresponding to OEM part number 3589875. Each anode features a tapered plate-shaped body with two recessed mounting holes and measures 133 mm in length (l), 76 mm in width (a) and 28 mm in height (h). Additional dimensions include b = 46 mm, mounting hole spacing (i) = 35 mm, counterbore diameter (Ø) = 14 mm and through-hole diameter (Ø1) = 9 mm. Available in zinc (00733-1, 820 g), aluminium (00733-1AL, 320 g) and magnesium (00733-1MG, 210 g), these anodes help protect compatible Volvo Penta DPR sterndrive components against galvanic corrosion. All three versions share identical dimensions and mounting geometry.

Description
Ask a Question

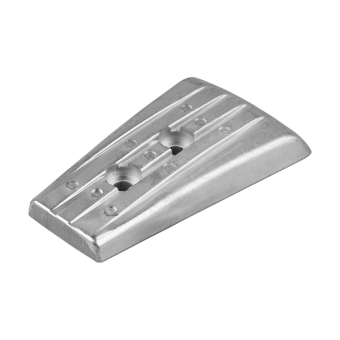

Tecnoseal 3589875 Volvo Penta DPR Cavitation Plate Anode 133 mm

The Tecnoseal 00733-1 series includes sacrificial cavitation plate anodes designed for compatibility with Volvo Penta DPR sterndrives. These anodes correspond to Volvo Penta OEM part number 3589875 and help protect submerged metallic sterndrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.554.14, 43.554.44 and 43.554.54, respectively.

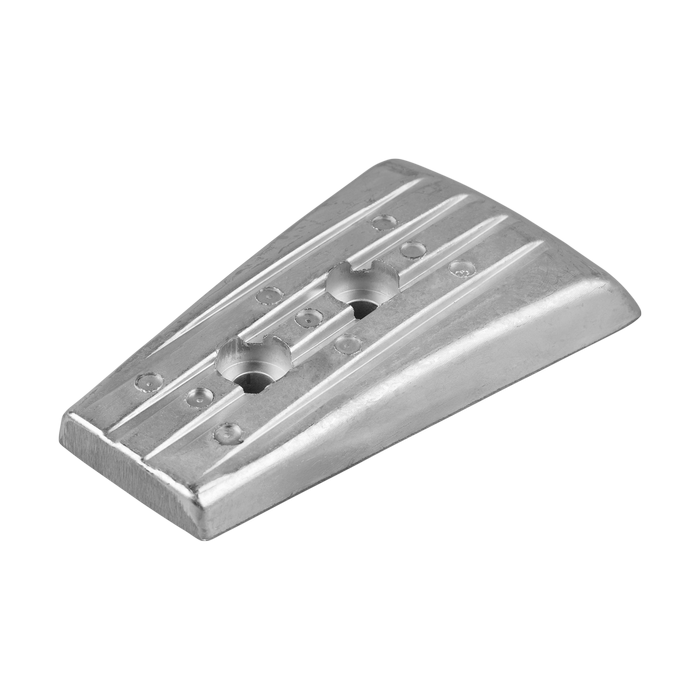

Each anode features a tapered plate-shaped body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 133 mm in length (l), 76 mm in width (a) and 28 mm in height (h). The additional dimension (b) is 46 mm, while the mounting hole spacing (i) is 35 mm. The recessed mounting holes feature a 14 mm counterbore diameter (Ø) and a 9 mm through-hole diameter (Ø1). All three versions share identical dimensions and mounting geometry, with different weights according to the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Cavitation Plate Anode
Compatible Manufacturer	Volvo Penta
Compatible Sterndrive	DPR
Volvo Penta OEM Reference	3589875
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	133 mm (5.24 in)
Width (a)	76 mm (2.99 in)
Additional Dimension (b)	46 mm (1.81 in)
Height (h)	28 mm (1.10 in)
Mounting Hole Spacing (i)	35 mm (1.38 in)
Counterbore Diameter (Ø)	14 mm (0.55 in)
Through-Hole Diameter (Ø1)	9 mm (0.35 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00733-1	Zinc	0.82 kg (1.81 lbs)	43.554.14
00733-1AL	Aluminium	0.32 kg (0.71 lbs)	43.554.44
00733-1MG	Magnesium	0.21 kg (0.46 lbs)	43.554.54

Product Codes and EAN

Tecnoseal Code	EAN
00733-1	8059617815219
00733-1AL	8059617815226
00733-1MG	8059617815233

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Sterndrive: DPR
Volvo Penta OEM Reference: 3589875
Zinc Version: Tecnoseal 00733-1 / Osculati 43.554.14
Aluminium Version: Tecnoseal 00733-1AL / Osculati 43.554.44
Magnesium Version: Tecnoseal 00733-1MG / Osculati 43.554.54

Key Features

Sacrificial cavitation plate anode for Volvo Penta DPR sterndrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Tapered plate-shaped body with two recessed mounting holes.
Length: 133 mm.
Width: 76 mm.
Additional dimension (b): 46 mm.
Height: 28 mm.
Mounting hole spacing: 35 mm.
Counterbore diameter: 14 mm.
Through-hole diameter: 9 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 3589875.
Osculati cross-references: 43.554.14 (zinc), 43.554.44 (aluminium) and 43.554.54 (magnesium).

Compatibility Note: Verify OEM part number 3589875 and the mounting dimensions against the existing Volvo Penta DPR sterndrive anode before ordering.
