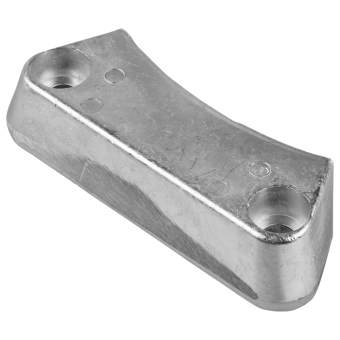

Tecnoseal 3588745 3588770 3588768 Volvo Penta DPH DPR Transom Bar Anode 118 mm

ID 1405324

$ 43.62

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

200 g
130 g
490 g

The Tecnoseal 00735 series consists of sacrificial transom bar anodes designed for Volvo Penta DPH and DPR sterndrives, corresponding to OEM part numbers 3588745, 3588770 and 3588768. Each anode features a curved bar-shaped body with two recessed mounting holes and measures 118 mm in length (l), 37 mm in width (a) and 25 mm in height (h). Additional catalogue dimensions include b = 101 mm, c = 85 mm and mounting hole spacing (i) = 86 mm, with hole diameters of 9.50 mm (Ø) and 15 mm (Ø1). Available in zinc (00735, 0.49 kg), aluminium (00735AL, 0.20 kg) and magnesium (00735MG, 0.13 kg), these anodes provide sacrificial corrosion protection for compatible Volvo Penta sterndrive components. All three material versions have identical dimensions and mounting geometry.

Description
Ask a Question

Tecnoseal 3588745 3588770 3588768 Volvo Penta DPH DPR Transom Bar Anode 118 mm

The Tecnoseal 00735 series includes sacrificial transom bar anodes designed for compatibility with Volvo Penta DPH and DPR sterndrives. These anodes correspond to Volvo Penta OEM part numbers 3588745, 3588770 and 3588768 and help protect submerged metallic sterndrive components against galvanic corrosion. Three material versions are available: zinc, aluminium and magnesium, with corresponding Osculati references 43.554.15, 43.554.28 and 43.554.19.

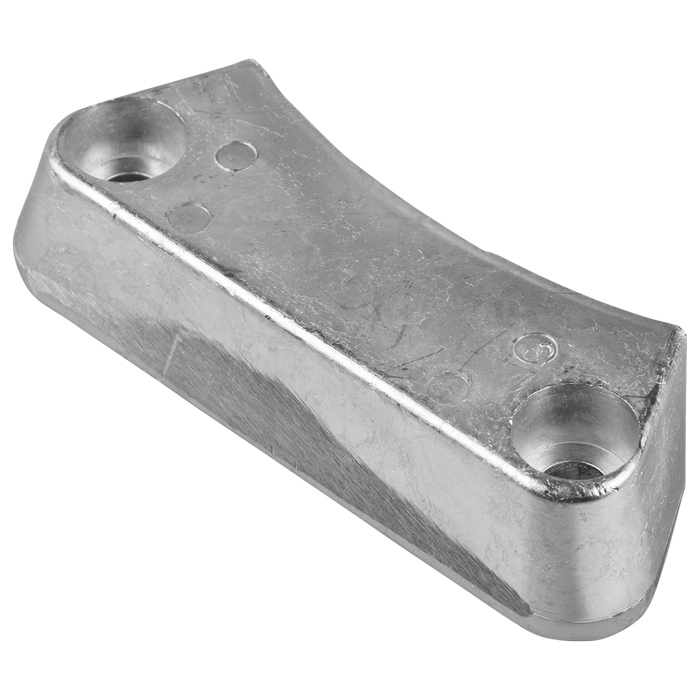

Each anode features a curved bar-shaped body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 118 mm in overall length (l), 37 mm in width (a) and 25 mm in height (h). Additional dimensions are b = 101 mm and c = 85 mm. The mounting hole spacing (i) is 86 mm, with a 9.50 mm hole diameter (Ø) and a 15 mm recess diameter (Ø1). All three material versions share identical dimensions and mounting geometry, with different weights depending on the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Bar Anode
Compatible Manufacturer	Volvo Penta
Compatible Sterndrives	DPH, DPR
Volvo Penta OEM References	3588745, 3588770, 3588768
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	118 mm (4.65 in)
Width (a)	37 mm (1.46 in)
Dimension (b)	101 mm (3.98 in)
Dimension (c)	85 mm (3.35 in)
Height (h)	25 mm (0.98 in)
Mounting Hole Spacing (i)	86 mm (3.39 in)
Hole Diameter (Ø)	9.50 mm (0.37 in)
Recess Diameter (Ø1)	15 mm (0.59 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00735	Zinc	0.49 kg (1.08 lbs)	43.554.15
00735AL	Aluminium	0.20 kg (0.44 lbs)	43.554.28
00735MG	Magnesium	0.13 kg (0.29 lbs)	43.554.19

Product Codes and EAN

Tecnoseal Code	EAN
00735	8033837064183
00735AL	8059617815288
00735MG	8059617815295

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Sterndrives: DPH, DPR
Volvo Penta OEM References: 3588745, 3588770, 3588768
Zinc Version: Tecnoseal 00735 / Osculati 43.554.15
Aluminium Version: Tecnoseal 00735AL / Osculati 43.554.28
Magnesium Version: Tecnoseal 00735MG / Osculati 43.554.19

Key Features

Sacrificial transom bar anode for compatible Volvo Penta DPH and DPR sterndrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Curved bar-shaped body with two recessed mounting holes.
Overall length: 118 mm.
Width: 37 mm.
Height: 25 mm.
Additional dimensions: b = 101 mm and c = 85 mm.
Mounting hole spacing: 86 mm.
Hole diameter: 9.50 mm.
Recess diameter: 15 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM references: 3588745, 3588770, 3588768.
Osculati cross-references: 43.554.15 (zinc), 43.554.28 (aluminium), 43.554.19 (magnesium).

Compatibility Note: Verify the Volvo Penta OEM references and mounting dimensions against the existing DPH or DPR sterndrive anode before ordering.
