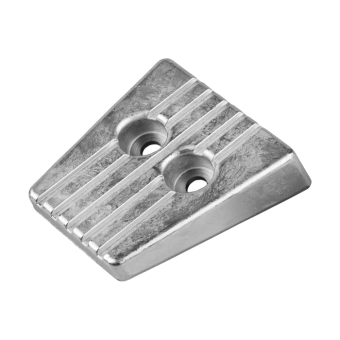

Tecnoseal 3888817 3888816 3888818 Volvo Penta DPS-A DPS-B FWD Transom Plate Anode

ID 1405331

$ 71.93

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

450 g
290 g
1.13 kg

The Tecnoseal 00737 series consists of sacrificial transom plate anodes designed for Volvo Penta DPS-A, DPS-B and FWD sterndrives, corresponding to OEM references 3888817, 3888816 and 3888818. Each anode features a tapered plate-shaped body with recessed mounting holes and measures 90 mm in length (l), 100 mm in width (a) and 28 mm in height (h). Additional catalogue dimensions include l1 = 61 mm, h1 = 14 mm, mounting hole spacing (i) = 30 mm, recess diameter (Ø) = 21 mm and mounting hole diameter (Ø1) = 9 mm. Available in zinc (00737, 1.13 kg), aluminium (00737AL, 0.45 kg) and magnesium (00737MG, 0.29 kg), these anodes provide sacrificial corrosion protection for compatible Volvo Penta sterndrive components. All three versions share identical dimensions and mounting geometry.

Description
Ask a Question

Tecnoseal 3888817 3888816 3888818 Volvo Penta DPS-A DPS-B FWD Transom Plate Anode

The Tecnoseal 00737 series includes sacrificial transom plate anodes designed for compatibility with Volvo Penta DPS-A, DPS-B and FWD sterndrives. These anodes correspond to Volvo Penta OEM references 3888817, 3888816 and 3888818 and help protect submerged metallic sterndrive components against galvanic corrosion. Three material versions are available: zinc, aluminium and magnesium, with corresponding Osculati references 43.554.02, 43.554.22 and 43.554.23.

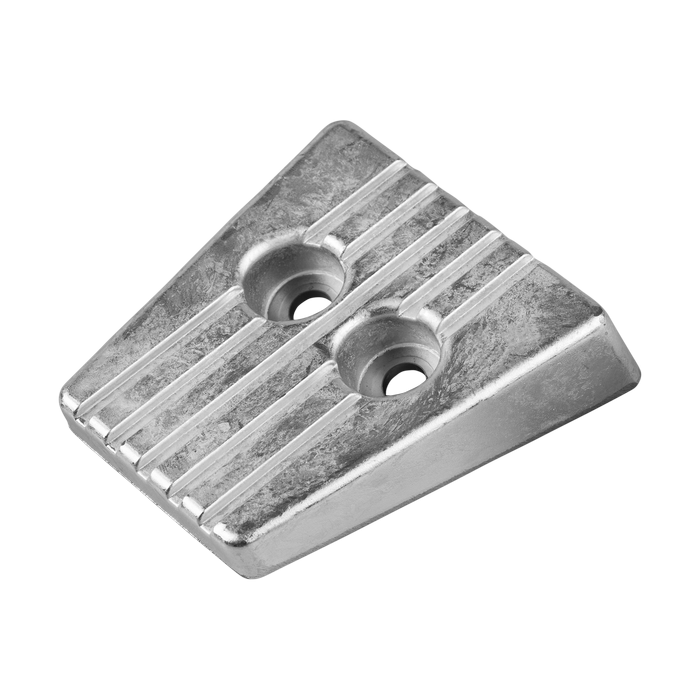

Each anode features a tapered plate-shaped body with recessed mounting holes. According to the Tecnoseal catalogue, it measures 90 mm in length (l), 100 mm in width (a) and 28 mm in height (h). Additional dimensions include l1 = 61 mm and h1 = 14 mm. The mounting hole spacing (i) is 30 mm, with a recess diameter (Ø) of 21 mm and a mounting hole diameter (Ø1) of 9 mm. All three material versions share identical dimensions and mounting geometry, with different weights depending on the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Plate Anode
Compatible Manufacturer	Volvo Penta
Compatible Sterndrives	DPS-A, DPS-B, FWD
Volvo Penta OEM References	3888817, 3888816, 3888818
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	90 mm (3.54 in)
Dimension (l1)	61 mm (2.40 in)
Width (a)	100 mm (3.94 in)
Height (h)	28 mm (1.10 in)
Height (h1)	14 mm (0.55 in)
Mounting Hole Spacing (i)	30 mm (1.18 in)
Recess Diameter (Ø)	21 mm (0.83 in)
Mounting Hole Diameter (Ø1)	9 mm (0.35 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00737	Zinc	1.13 kg (2.49 lbs)	43.554.02
00737AL	Aluminium	0.45 kg (0.99 lbs)	43.554.22
00737MG	Magnesium	0.29 kg (0.64 lbs)	43.554.23

Product Codes and EAN

Tecnoseal Code	EAN
00737	8033837068501
00737AL	8059617815301
00737MG	8059617815318

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Sterndrives: DPS-A, DPS-B, FWD
Volvo Penta OEM References: 3888817, 3888816, 3888818
Zinc Version: Tecnoseal 00737 / Osculati 43.554.02
Aluminium Version: Tecnoseal 00737AL / Osculati 43.554.22
Magnesium Version: Tecnoseal 00737MG / Osculati 43.554.23

Key Features

Sacrificial transom plate anode for compatible Volvo Penta DPS-A, DPS-B and FWD sterndrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Tapered plate-shaped body with recessed mounting holes.
Length: 90 mm.
Width: 100 mm.
Height: 28 mm.
Additional dimensions: l1 = 61 mm and h1 = 14 mm.
Mounting hole spacing: 30 mm.
Recess diameter: 21 mm.
Mounting hole diameter: 9 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM references: 3888817, 3888816 and 3888818.
Osculati cross-references: 43.554.02 (zinc), 43.554.22 (aluminium), 43.554.23 (magnesium).

Compatibility Note: Verify the Volvo Penta OEM reference and mounting dimensions against the existing sterndrive transom plate anode before ordering.
