Tecnoseal 3588746 Volvo Penta DPH Cavitation Plate Anode 133 mm

ID 1405300

$ 84.31

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

330 g
860 g
210 g

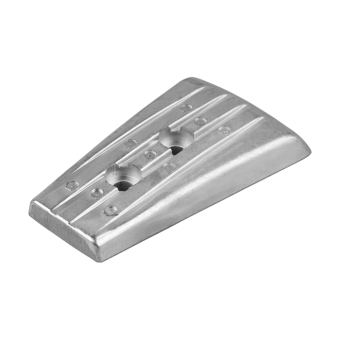

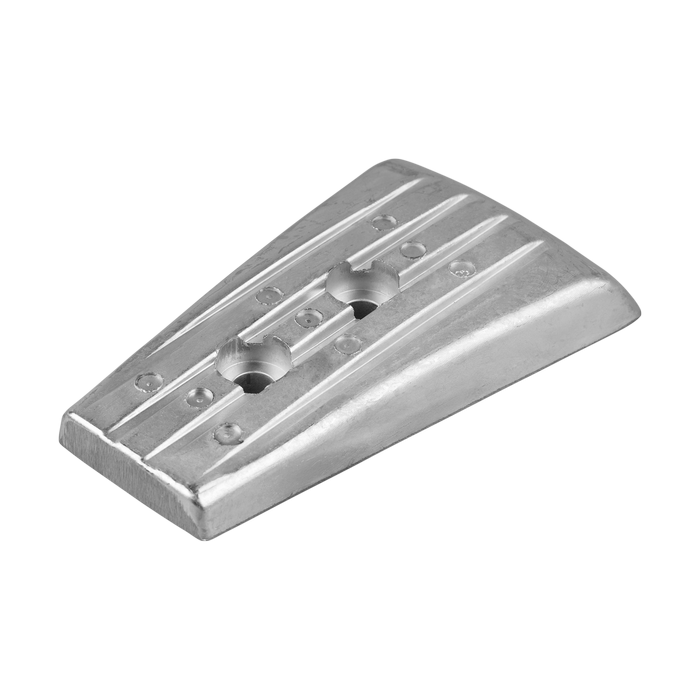

The Tecnoseal 00733 series consists of sacrificial cavitation plate anodes designed for Volvo Penta DPH sterndrives, corresponding to OEM part number 3588746. Each anode features a tapered plate-shaped body with two recessed mounting holes and measures 133 mm in length (l), 76 mm in width (a) and 35 mm in height (h). Additional dimensions include b = 46 mm, mounting hole spacing (i) = 35 mm, counterbore diameter (Ø) = 14 mm and through-hole diameter (Ø1) = 9 mm. Available in zinc (00733, 860 g), aluminium (00733AL, 330 g) and magnesium (00733MG, 210 g), these anodes provide sacrificial corrosion protection for compatible Volvo Penta DPH sterndrive components. All three versions share identical dimensions and mounting geometry.

Description
Ask a Question

Tecnoseal 3588746 Volvo Penta DPH Cavitation Plate Anode 133 mm

The Tecnoseal 00733 series includes sacrificial cavitation plate anodes designed for compatibility with Volvo Penta DPH sterndrives. These anodes correspond to Volvo Penta OEM part number 3588746 and help protect submerged metallic sterndrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.554.13, 43.554.33 and 43.554.34, respectively.

Each anode features a tapered plate-shaped body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 133 mm in length (l), 76 mm in width (a) and 35 mm in height (h). The additional width dimension (b) is 46 mm. The mounting hole spacing (i) is 35 mm, with a 14 mm counterbore diameter (Ø) and a 9 mm through-hole diameter (Ø1). All three material versions share identical dimensions and mounting geometry, with different weights depending on the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Cavitation Plate Anode
Compatible Manufacturer	Volvo Penta
Compatible Sterndrive	DPH
Volvo Penta OEM Reference	3588746
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	133 mm (5.24 in)
Width (a)	76 mm (2.99 in)
Additional Width (b)	46 mm (1.81 in)
Height (h)	35 mm (1.38 in)
Mounting Hole Spacing (i)	35 mm (1.38 in)
Counterbore Diameter (Ø)	14 mm (0.55 in)
Through-Hole Diameter (Ø1)	9 mm (0.35 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00733	Zinc	0.86 kg (1.90 lbs)	43.554.13
00733AL	Aluminium	0.33 kg (0.73 lbs)	43.554.33
00733MG	Magnesium	0.21 kg (0.46 lbs)	43.554.34

Product Codes and EAN

Tecnoseal Code	EAN
00733	8033837064169
00733AL	8059617815196
00733MG	8059617815202

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Sterndrive: DPH
Volvo Penta OEM Reference: 3588746
Zinc Version: Tecnoseal 00733 / Osculati 43.554.13
Aluminium Version: Tecnoseal 00733AL / Osculati 43.554.33
Magnesium Version: Tecnoseal 00733MG / Osculati 43.554.34

Key Features

Sacrificial cavitation plate anode for compatible Volvo Penta DPH sterndrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Tapered plate-shaped body with two recessed mounting holes.
Length: 133 mm.
Width: 76 mm.
Additional width: 46 mm.
Height: 35 mm.
Mounting hole spacing: 35 mm.
Counterbore diameter: 14 mm.
Through-hole diameter: 9 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 3588746.
Osculati cross-references: 43.554.13 (zinc), 43.554.33 (aluminium), 43.554.34 (magnesium).

Compatibility Note: Verify OEM part number 3588746 and the mounting dimensions against the existing Volvo Penta DPH sterndrive anode before ordering.
